PRODUCT

ATV-049B-Y Inquiry
specitification

Item No
ATV-049B-Y
Engine49cc two stroke, single -cylinder, Air cooled
Bore & Stroke44*33mm
StartingPull start
DriveChian Drive
TransmissionAutomatic, Single Forward
SuspensionDual shock absorber.Single shock absorber
BrakeDual Disc brake,Singlle Disc Brake
Tyre4.10-4;4.10-4 (4 inch)
Fuel Tank0.9 L Plastic Tank
Seat Heigh47cm
Wheelbase68cm
Ground Clearance5cm
Max. Loading50kgs
Max. Speed25km/h
Product Size101*62*63 cm
Packing Size105*58*53 cm
G.W./N.W.34/29.6 Kgs
Brake Distance≤ 5m at 20 Km/h
Container Loading88 Pieces/20"FT; 230 Pieces/40"HQ


Selling Points of the product

The 49cc two stroke ATV,

it’s 49cc two stroke, single cylinder, air-cooled.

The 49cc ATV drive is chain with chain tension and protector.

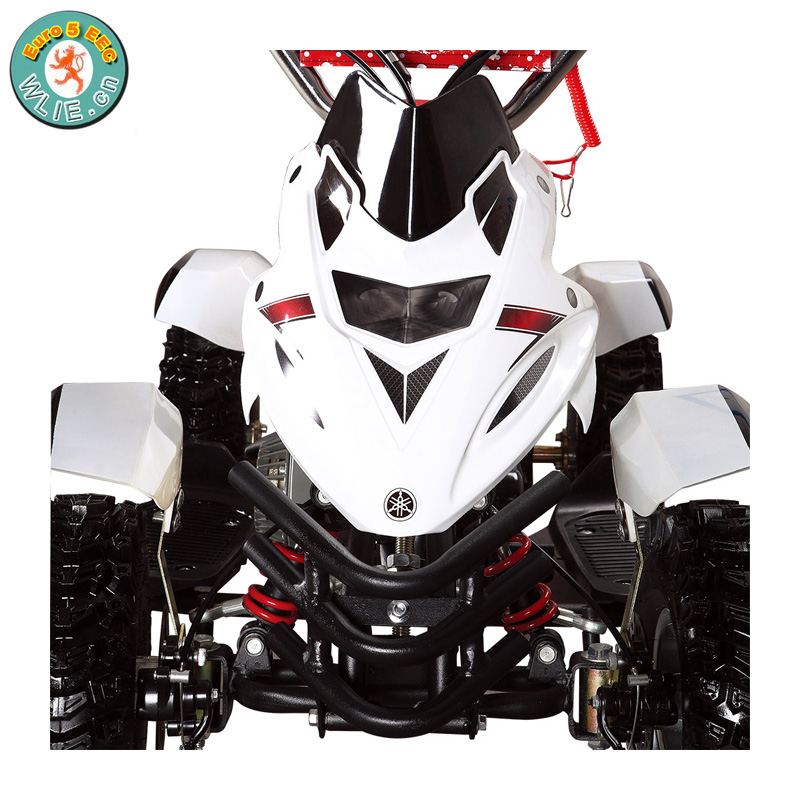

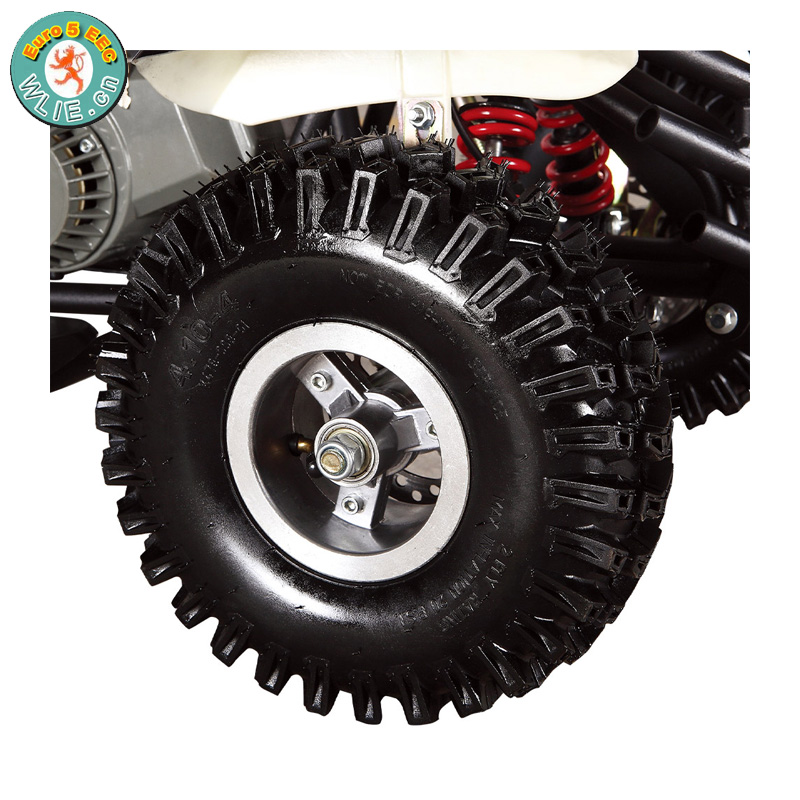

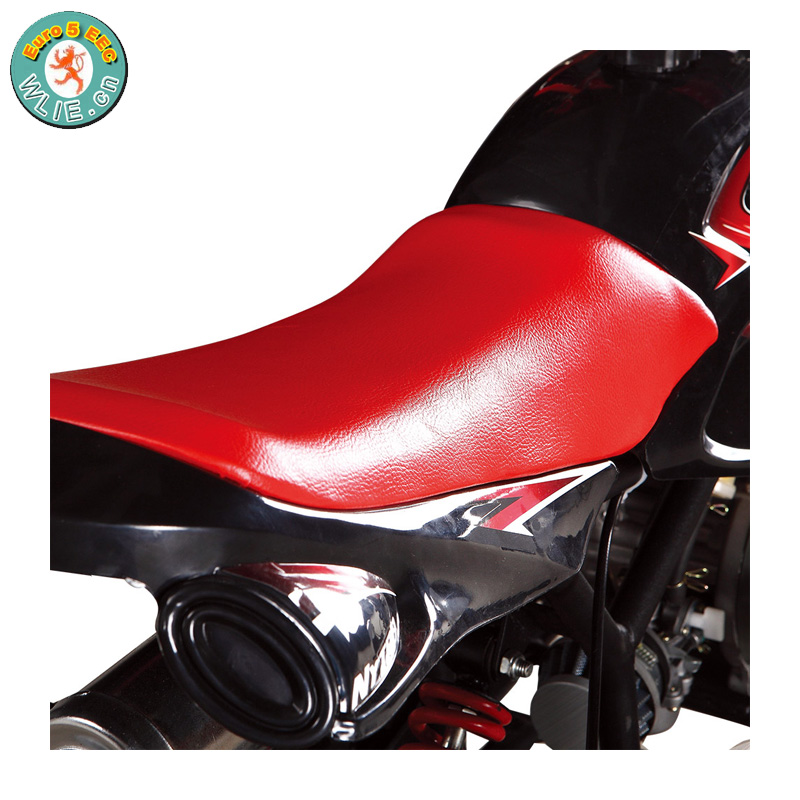

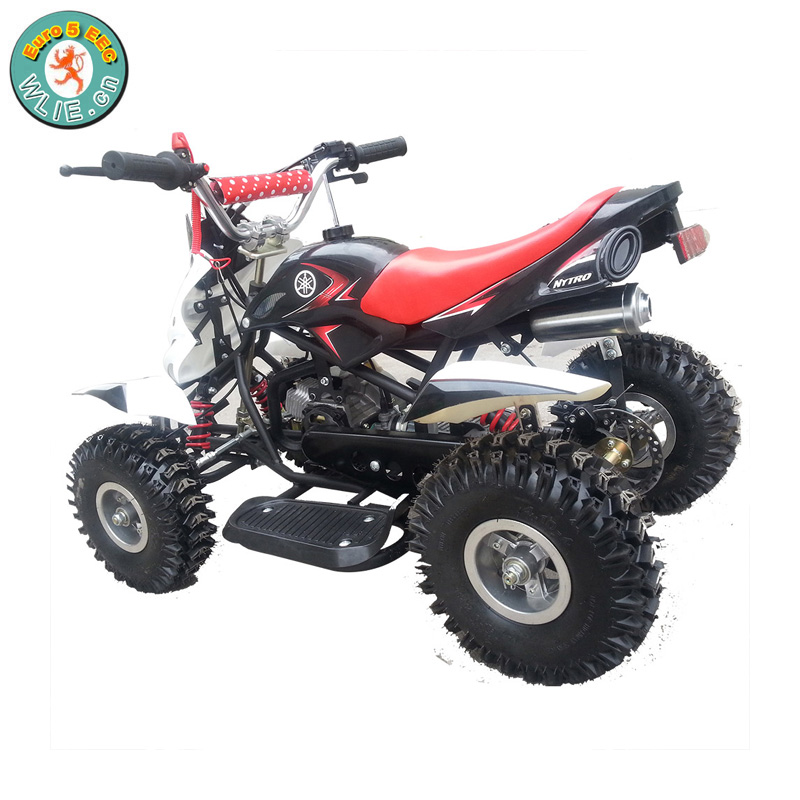

More pics of the product
