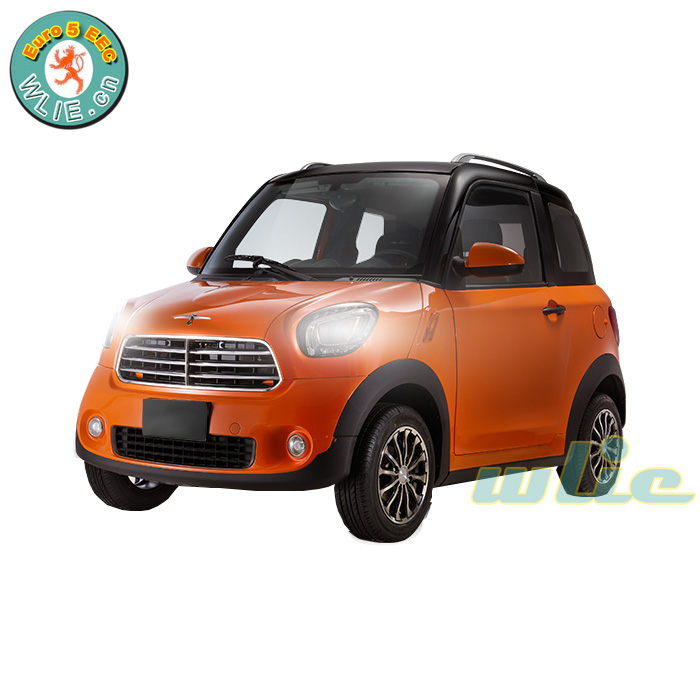

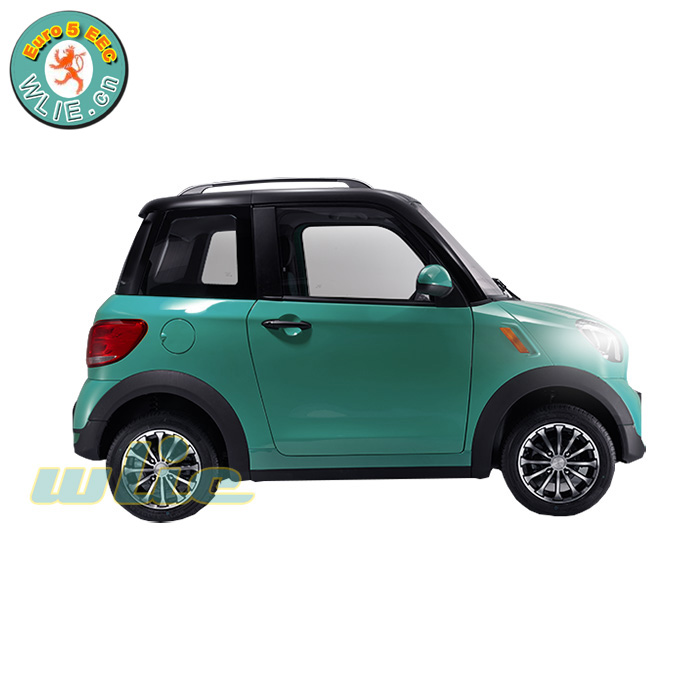

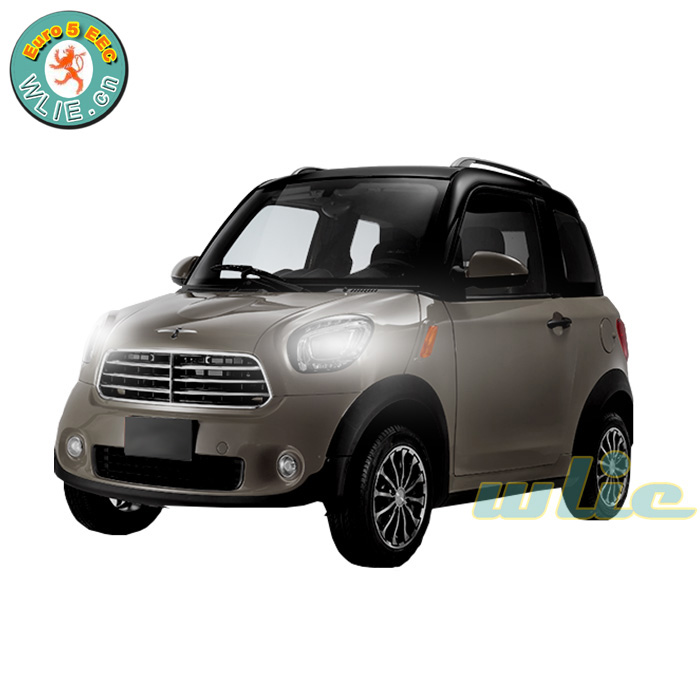

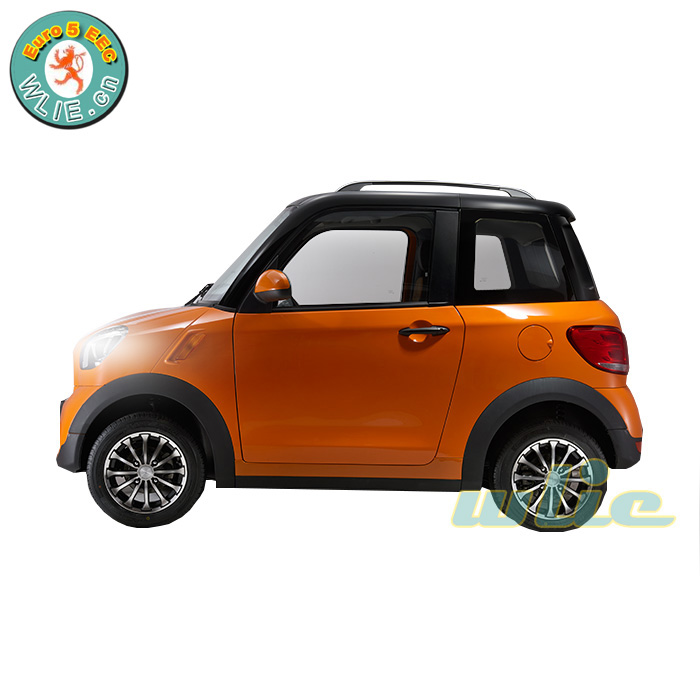

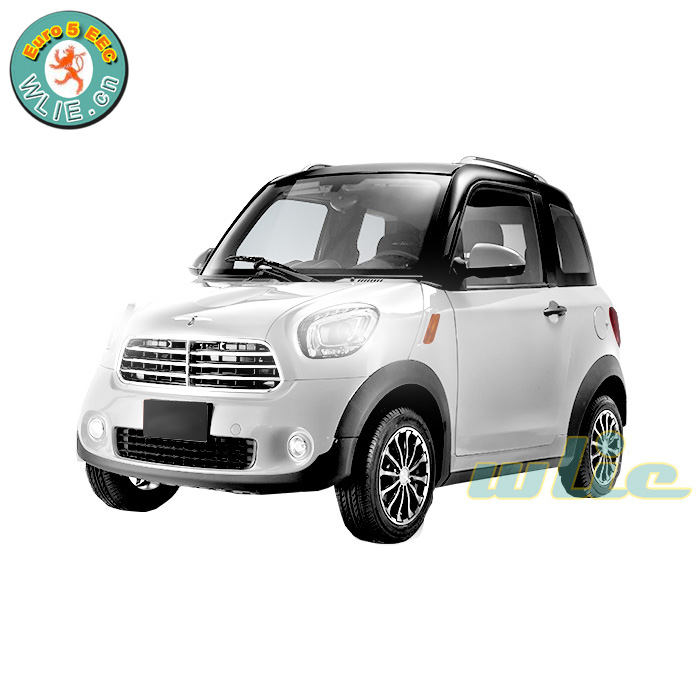

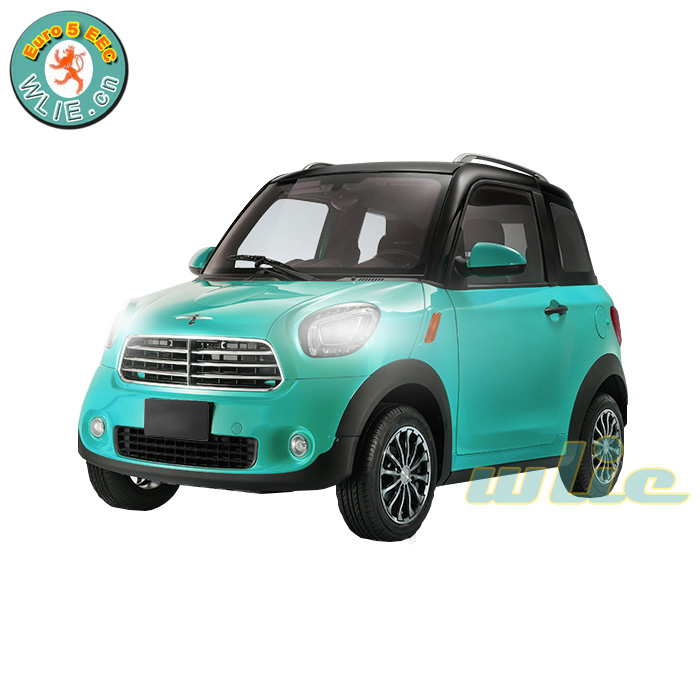

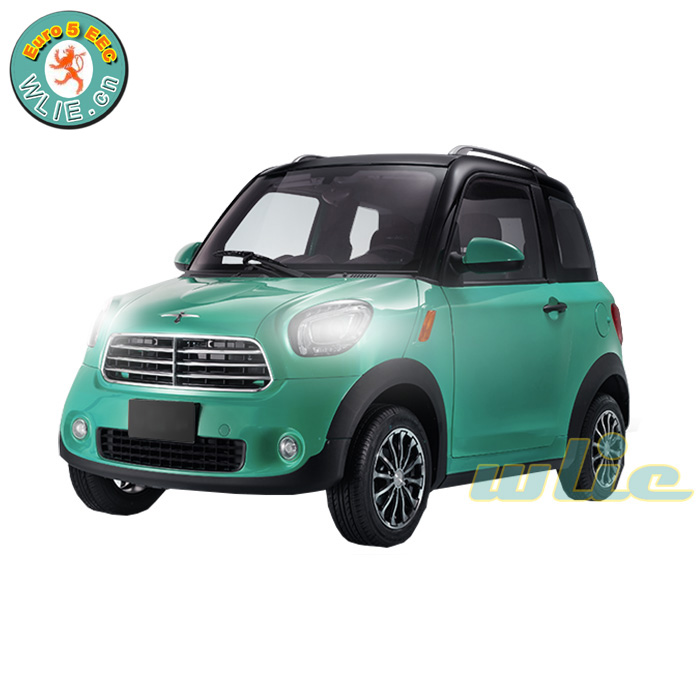

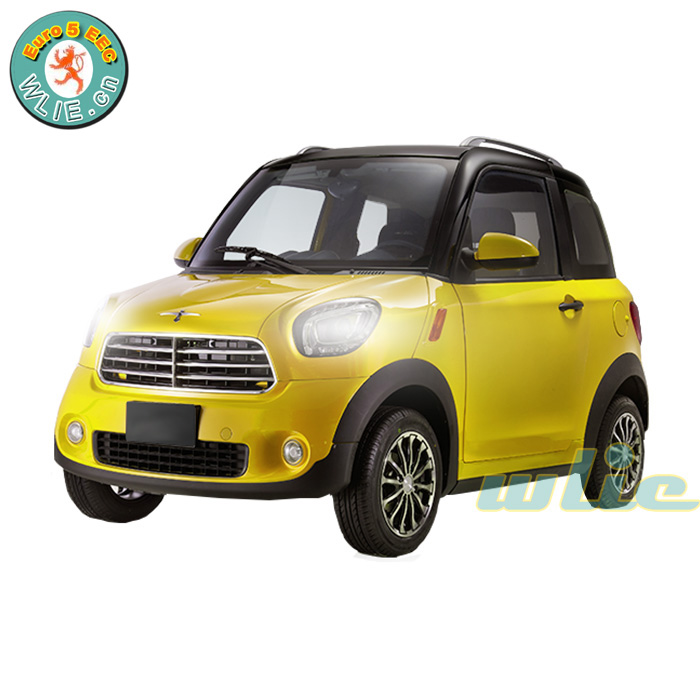

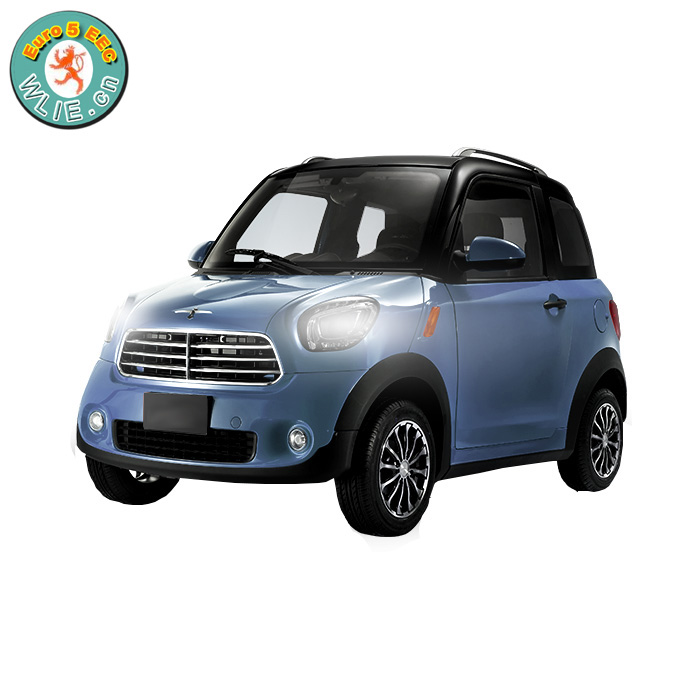

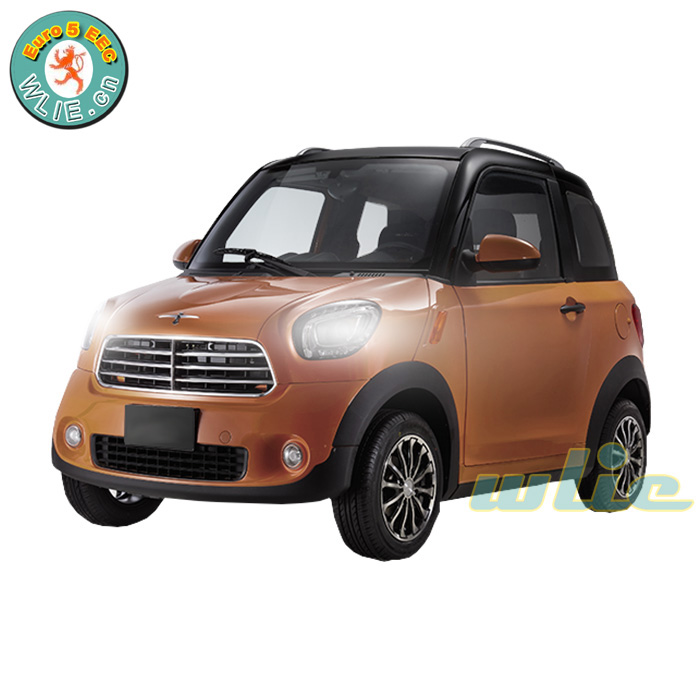

M1 (4-seats) Inquiry |
Model | 72V DC (Lead Acid 120Ah) | 72V DC (Lithium 150Ah) |
EEC Certificate | L7e-CU | |
Charging Voltage | 220V / 110V | |
Speed | MAX.: 50KM/H | |
L×W×H(mm) | 2830x1500x1565 | 2830x1500x1565 |
Wheel base(mm) | 1815 | 1815 |
Wheel track(mm) | 1285/1330 | 1285/1330 |
Min. ground clearance(mm) | 165 | 165 |
Min.turning radius(m) | 4.4 | 4.4 |
Unladen mass(kg) | 835 | 650 |
Passenger | 2 | 2 |
Wheel size | 155/65 R13 | 155/65 R13 |
System voltage | 72 | 72 |
Battery capacity(Ah) | 120 | 150 |
Battery | 6-EVF-120A | Li(NiCoMn)O2 / LiFePO4 |
Motor type | AC Asynchronous / PMSM | PMSM |
Rated power(Kw) | 4/4.5 | 4.5 |
Intelligent protection of controller | ● | ● |
Failure indication of driving system | ● | ● |
Power output mode | Economic/sporty | |
Speed ratio of reducer | 10:01 | 10:01 |
Maximum speed | 50 | 50 |
Max.endurance mileage(km) | 150 | 150 |
Operating mileage | 110 | 130 |
Mileage using air-conditioner | reduce by 25~30% | |
Gradeability | DC:>20% | >20% |
Prevent slipping | ● | ● |
Power consumption (kw.h/100km) | 8—10 | 8—10 |
Charging time(h) | 8—10 | 6—8 |

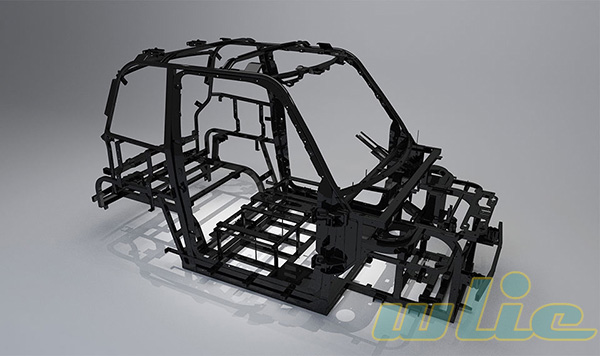

Frame type | Load bearing frame structure | |
Foldable rear-view mirror | ● | ● |
Aluminum wheel | ● | ● |
LED digital instrument | ● | ● |

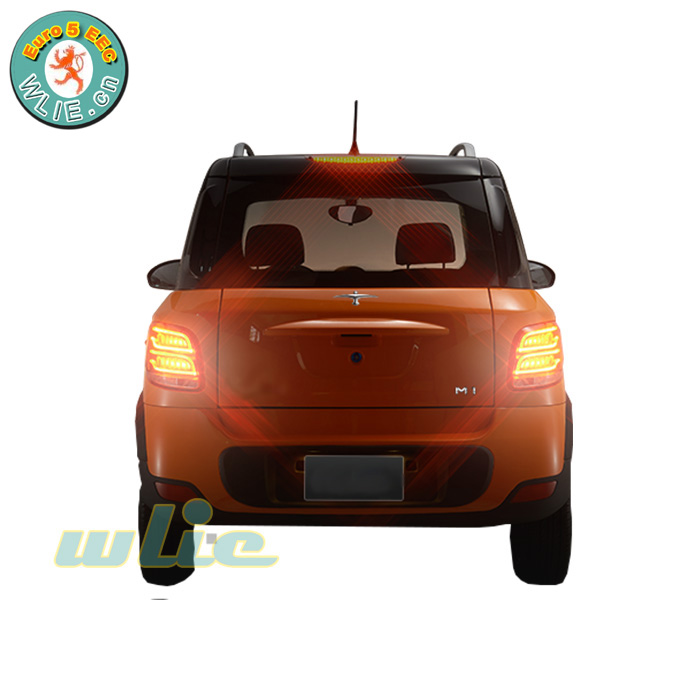

LED tail-lamp | ● | ● |
LED headlamp | ● | ● |
High mounted stop lamp | ● | ● |
Front suspension | Macpherson suspension | |
Rear suspension | Tailing arm suspension | |
Braking system | Disc brake | |
Brake booster | ● | ● |
Braking distance(m) | 3.5(30km/h) constant speed | |
EPS | ● | ● |
Rotations of steering wheel | 3 | 3 |
Full-automatic air conditioner | ● | ● |
Heater | - | - |

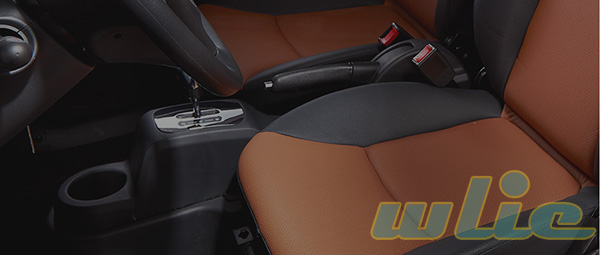

Adjustable seat | ● | ● |

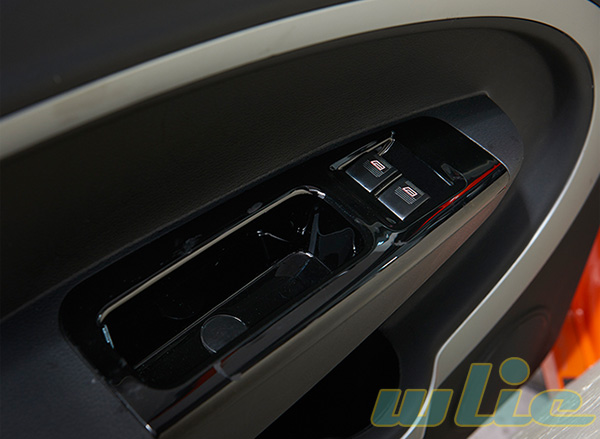

Electric doors and windows | ● | ● |
Anti-glare inside rear-view mirror | ● | ● |
Reading lamp | ● | ● |
Digital instrument | ● | ● |
12V power interface | 1 | 1 |
Central control system | ● | ● |
3-point safety belt | ● | ● |
Copilot handle | ● | ● |
Rear view camera | ● | ● |
Intelligent charging system | ● | ● |
Intelligent car navigation | ● | ● |
Bluetooth telephone | ● | ● |
Radio | ● | ● |
Quantity of loudspeaker | 2 | 2 |
1. with fully enclosed chassis,the car is dust proof and water proof
(you can buy a mirror to help the endusers see the bottom of the car like what we have in a shoe shop)
2. 72V 120Ah Lead acid battery with famous brand and good quality in China,
while some other brands use 100Ah,each battery 20Ah less,6pcs in one car,
it means the cost of each car is 1 battery less than us.
3. we are equipped with air conditioner, eps and rear view camera.
4. solid wheel hub,provide better loading capacity

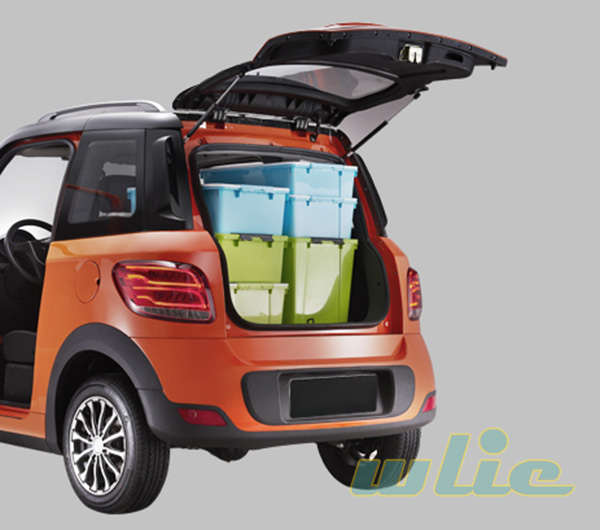

5. small details of production, inner decoration and other things, like the hexagon bolt on the back door,
other brands may use only screw
6. 13inches Chinese famous brand tubeless tyre, not inferior product

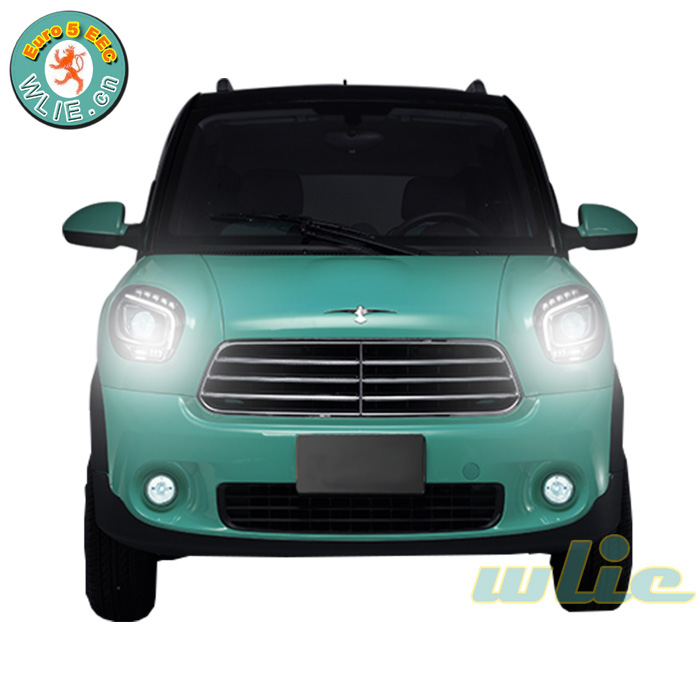

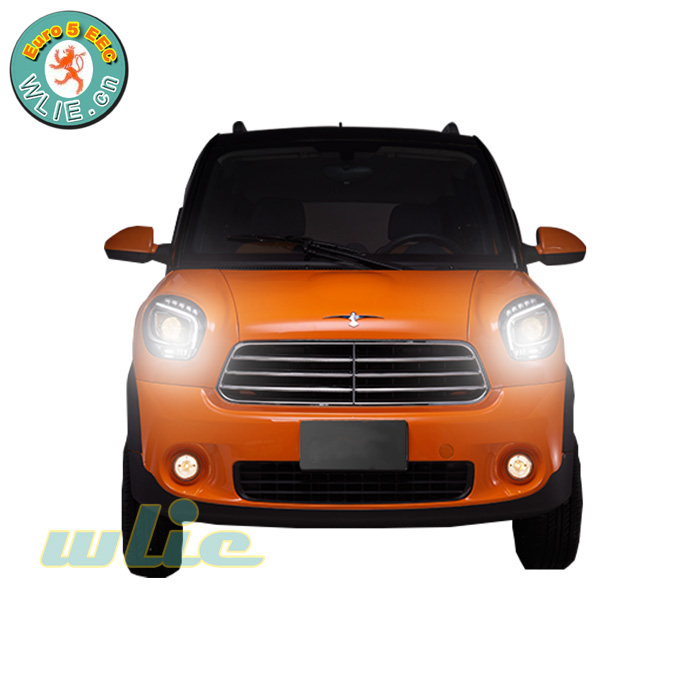

7. high quality lenticular LED headlights, more bright, more effective and give end user safety driving experience at nights,
the cost for some other factory is only 40-50% of our cost.
8. no foggy front windshield, due to the good sealing of the car and double glazing glass.

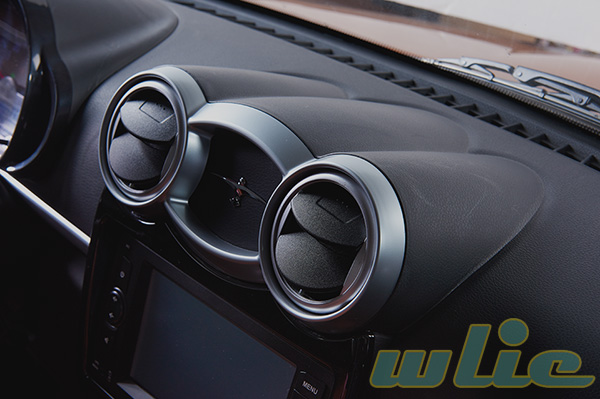

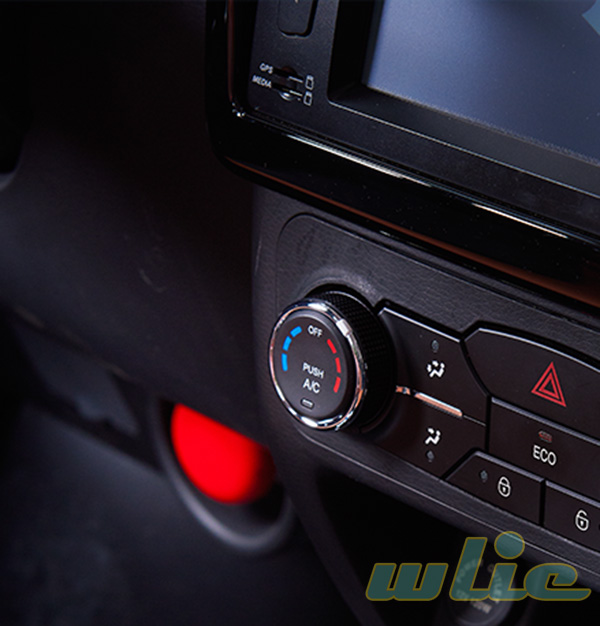

9. automobile level air conditioning system has automatic circulating air system to help fresh air in and out, cold and warm function,
the temperature can be cool down within 4 minutes from 38℃ to 25℃,and the air outlet can be cooled down at 16℃.

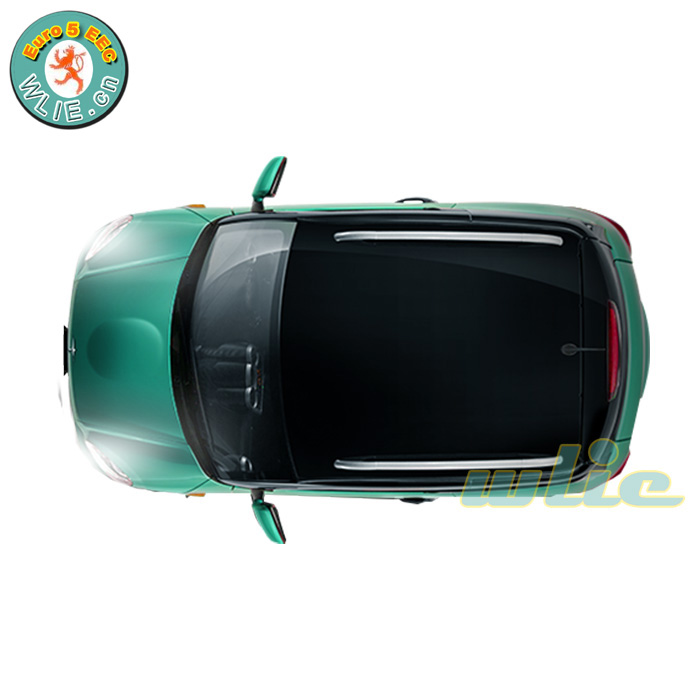

10. the material of exterior parts is ABS and PP, like the car roof which is automobile level,
the temperature resistance is from -30℃ to 140℃,only 1.6% deformation when subjected to 30MP pressure in 300h.
