| ATV300-EC (T3) Inquiry |
Specifications
T3 Certificate
| Engine | 300CC Single-cylinder, Water cooling, CVT with balance shaft |
| Displacement(cc) | 270.5 |
| MaxPower | 17.0KW/7000r/min |
| Max Torque | 24.5N.m/5000r/min |
| Dimention(LxWxH)mm | 2025×1100×1220 |
| Wheel Base(mm) | 1245 |
| Seat Height(mm) | 800 |
| Mini ground(mm) | 160 |
| Net Weight(kg) | 260 |
| Tyre Size | 24×8-10/24×10-10 |
| Hub | Steel |
| Brake(F/R) | Disc/Disc |
| Max Speed(km/h) | 80 |
| Max Load Capcity(kg) | 150 |
| Fuel Consumption(L/100km) | ≤5.1 |
| Transmission style | Shaft |
| Front suspension | Double swing-arm |
| Rear suspension | Double swing-arm |
| Loading Quantity | 20GP: 12 units; 40HQ: 36 units |
Selling Points of the product
1. Certificate: T3 approved
2. Engine: 300cc
3. Gear: CVT and reverse gear
4. Seat: a new long seat for 2person (comfortable & humanized)
5. Packaging: 7 layersshipping carton with strong iron frame
6. Colors painting samefinishing as car's, painted by our own paint-workshop, fully controlled quality.

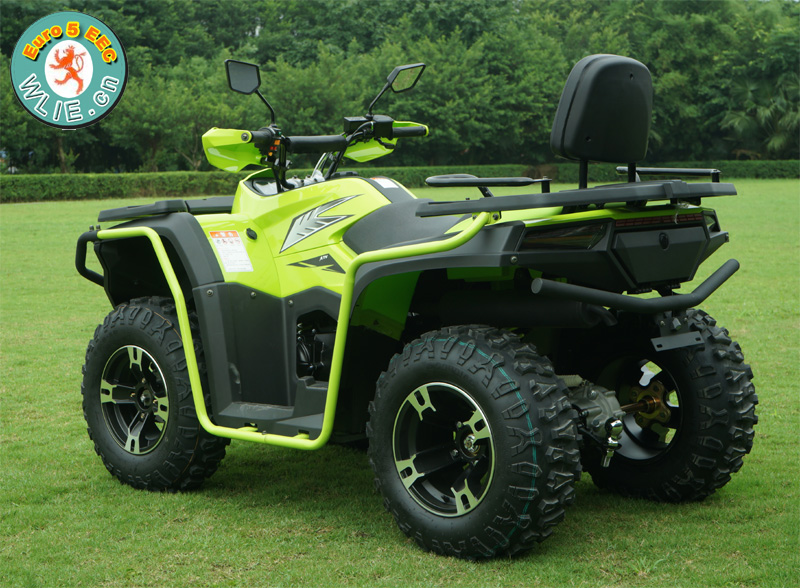

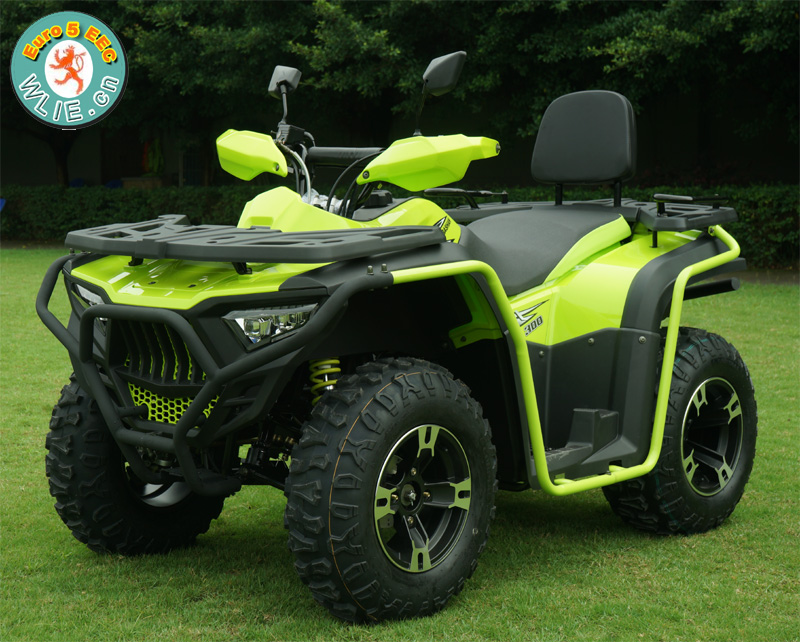

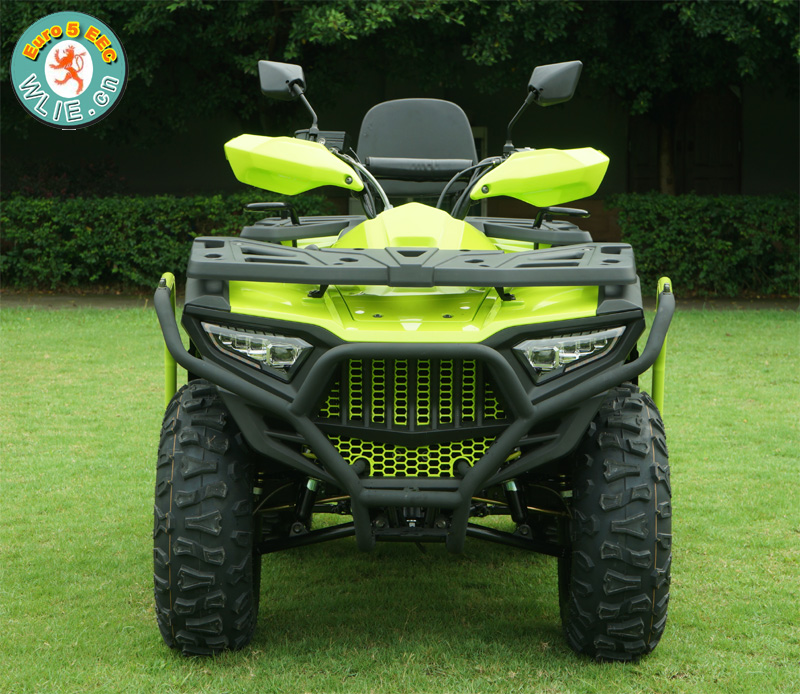

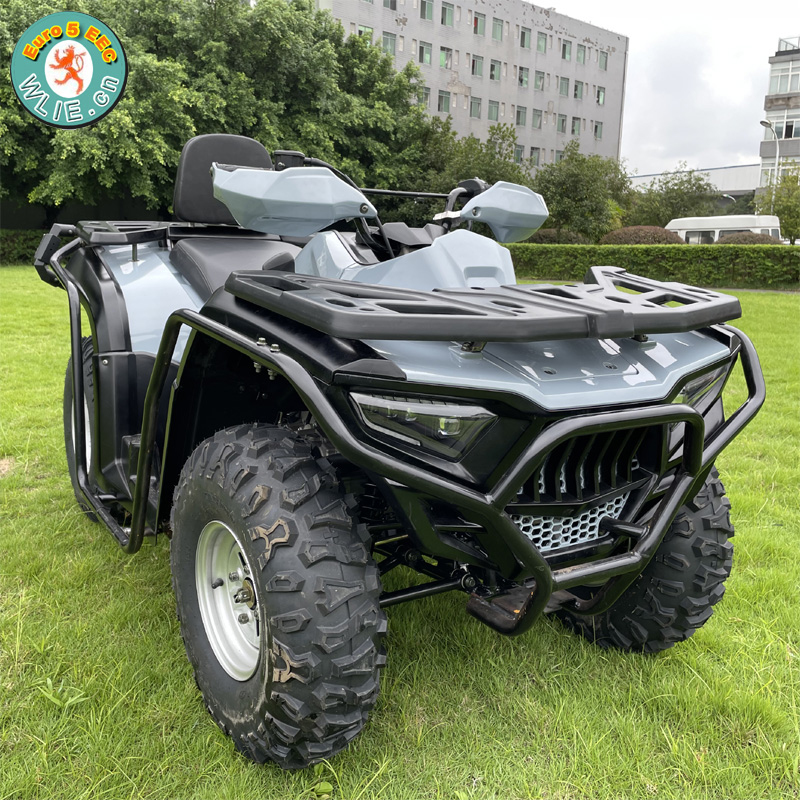

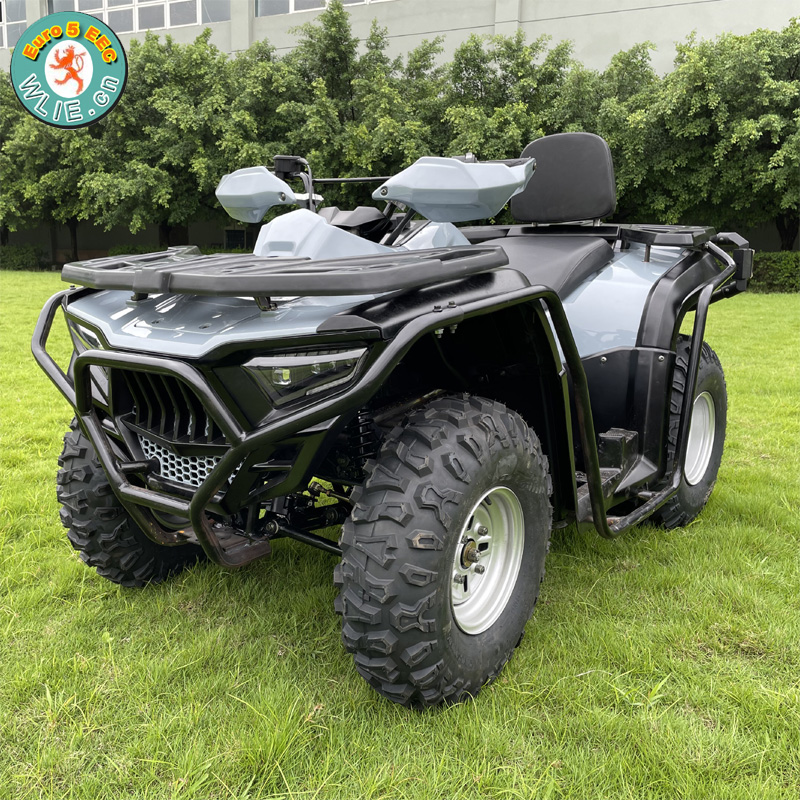

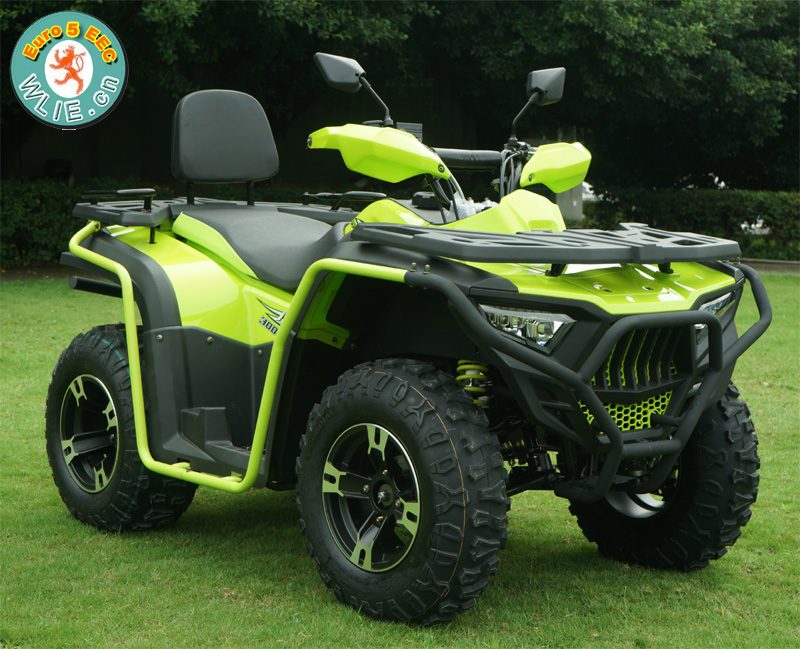

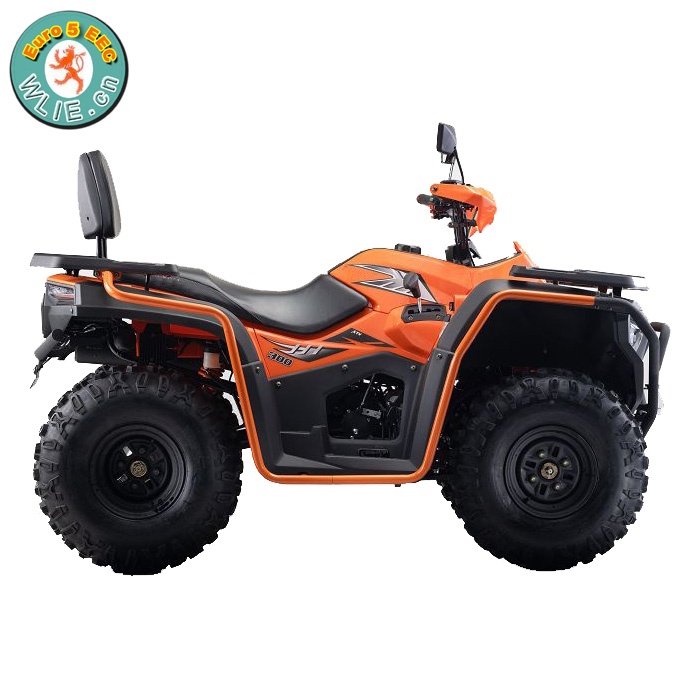

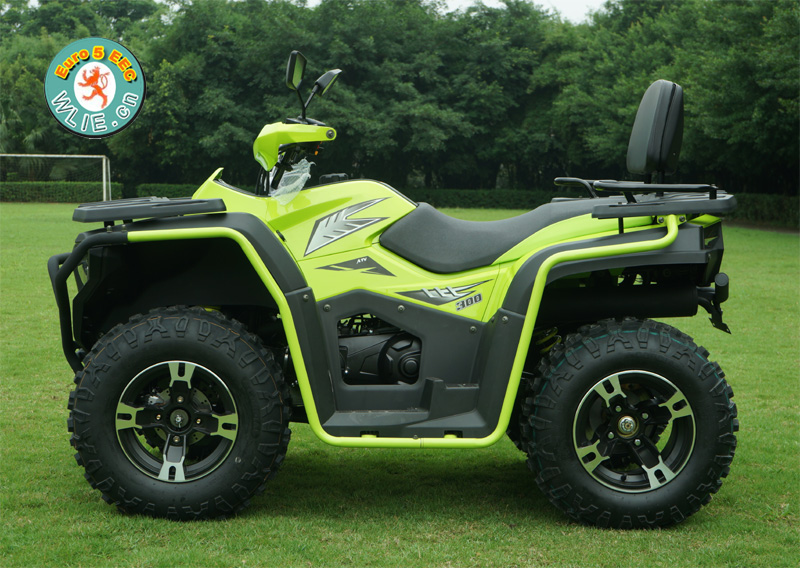

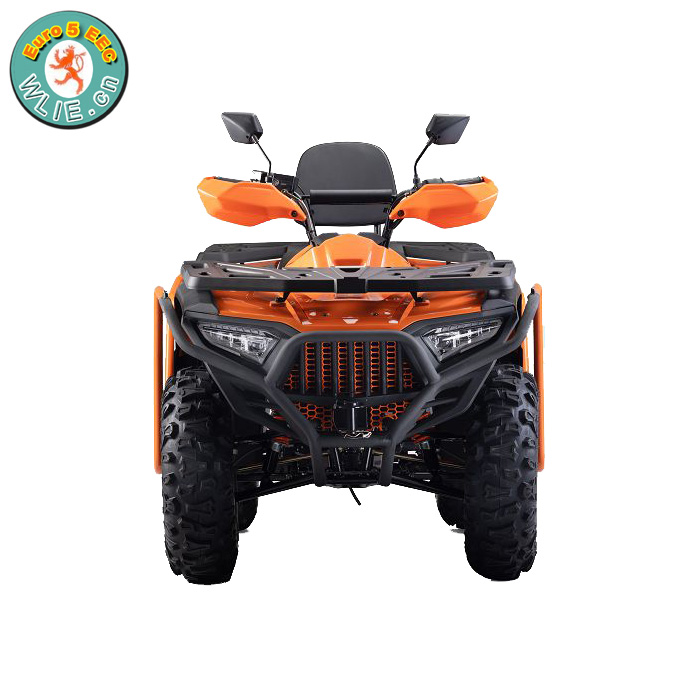

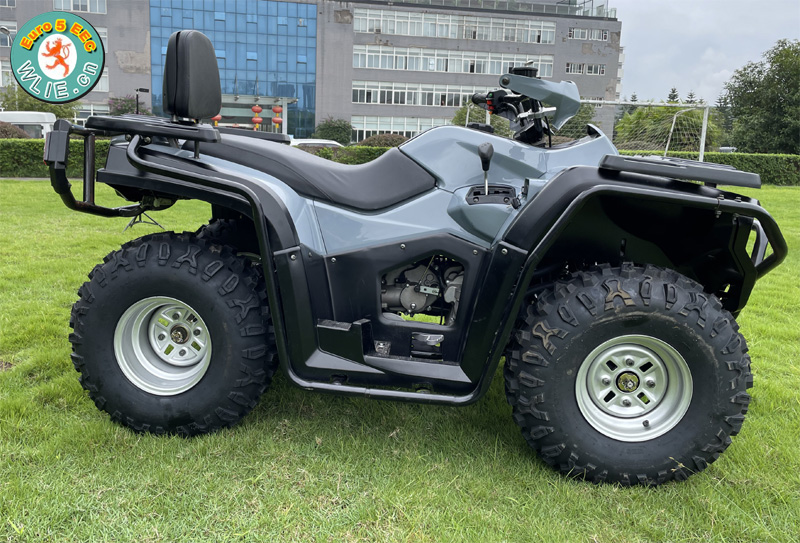

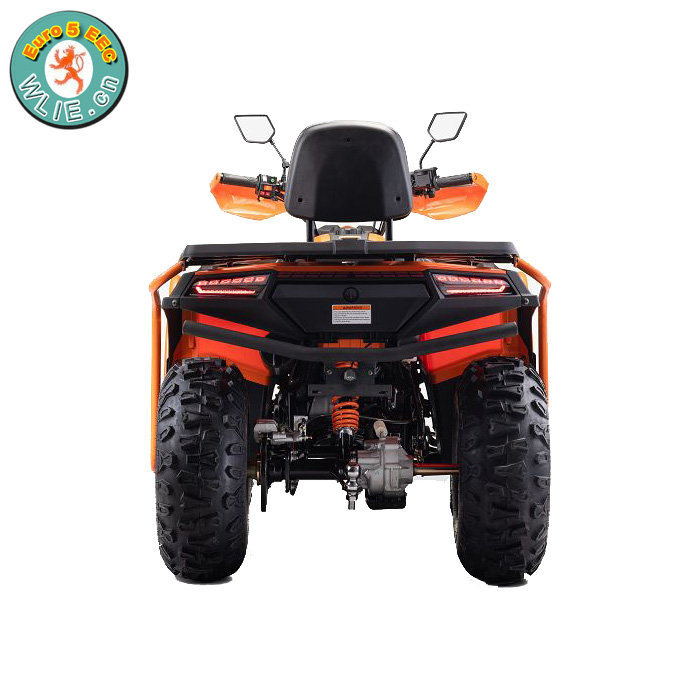

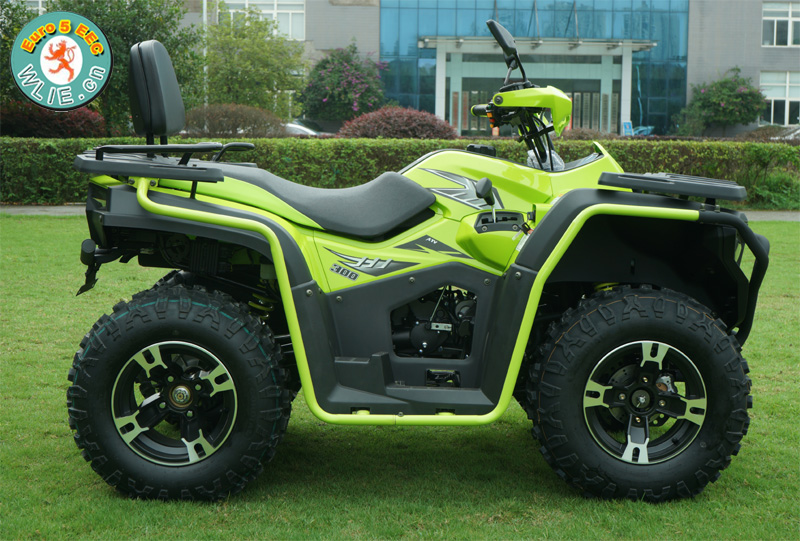

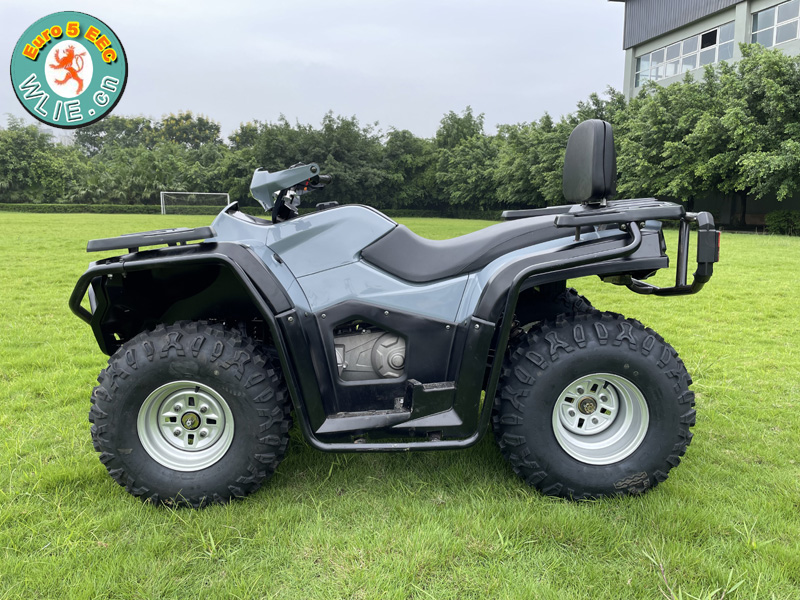

Multi-angle pictures of the product
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

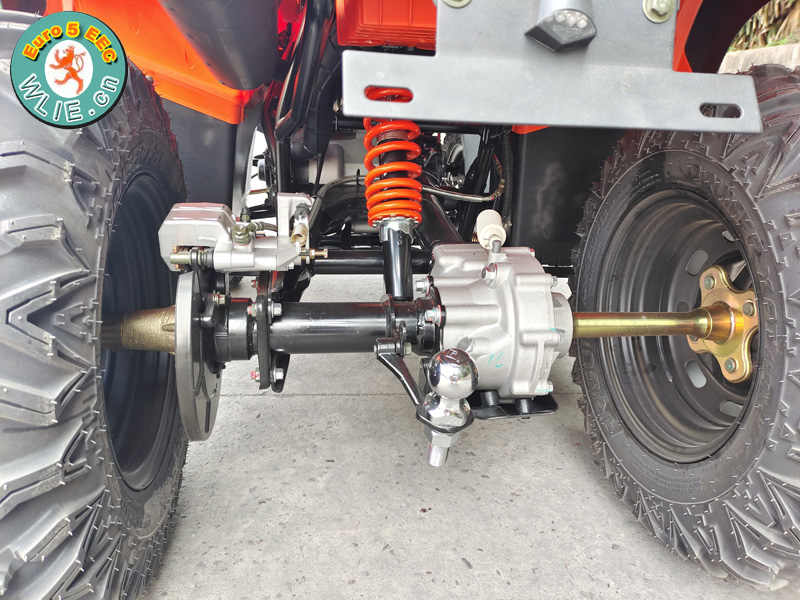

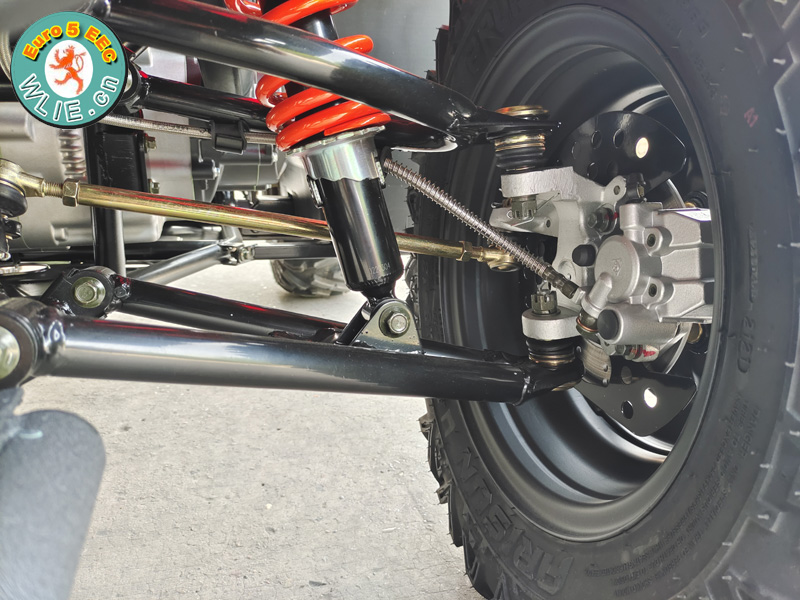

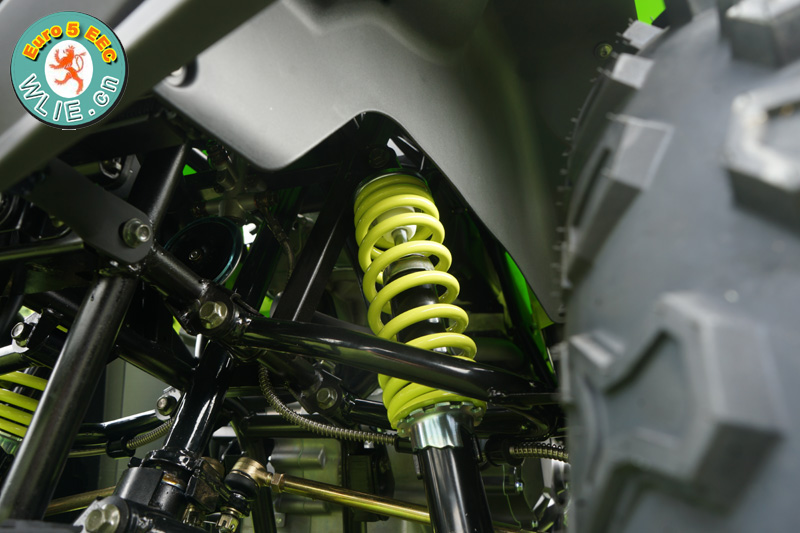

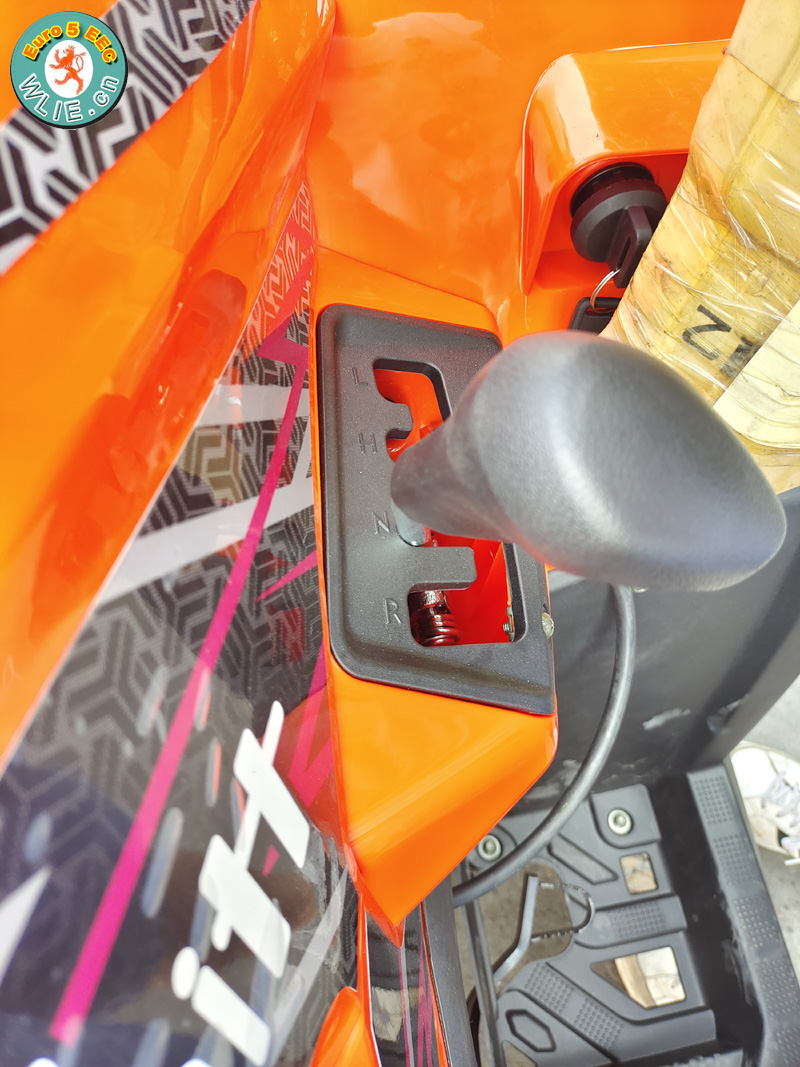

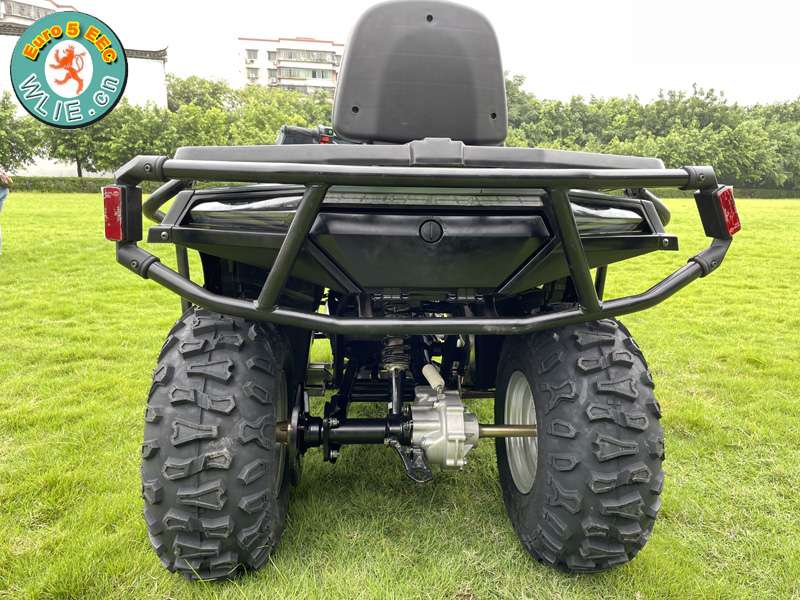

Detail photos of the product
 |
 |
 |
 |
 |
Product certificate
Euro 5 EEC Homologation
