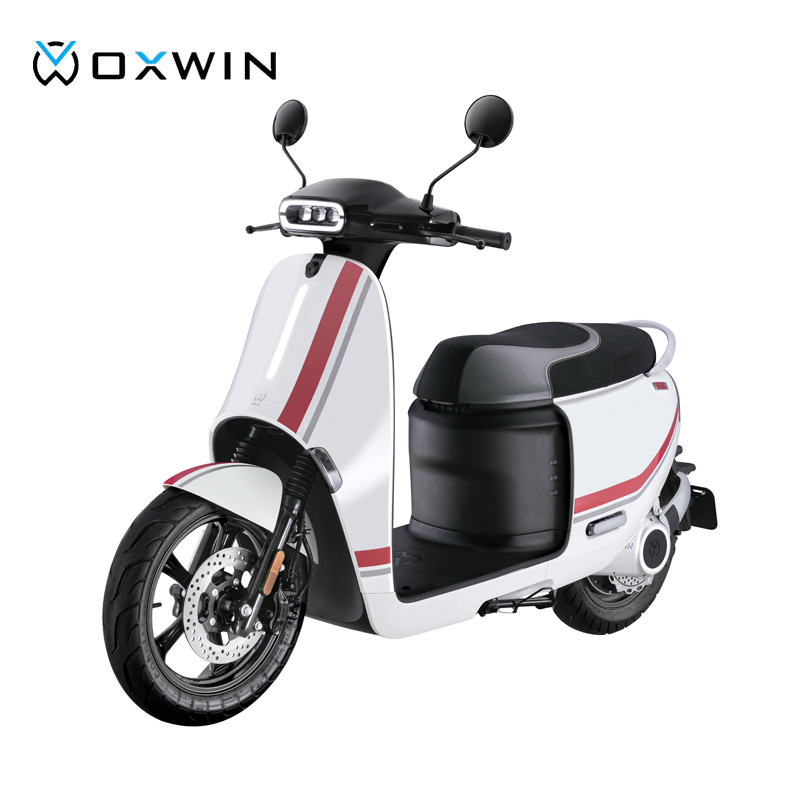

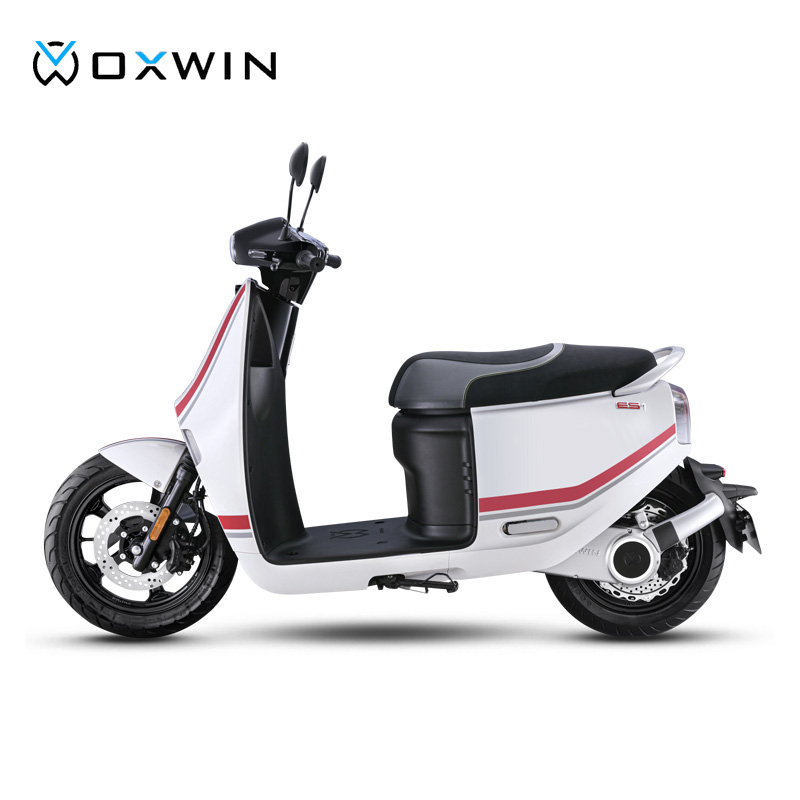

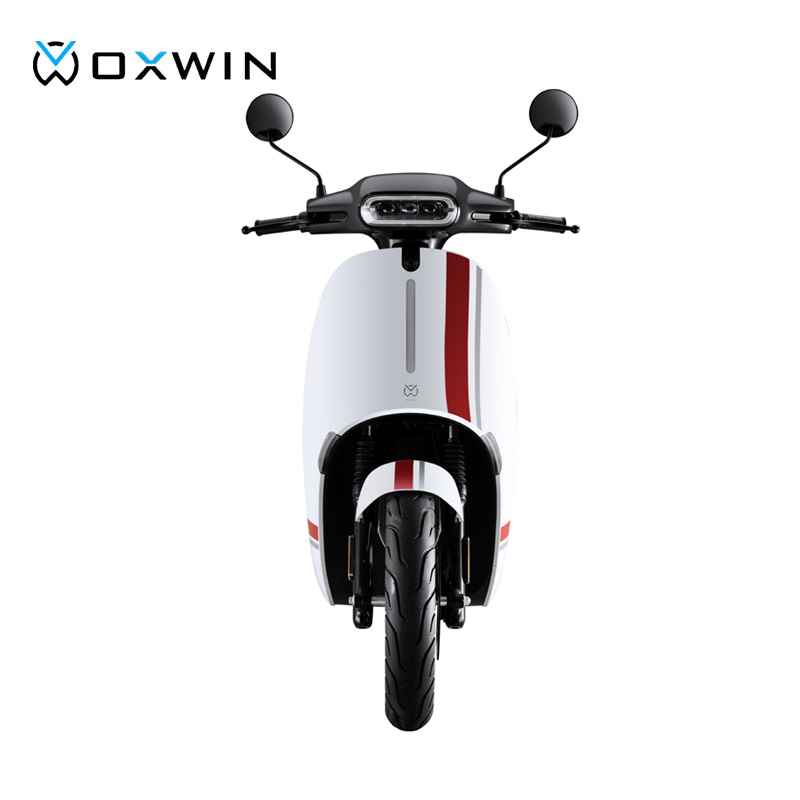

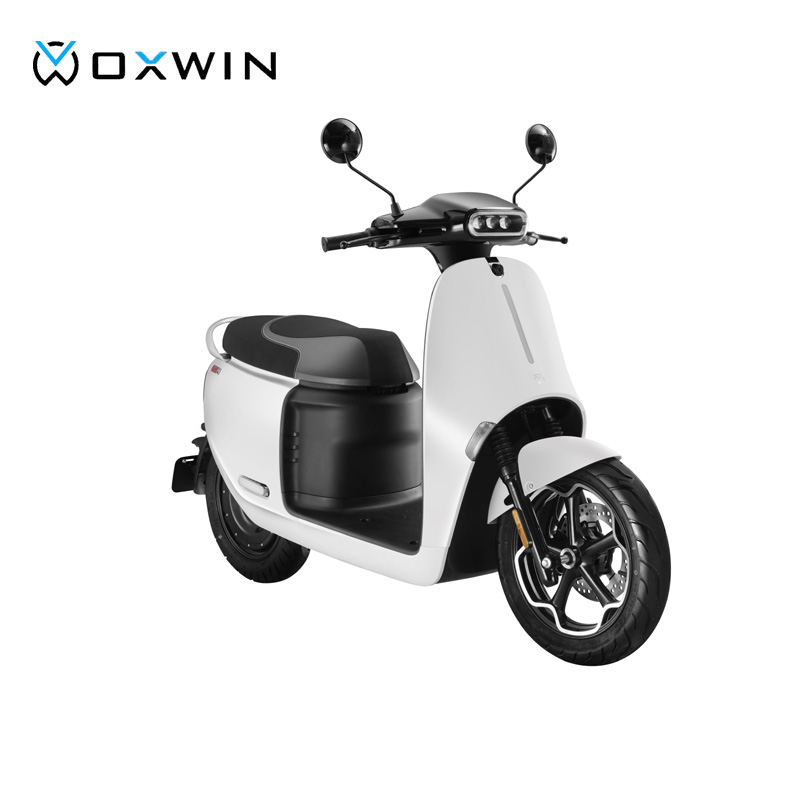

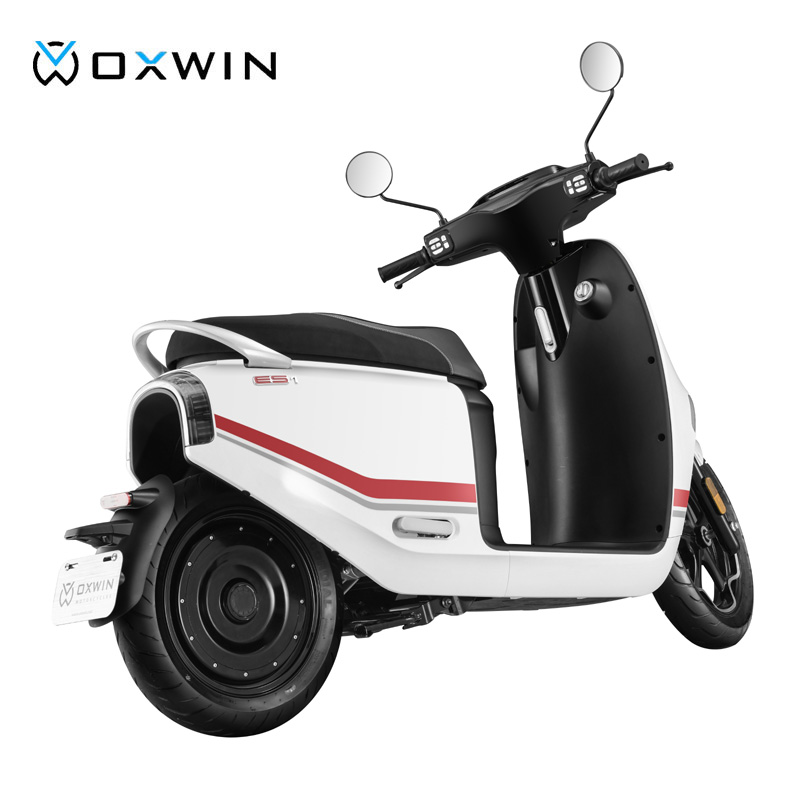

OXWIN ES1 brief introduction

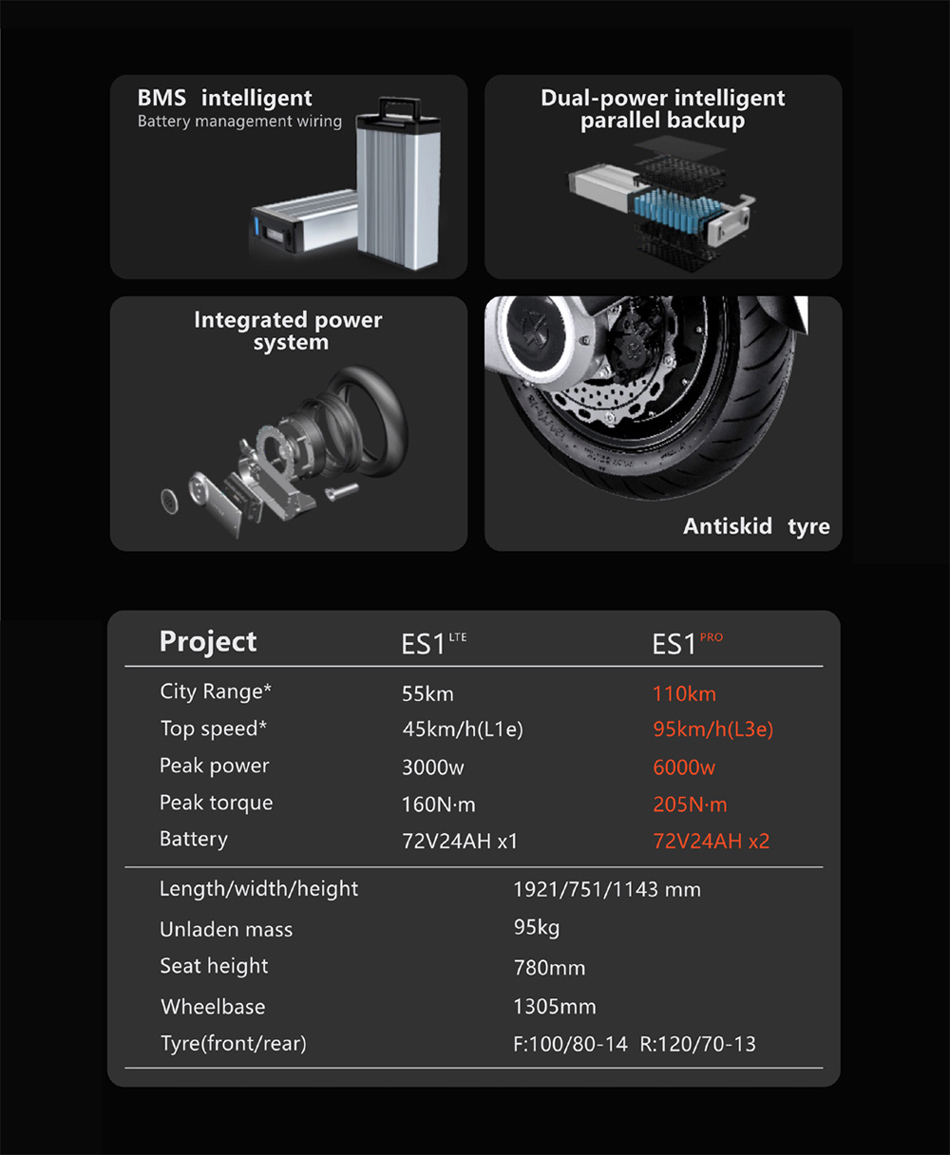

Specs

ModelES1ES1 Pro
Running Range55km(1 battery) / 110km(2 battery)110km(Double battery)
Max Speed45km/h (L1e)75km/h (L3e)
Motor
TypeHub motor
Rated power3000w6000w
Max torqure160N·m200N·m
Drive modeECO NORMAL SPORTECO NORMAL SPORT TUBRO
Battery
Capacity72V24AH72V24AH
Qty1 or 22
MaterialTernary lithium battery
Charging time3 Hour6 Hour
Chassis
Front brakeDouble piston/disc brake Φ240mm
Rear brakeDisc brake Φ265mm (CBS)
Tyre (Fr/Rr)100/80-14 120/70-13
Rear arm materialaluminium alloy
Front ShockΦ31mm distance 80mm
Rear ShockHydraulic spring shock
Basic Information
L/W/H1921/751/1143 mm
Weight95kg105kg
Seat Height780mm
Turning radius1.90m
Wheelbase1305mm
Storage space3/4 Helmet
Assistant
UnlockingAPP/Bluetooth/NFC

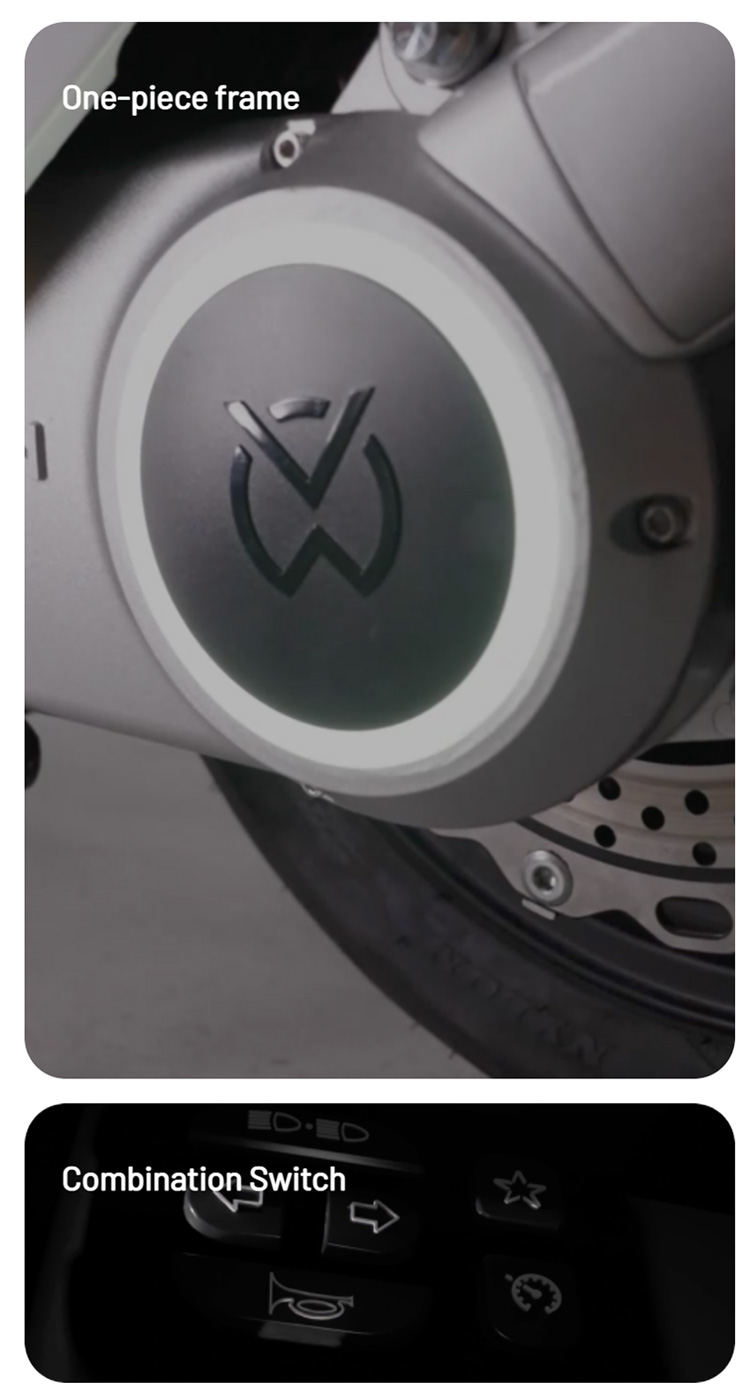

OXWIN self-developed high-power in-wheel motor with

self-developed FOC3.0 vector controller

Give full play to efficient and stable power output, precise traction control

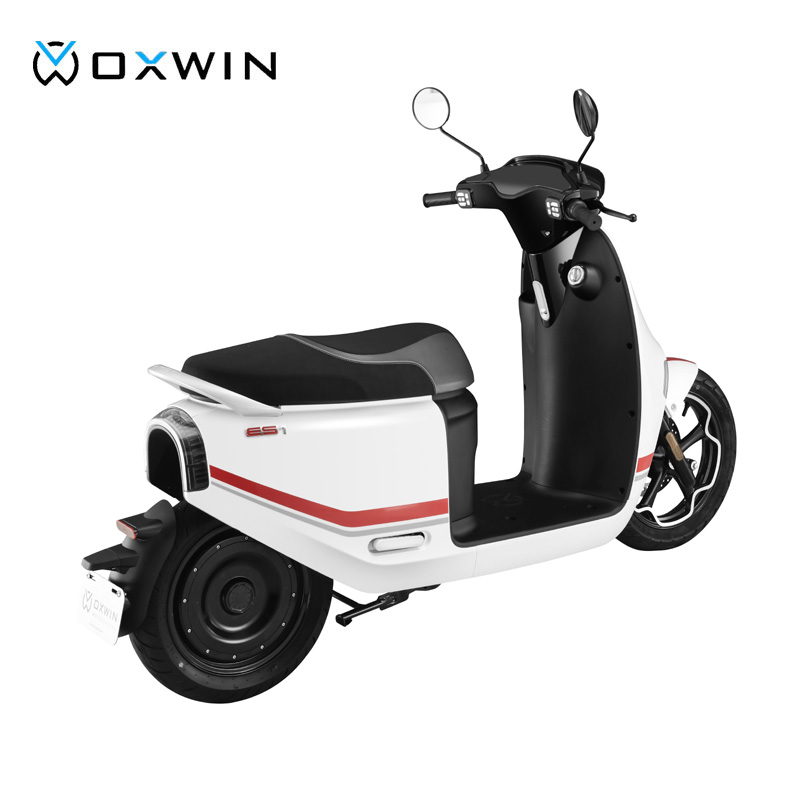

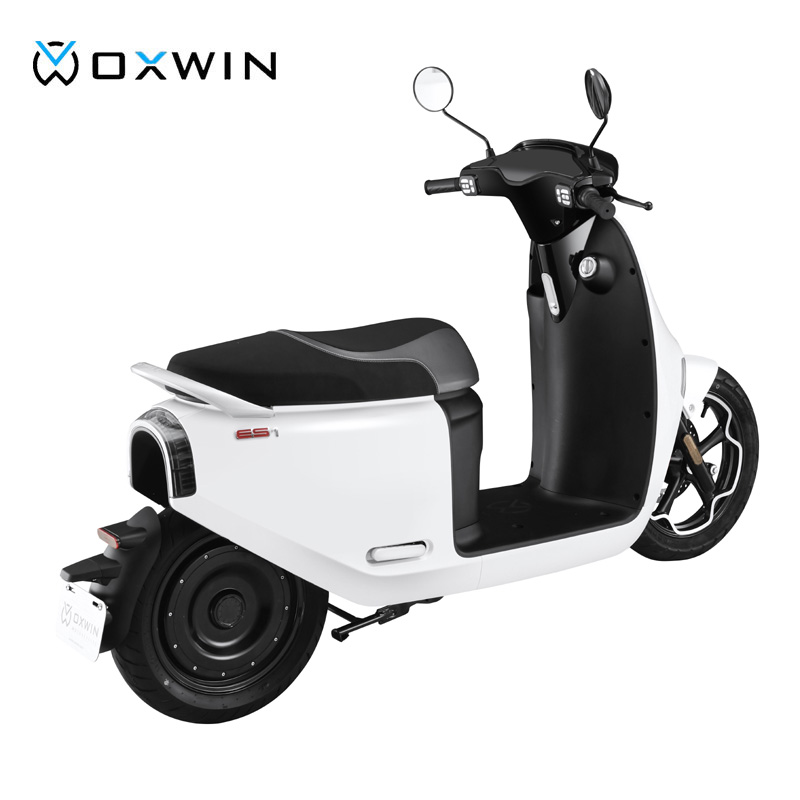

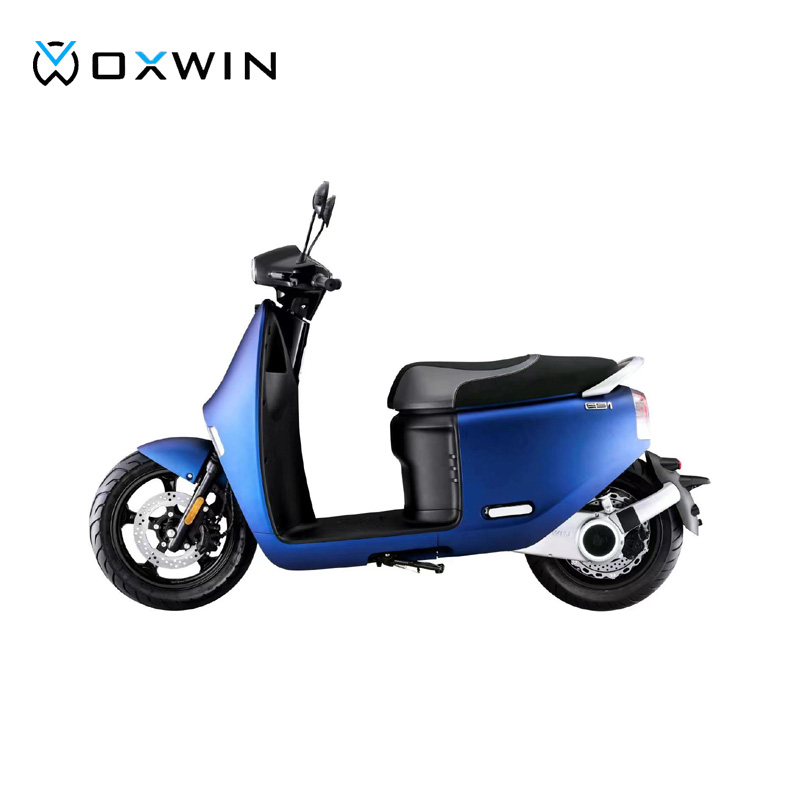

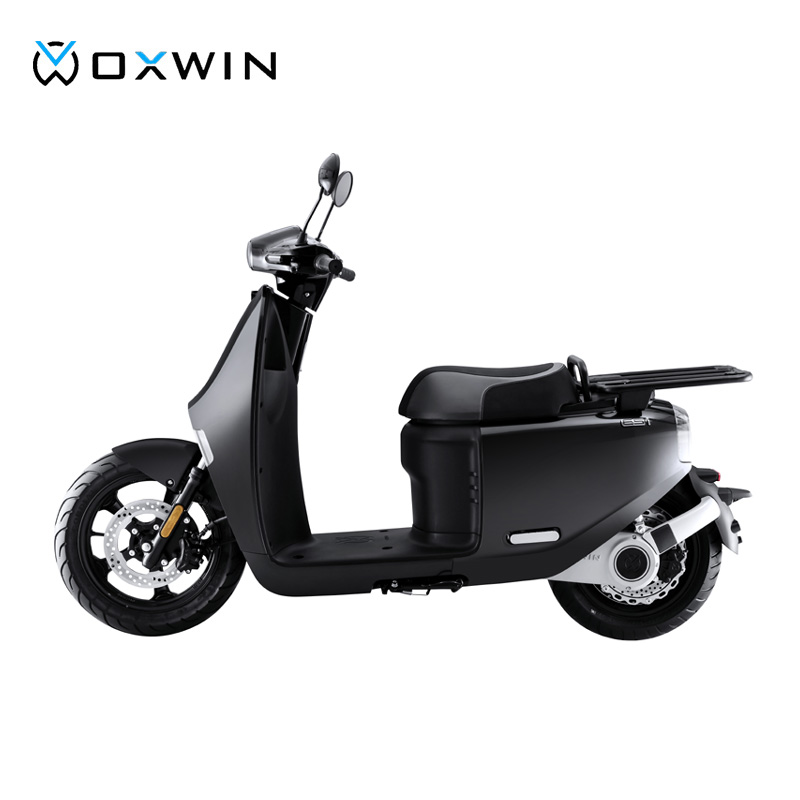

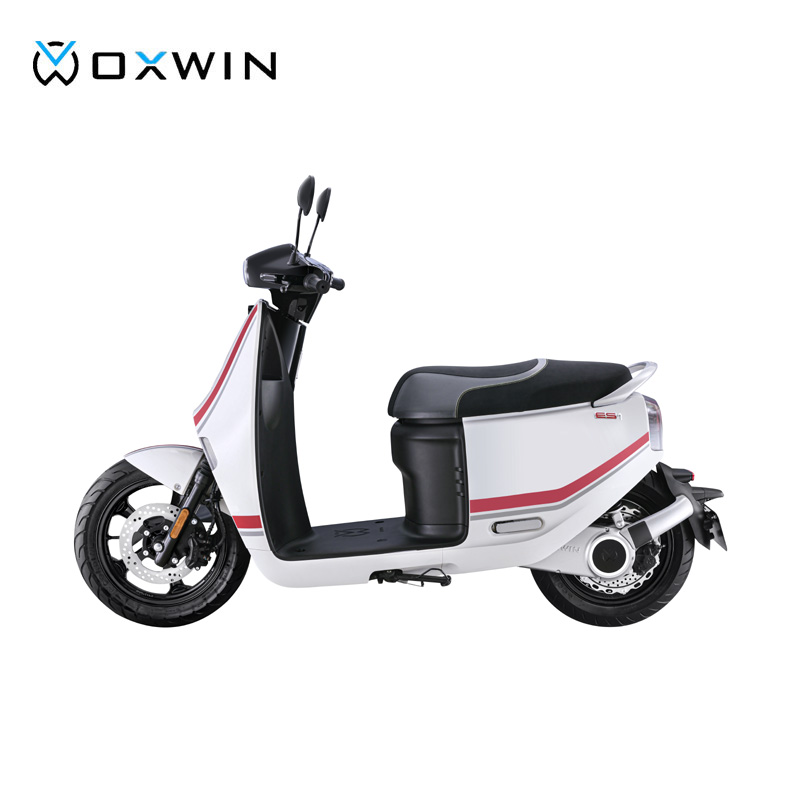

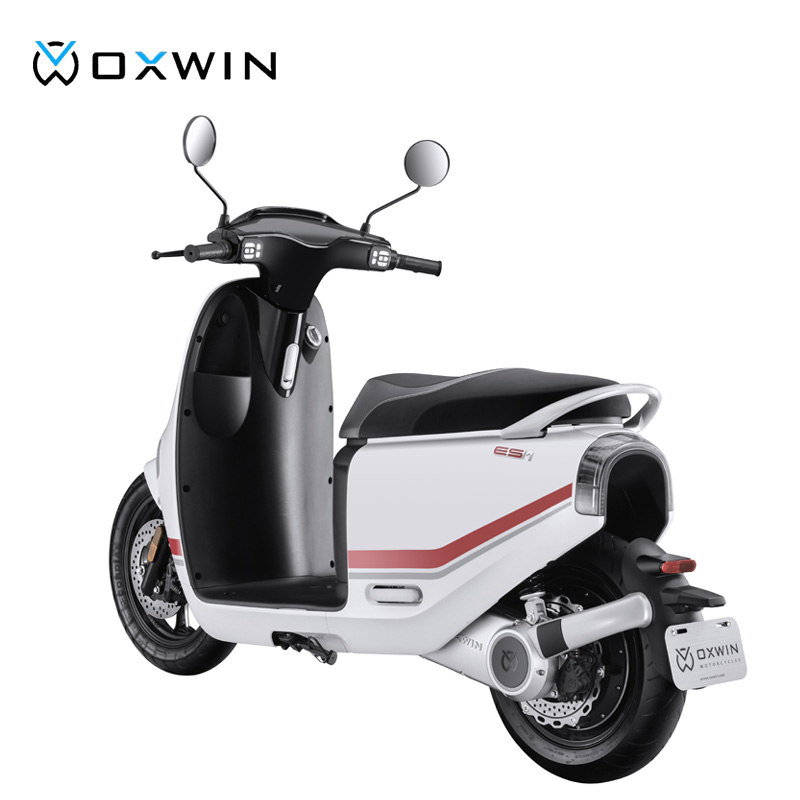

Different colors

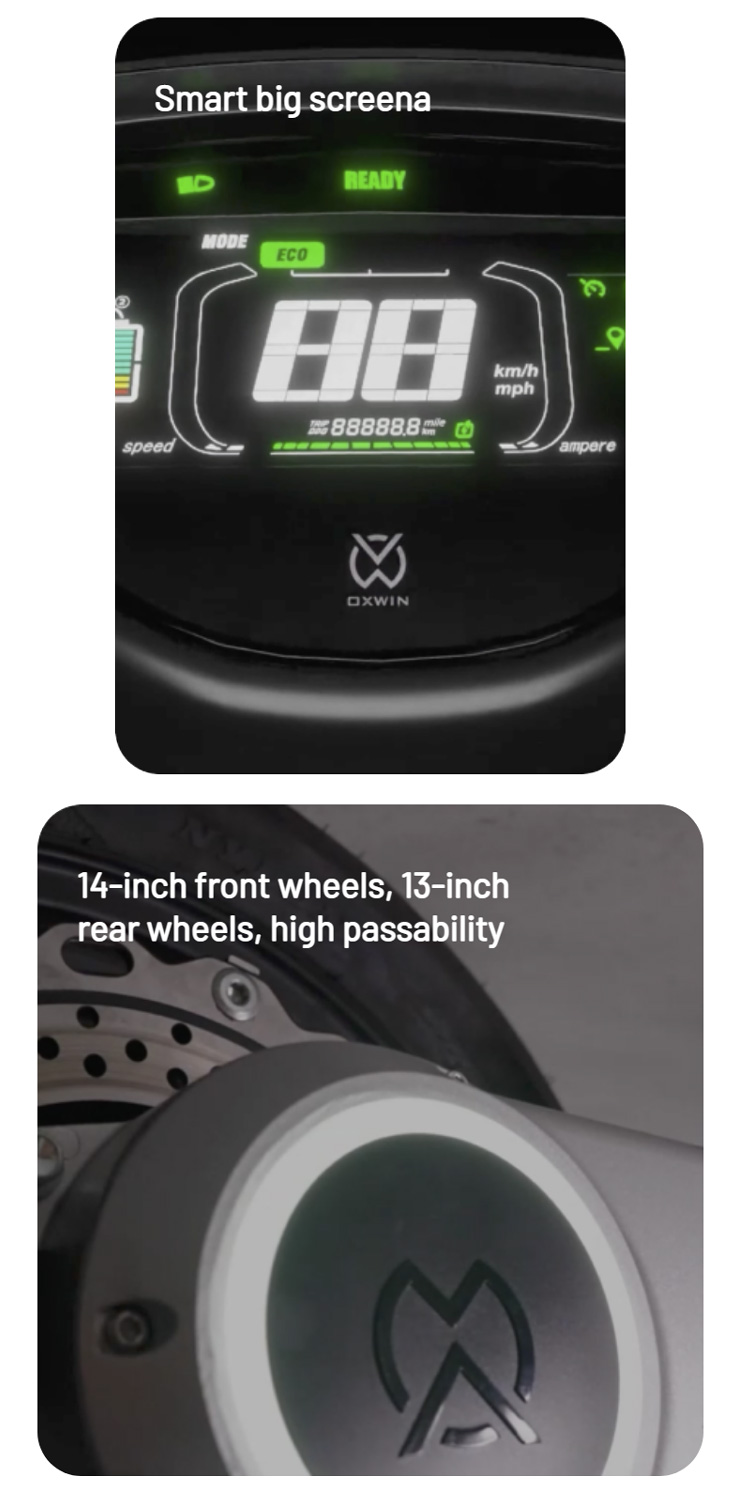

Key-card and Speedometer:

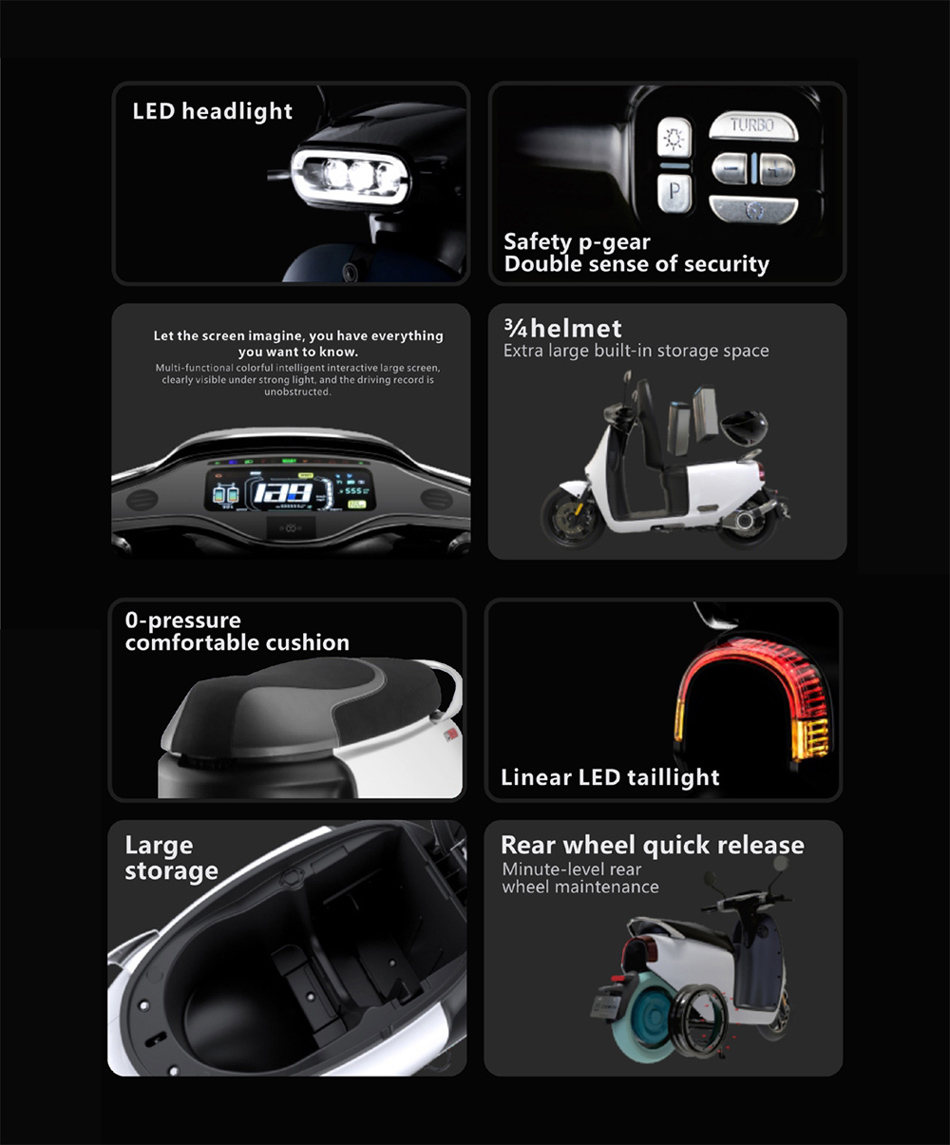

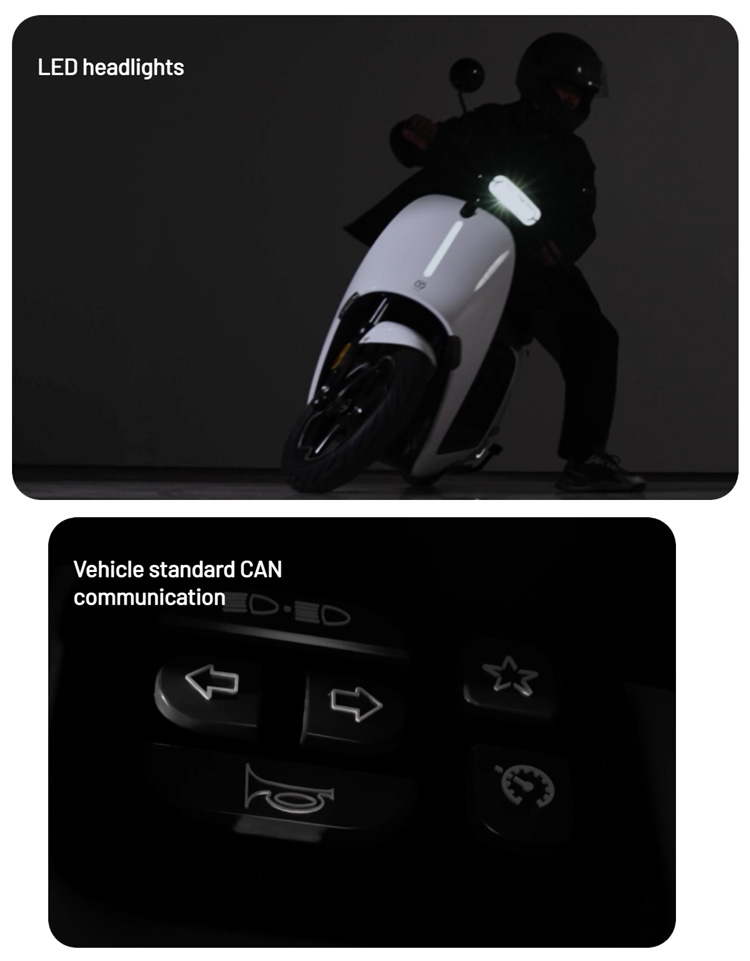

Detail information
