Maple 50-2S (Euro 5) Inquiry
Specifications

With EFI system, Euro 5 EEC Homologated

Drive systemBelt drive
Front and rear shockFront hydraulic rear spring shock
Electric and speedmeterEight level direct current , 12V7A battery,speedmeter(speed,mileage,fuel tank capacity)
Lighting systemFront headlamp,front and rear winker,rear tail light
Exhaust systemMute exhaust
Switch control systemFunction left and right swtich
Cylinder diameter39mm
Piston stroke41.4
Battery type12V7A
Max power and rotate speed2.2KW(3.0HP)/7500rpm
Max torque and rotate speed3.01/5000(N.m/rpm)
Minimum ground clearance(mm)95
Compression ratio10.2:1
Unladen mass(kg)93
Load capacity(kg)150
Economic oil consumption≤2.0
Climbing capacityAngle: 30 degrees
Minimum turning radius1750MM
Speed changeV type belt stepless speed change


Selling Points of the product

1,It can match multicolor and stickers

2,We can do 125CC power, also do we can do 50CC and 150CC models.

3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tire is wear-resisting and aiti-explosion.

4,Disc brake has high safety performance and has no noise

5,The motorcycle can install rear box and rear carrier

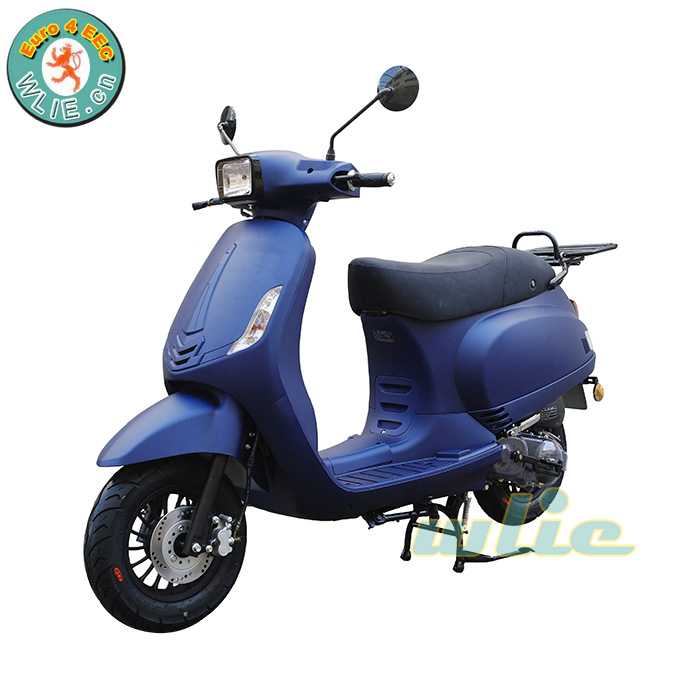

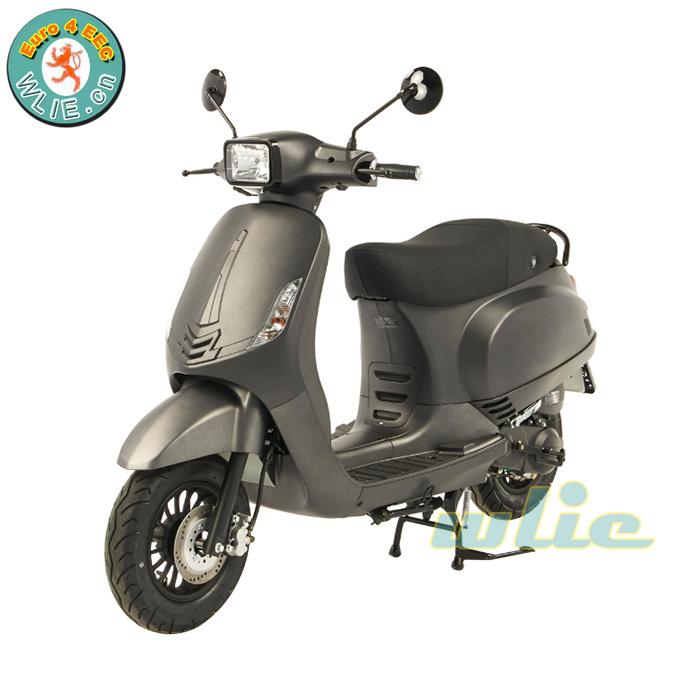

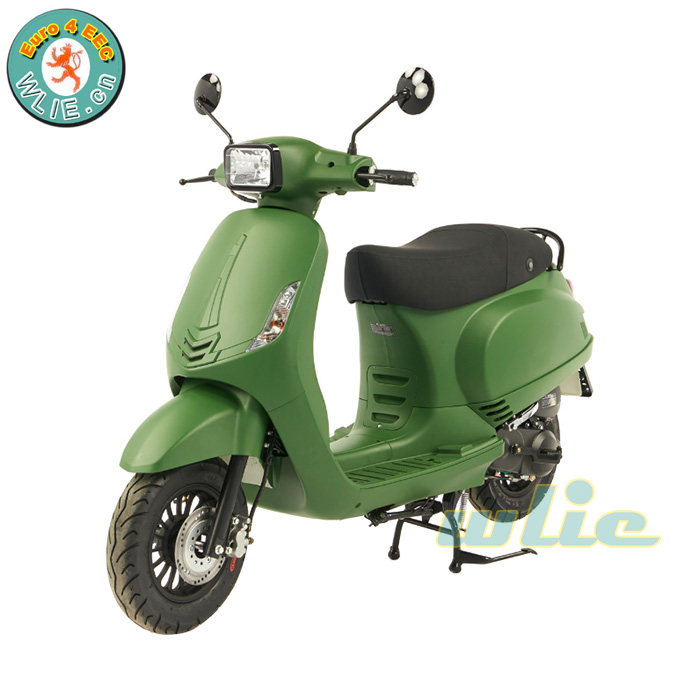

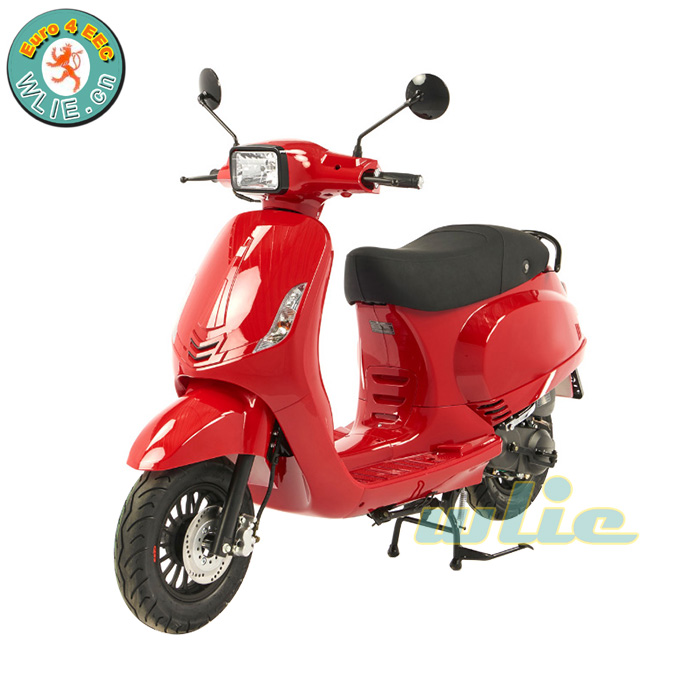

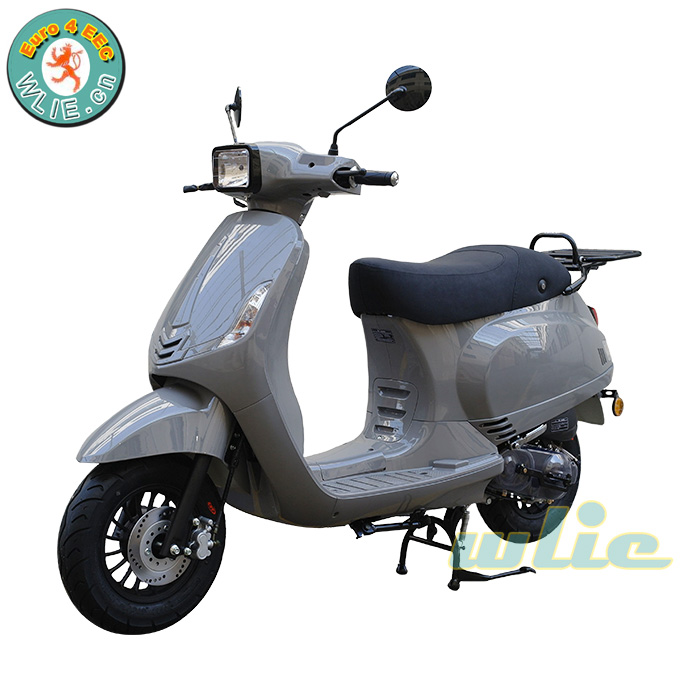

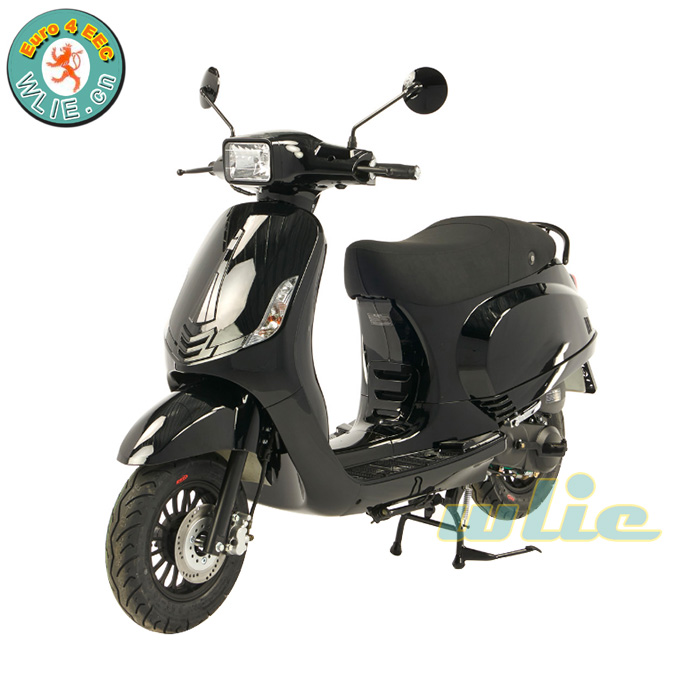

Color Sample of the product

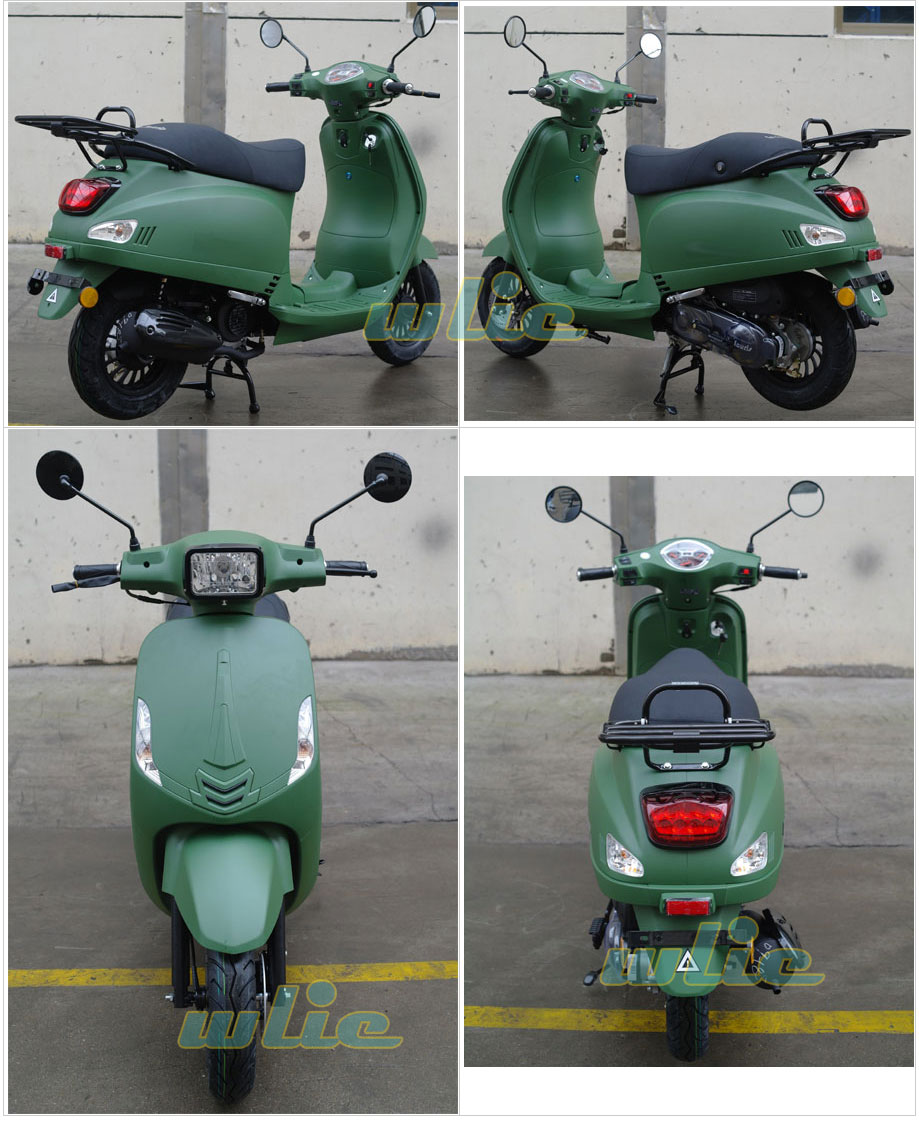

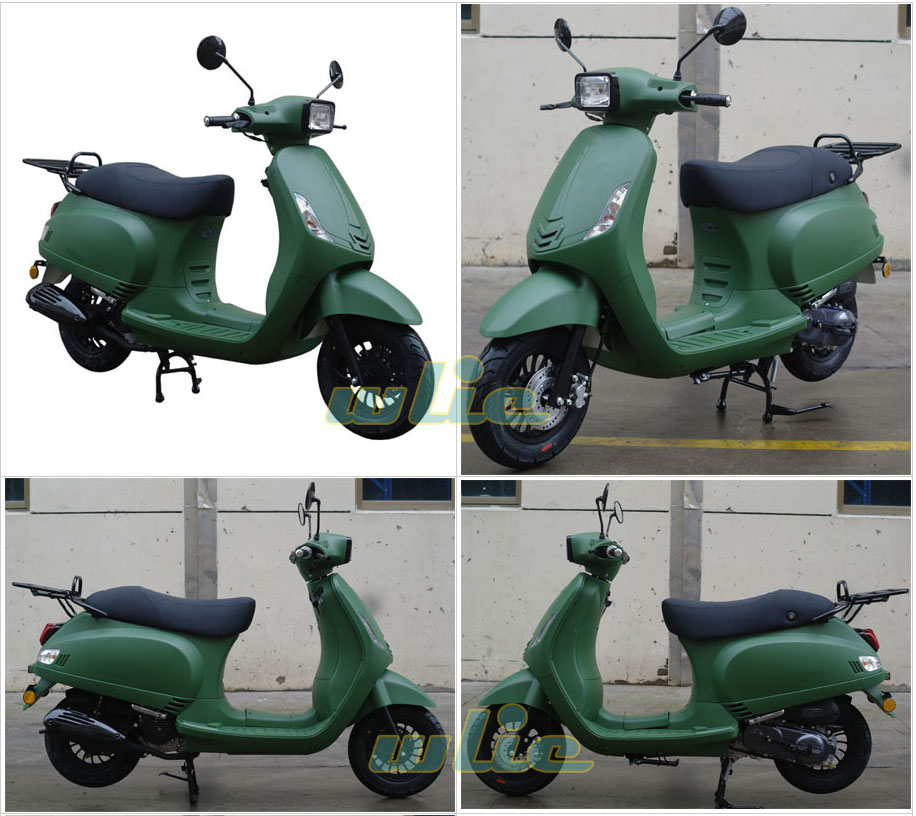

Multi-angle pictures



Detail pics of the product

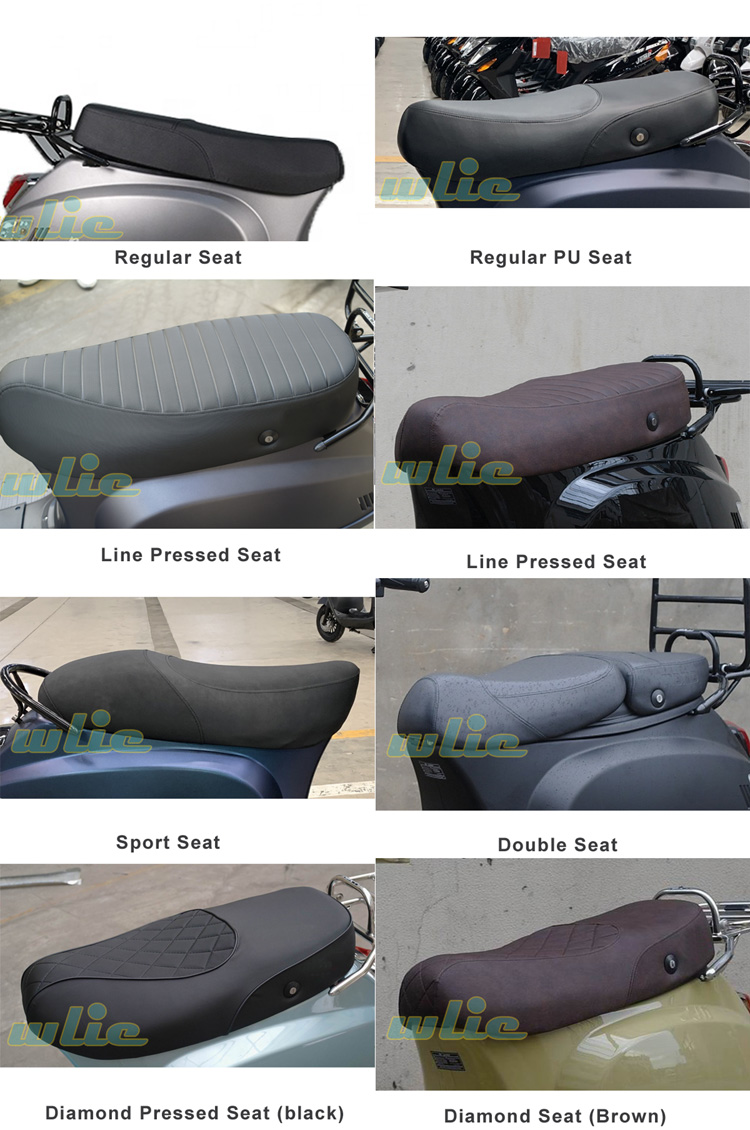

Different seat choice:


Certificate of the product



Accessories for Maple-2S

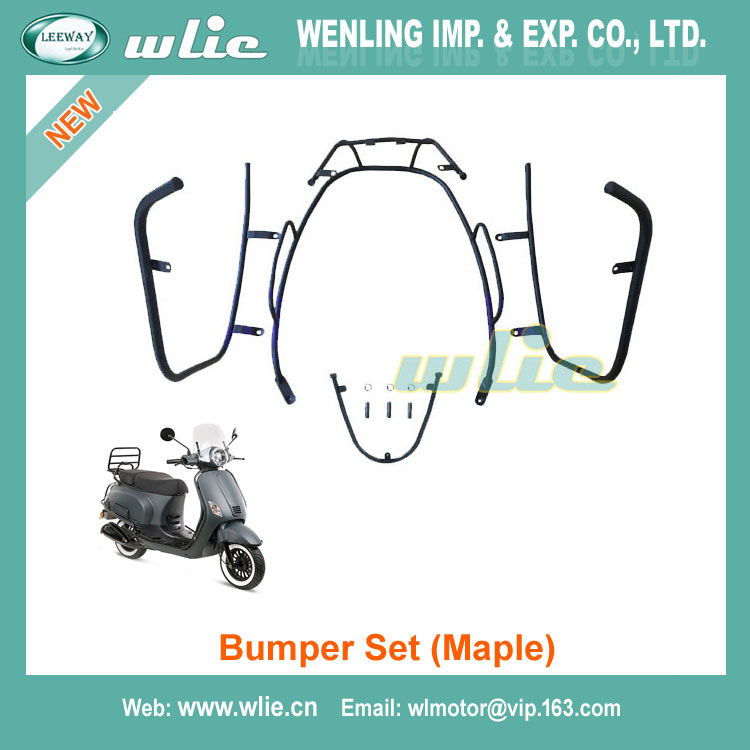

Check the link: Bumper Set for Maple-2S

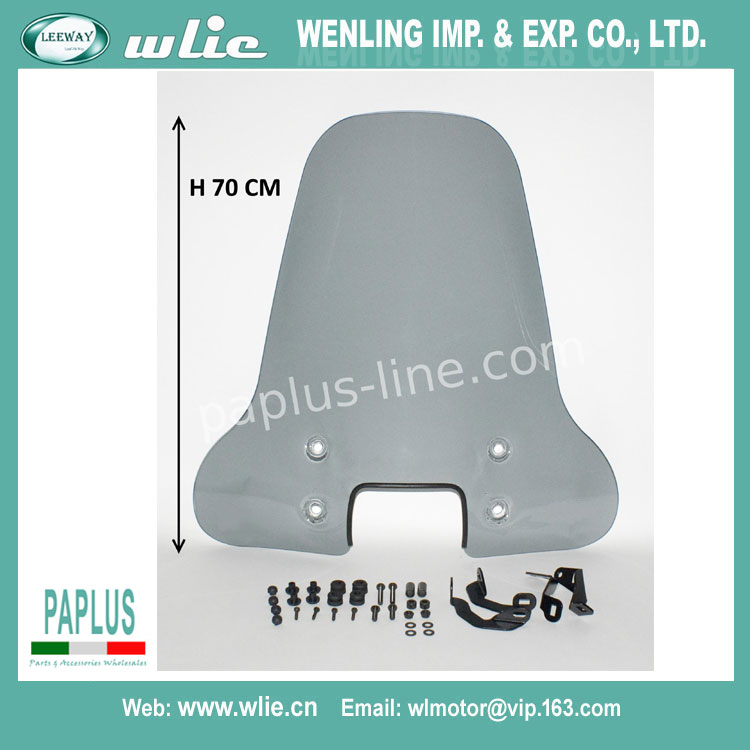

Check the link: Windshield for Maple-2S
