Specification

Drive system:

Belt drive

Front and rear shock:

Front hydraulic rear spring shock

Brake operation:

F: Hand R:hand

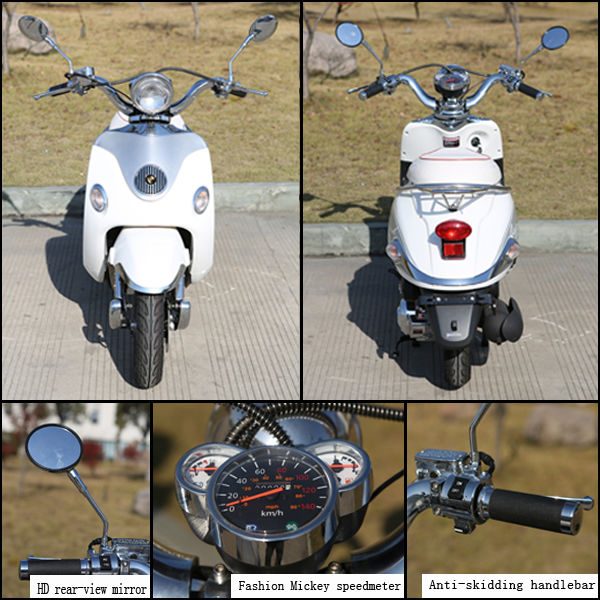

Electric and speedmeter:

12 level direct current,12V7A battery, speedmeter(speed,mileage,fuel tank capacity)

Lighting system:

Front headlamp,front rear winker,rear tail light, rear registration plate lamp

Exhaust system:

Mute exhaust

Switch control system:

Function left and right swtich

Cylinder diameter:

52.4mm

Piston stroke:

57.8 mm

Battery type:

12V/7AH

Total displacement:

124.6(ml)

Standard rated power and rotate speed:

5.43/7500 (KW/RPM)

Max torque and rotate speed:

 8.20/6000 (N.M/RPM)

Minimum ground clearance(mm):

95

Compression ratio:

9.2:1

Unladen mass(kg):

97

Load capacity(kg):

150

Economic oil consumption:

2.8L/100KM

Fuel consumption:

3.2L/100KM

Climbing capacity:

Angle: 30 degrees

Net weight:

97KG

Minimum turning radius:

1745MM

Speed change:

V type belt stepless speed change
