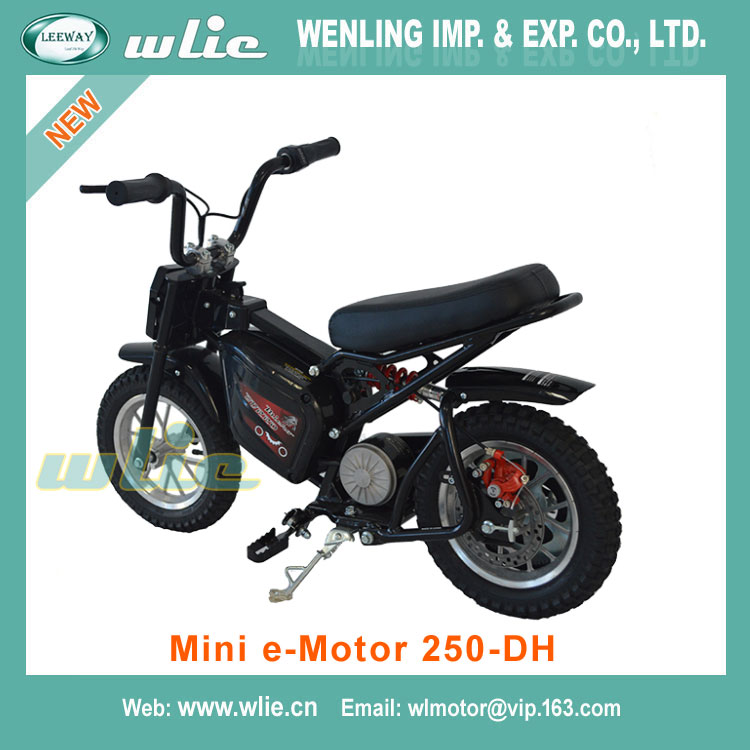

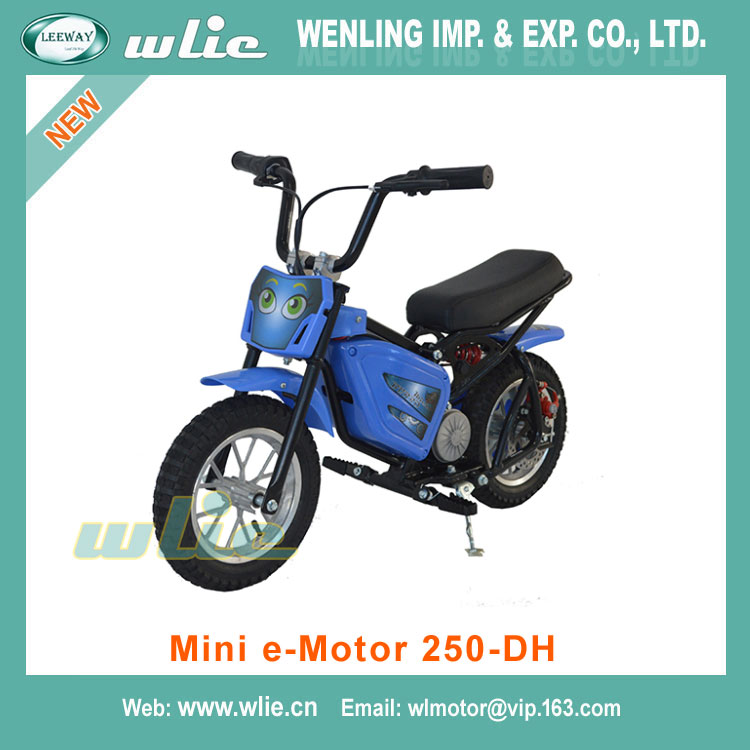

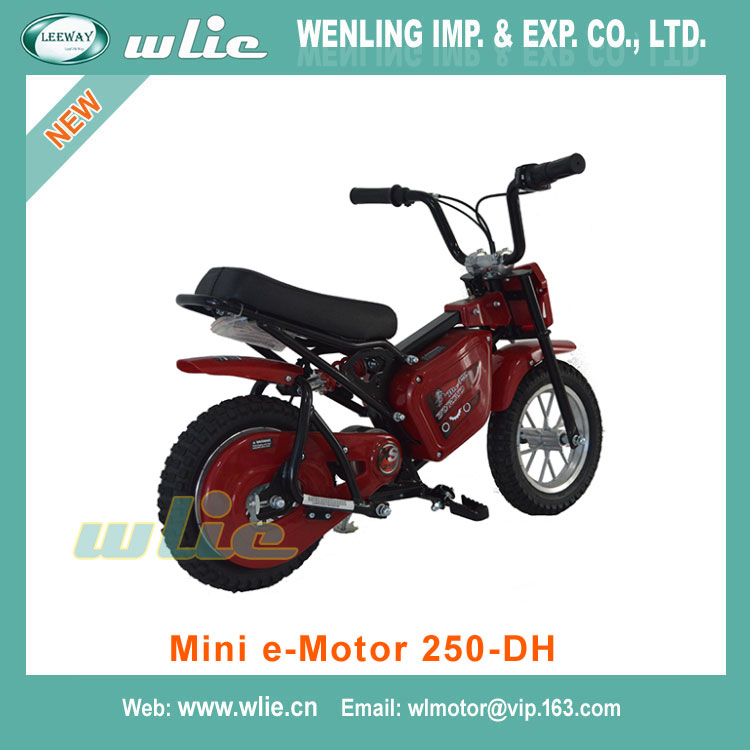

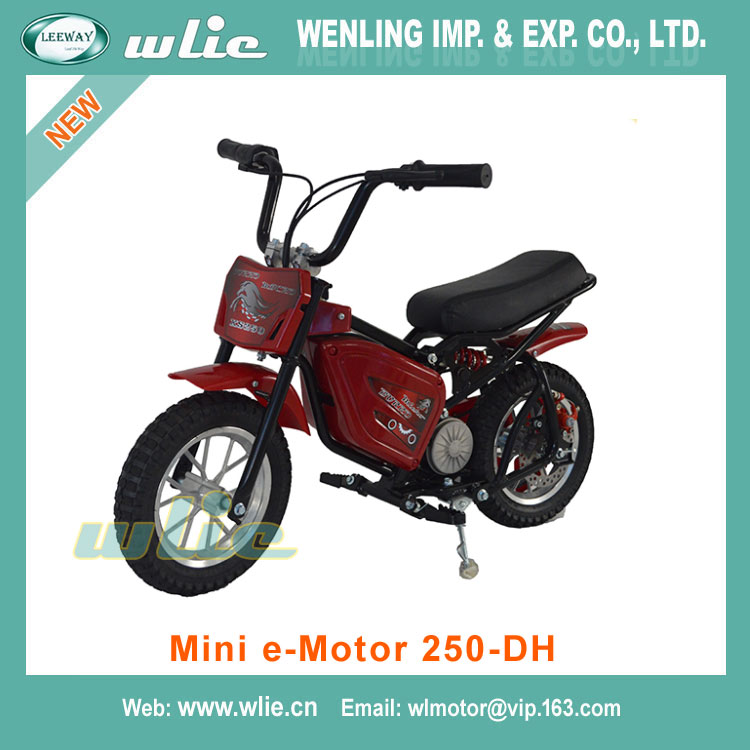

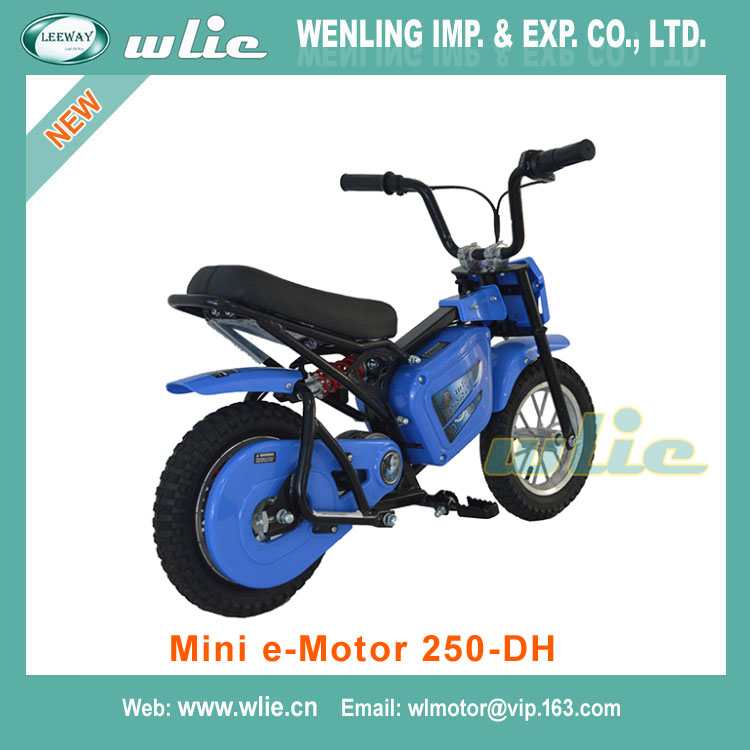

Mini e-Motor 250-DH Inquiry
Specifications

Motor: 250W With Brushes
Battery: 12V 7AH/2PCS Lead Acid
Charge Time: 6-8H
Wheel hub: Aluminum
Front Tire and Rim Size: 12½×2.75
Rear Tire and Rim Size: 12½×2.75
Throttle Type: by right hand throttle control
Max load: 45kg
 Range: 20km
Product size: 1010X600X680mm
Height of seat from the ground: 46CM
GW/NW: 25/22KGS
Braking System: Rear Disc brake
Drive System: Chain drive
Shock Absorber: Rear shock
Max Speed: High Speed: 21km/h; Low Speed: 11km/h
Brake distance: Low Speed: 2m (11km/ h); High Speed: 4m (21km/ h)
Carton Size: 1050x225X520mm
Container loading Qty: 20FT: 168PCS; 40FT: 448PCS; 40HQ: 550PCS

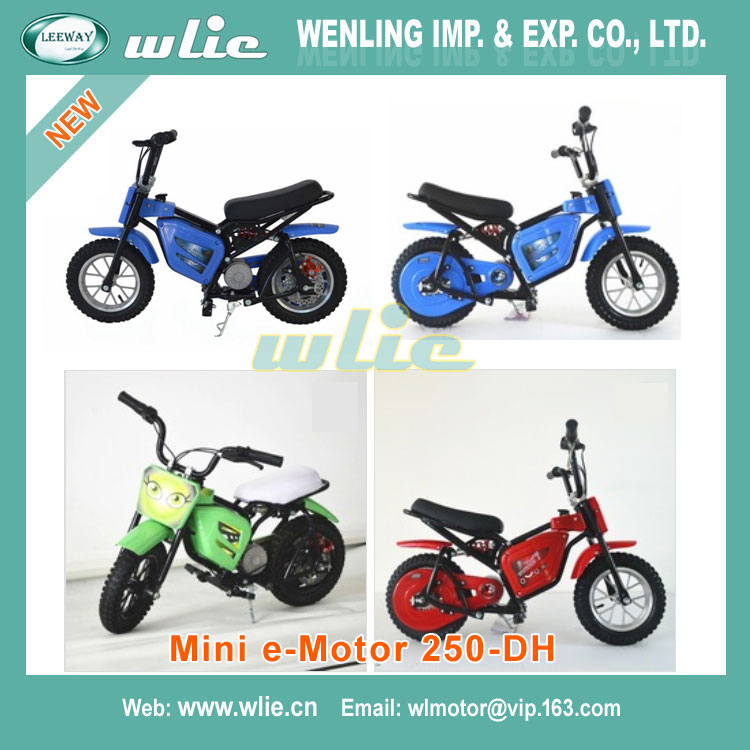

More Pictures

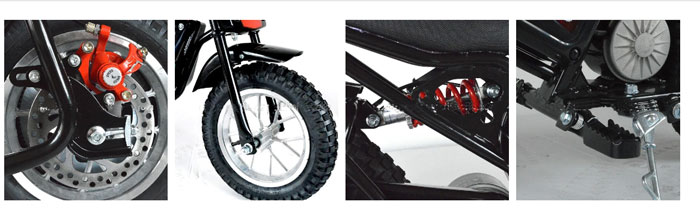

Detail Pictures



Opitions

Two Small Wheels




Product certificate

CE certificate
