Charly (Euro 4)
Specifications

MODELCharly 125 (Euro 4)
1.(L*W*H)mm1640*560*990
2.(SEAT HEIGHT)mm740
3.(WHEELBASE)mm1160
4.(CLEARANCE)mm150
5.(N.W./G.W.)kg76
6.(ENGINE)Single Cylinder, 4-Stroke, Air cooled
7.(DISPLACEMENT)ml123
8.(BORE*STROKE)52.4mm X 57mm
9.(COMPRESSION RATE)9.0:1
10.(MAX POWER)6.3±5%(7500±500r)/min
11.(START MODE)(KICK START)
12.(FUEL TANK)4.2L
13.(IGNITION MODE)CDI
14.(BATTERY)12V/4AH
15.(GEARS)(INTERNATIONAL 4GEARS)
16.(TYRE FRONT/REAR)3.50-10/3.50-10
17.(BRAKE)(Front:DISC Rear:DRUM)
18.(Qty/per container)34/20" 108/40"
19.(Carton Size)cm147*45*88

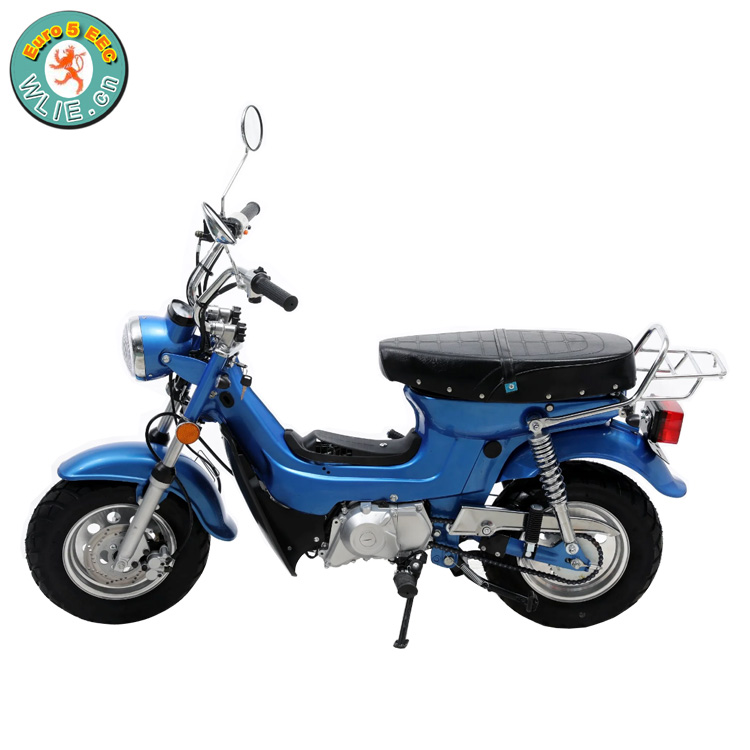

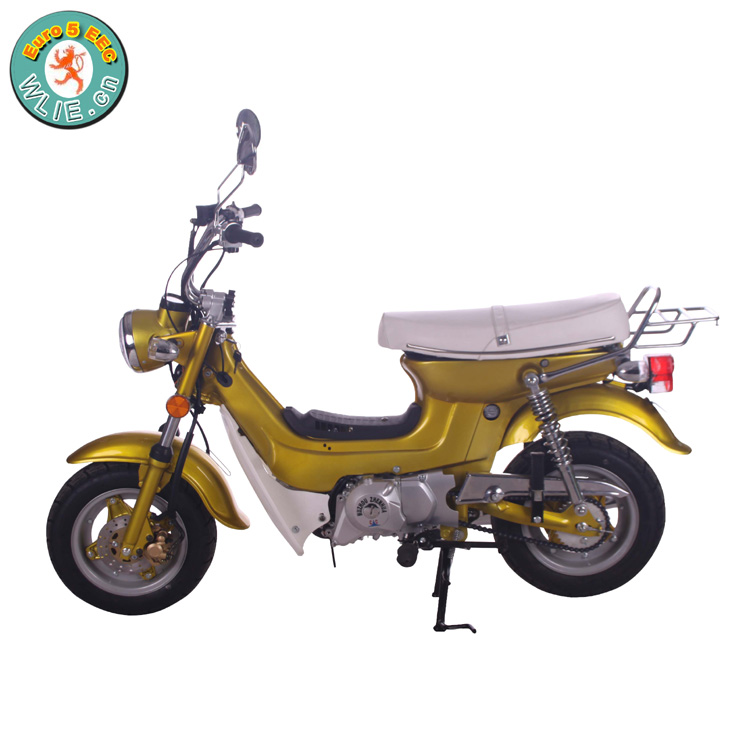

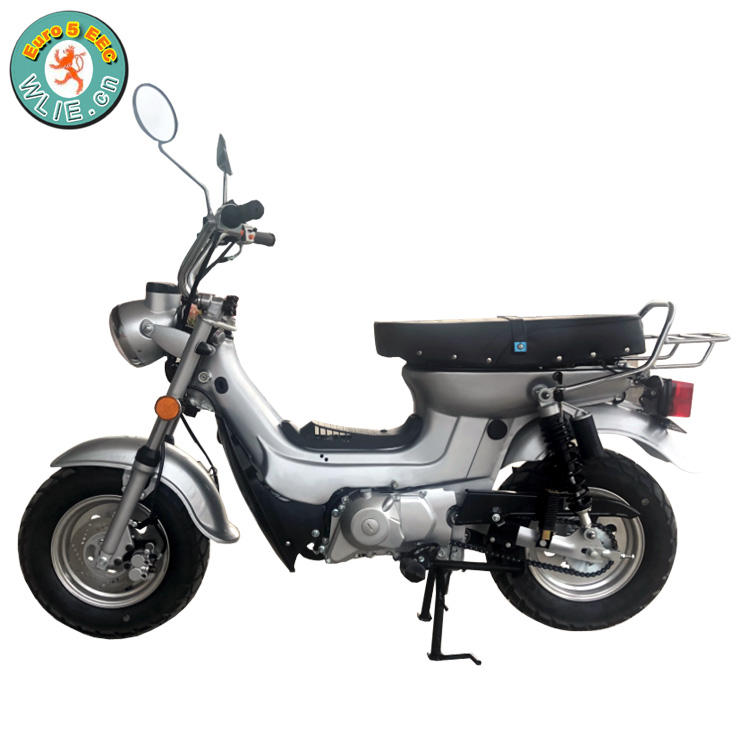

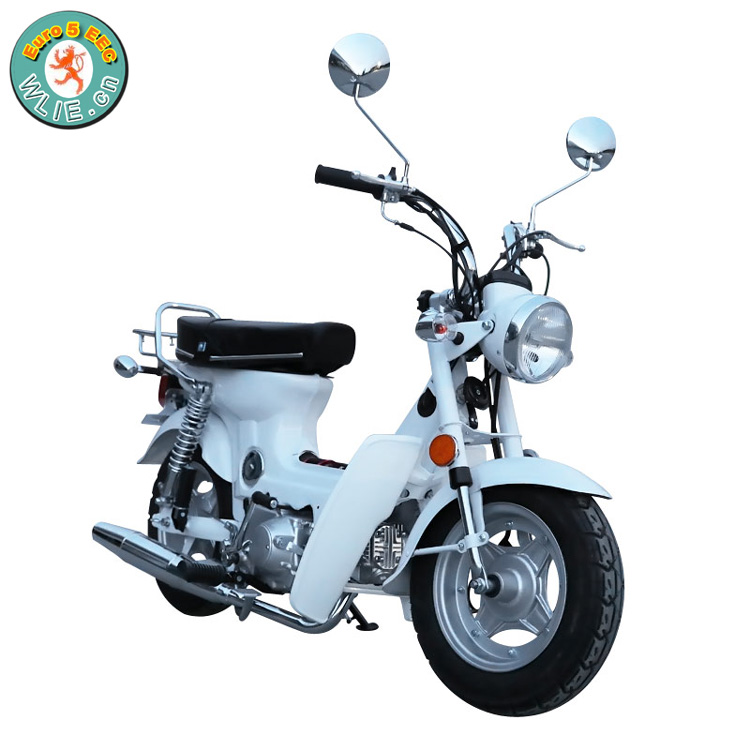

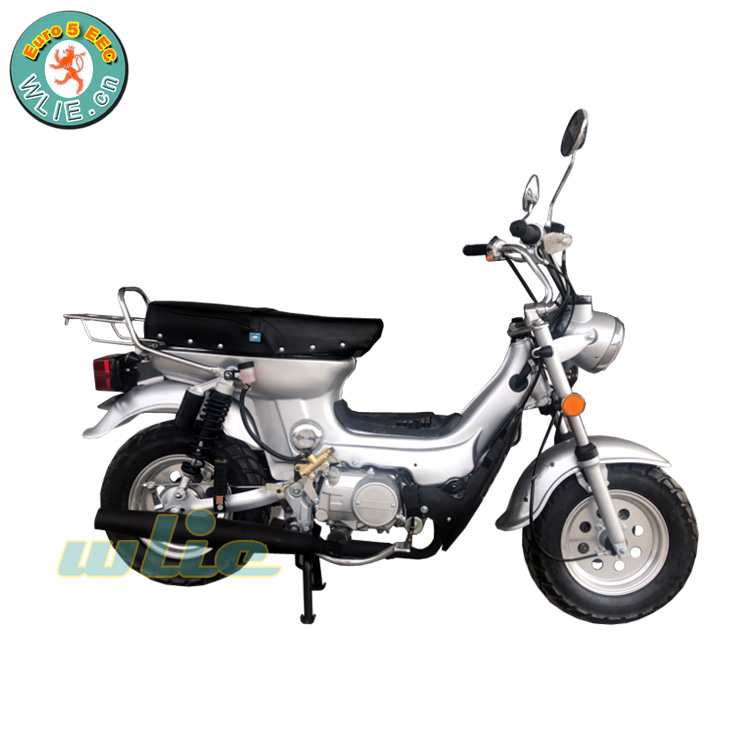

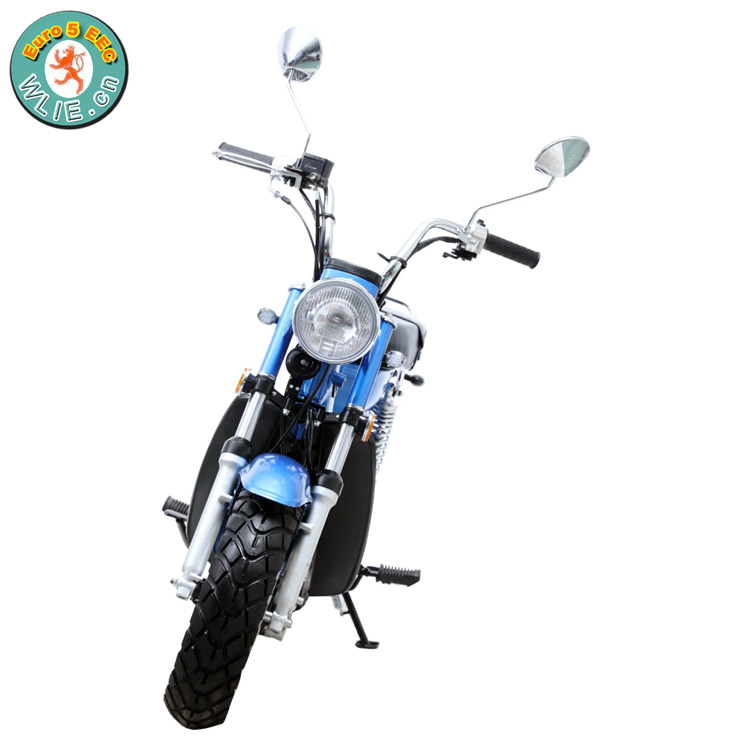

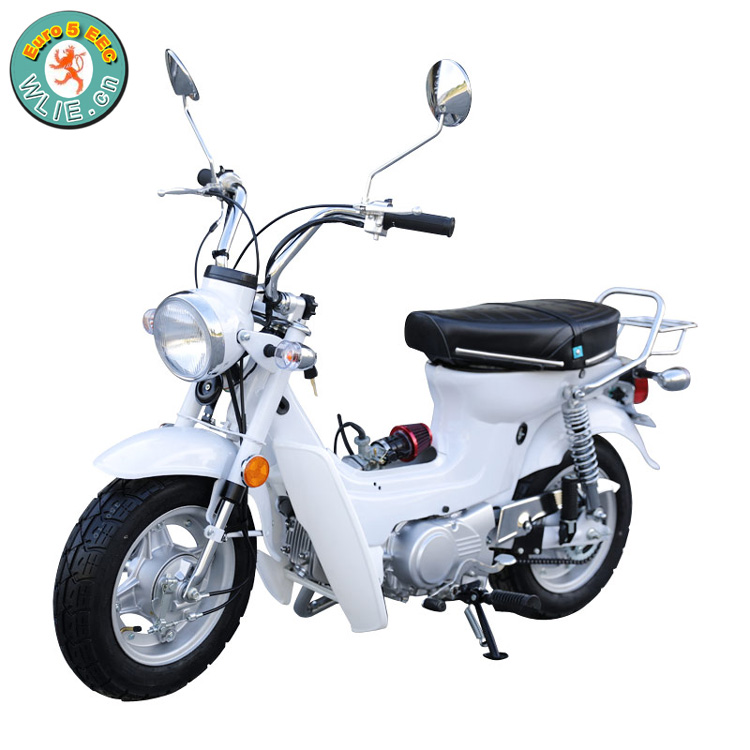

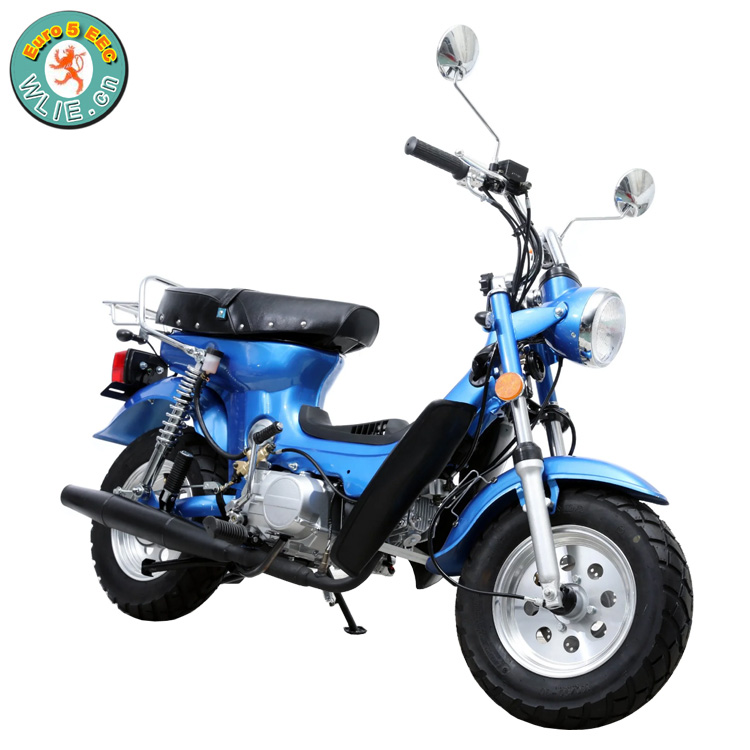

Color sample of the new product



Product certificate
