Maple 125-2S (Euro 4)
Maple 125-2S (Euro4)

 Displacement(ml) 124.6
 Engine NO. 152QMB
 Motorcycle body material ABS, PP
 Max speed(km/h) 80
 Fuel tank capacity(L) 5.5
 Tyre size 3.50-10  3.50-10
 Brake Mode Disc/drum
 Dimensions (length*width*height) (mm) 1820*685*1135mm
 Engine type single cylinder,4 stroke
 Cylinder diameter(mm) 52.4
 Piston stroke 57.8
 Battery type  12V7A
 Max power and rotate speed  6.0kw(3.00HP)/7500r/min
 Max torque and rotate speed 8.4N.m/6500r/min
 Minimum ground clearance(mm) 95
 Compression ratio 9.2:1
 Unladen mas(kg) 93
 Load capacity(kg) 150
 Economic oil consumption ≤2.8
 Climbing capacity Angle: 17 degrees
 Minimum turning radius(mm) 1305




Selling Points of the product

1,It canmatch multicolor and stickers

2,we can do125CC power, also do we can do 50CC and 150CC models.

3,Front andrear vacuum tire :durable,fasten, balanced ,and beautiful. thetire is wear-resisting and aiti-explosion.

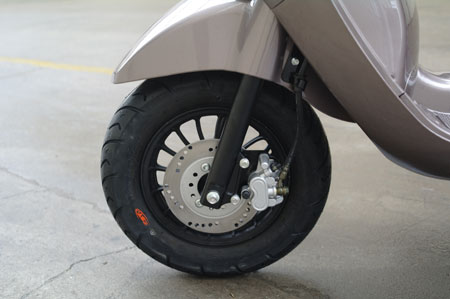

4,Disc brakehas high safety performance and has no noise

5,The motorcycle caninstall rear box and rear carrier

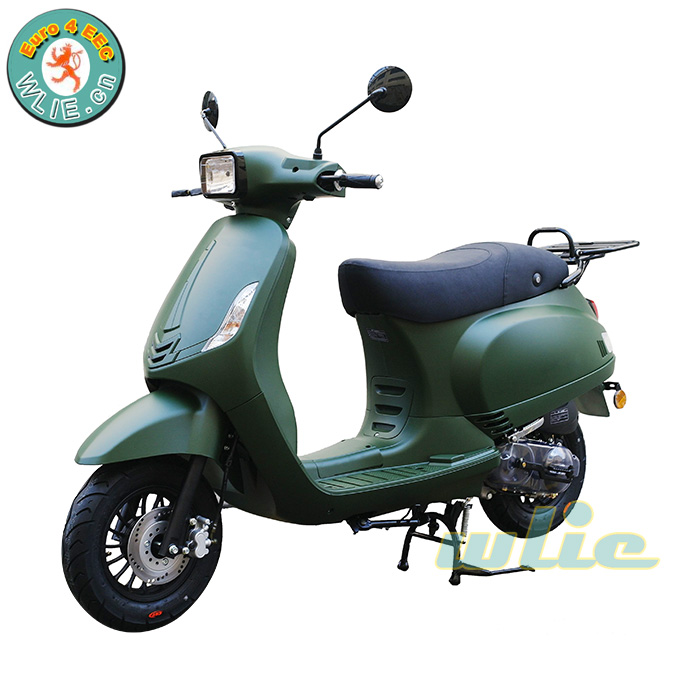

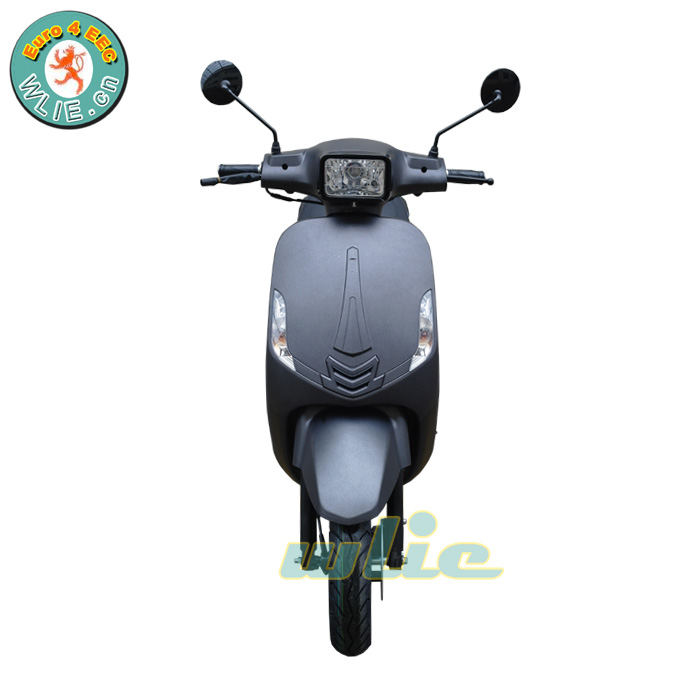

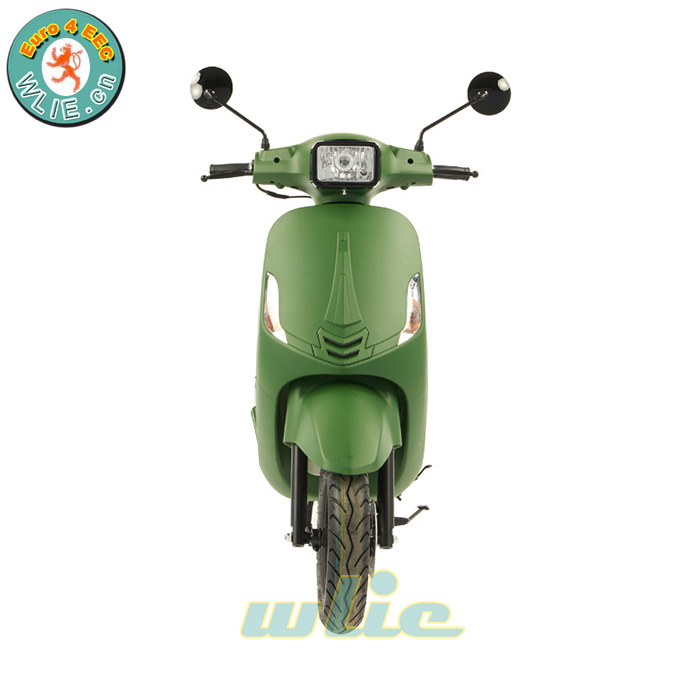

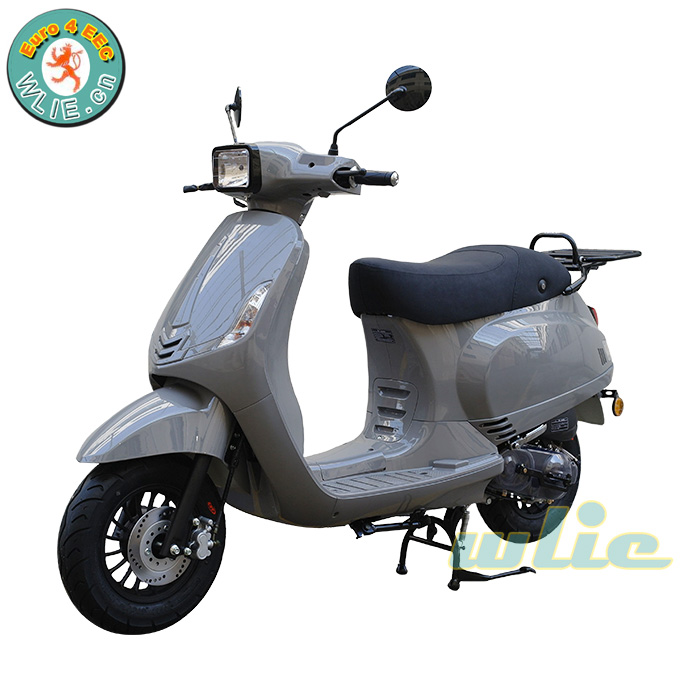

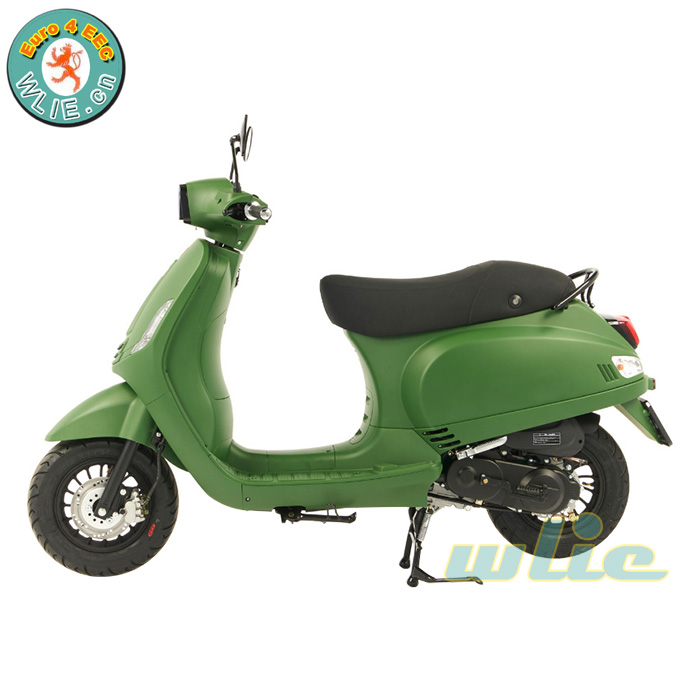

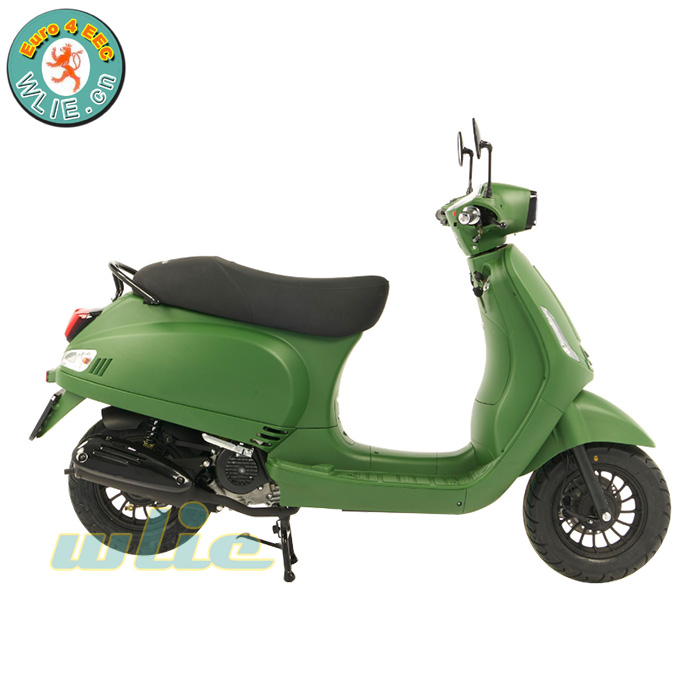

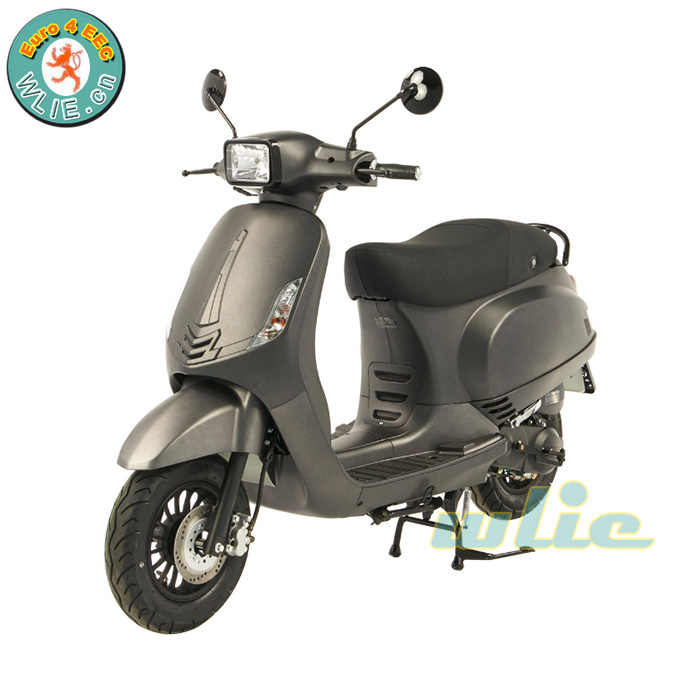

Multi-angle pictures of the product

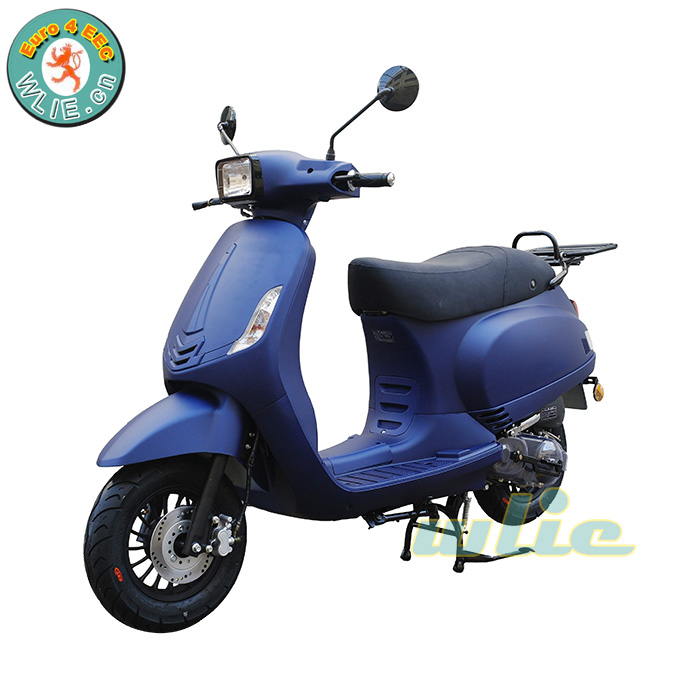

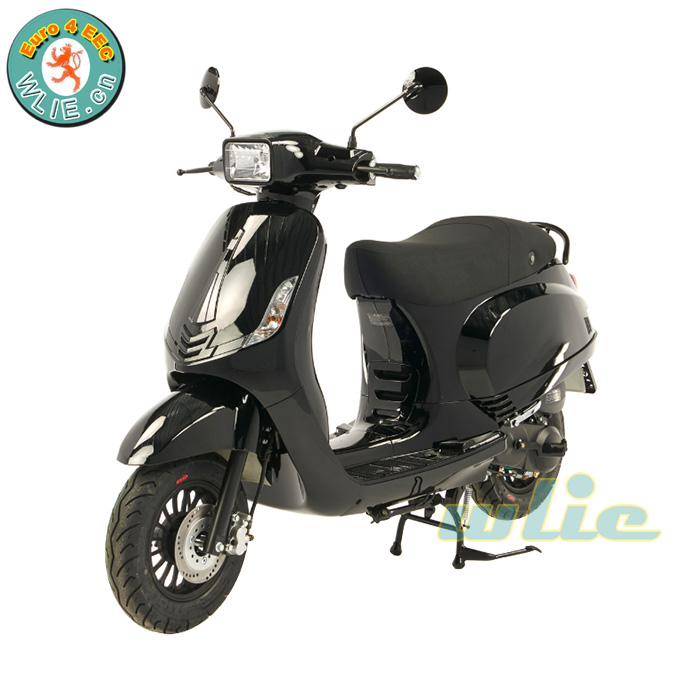

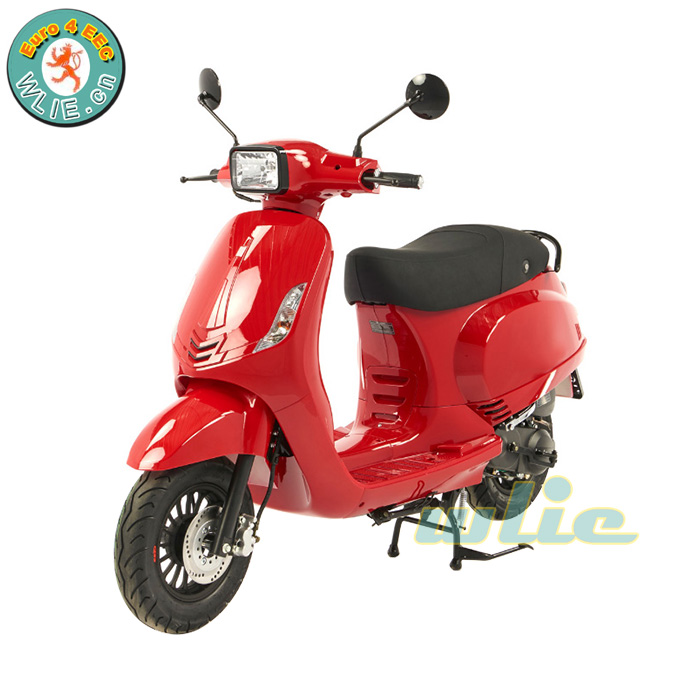

Color Sample of the product

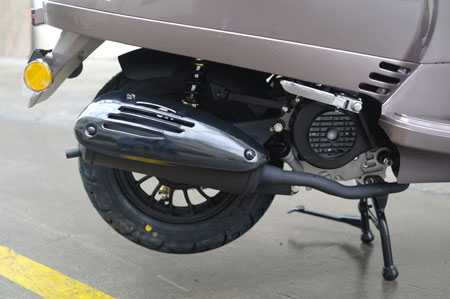

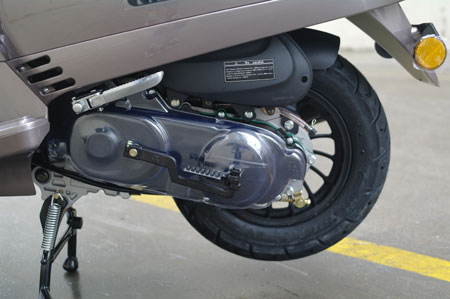

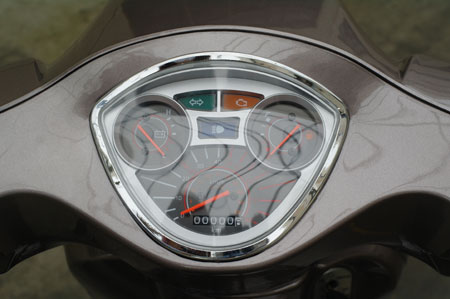

Detail pics of the product



Certificate of the product



Accessories for Maple-2S

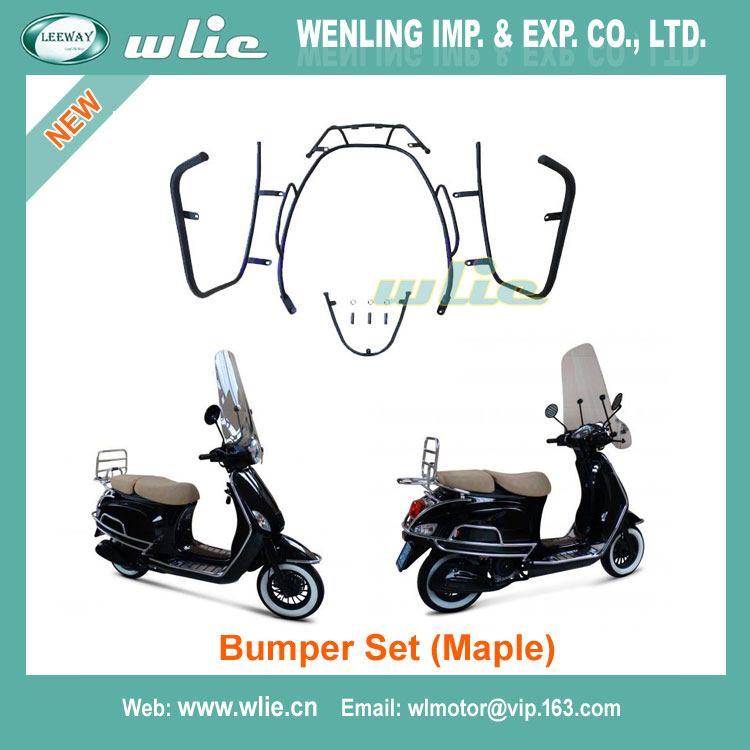

Check the link: Bumper Set for Maple-2S

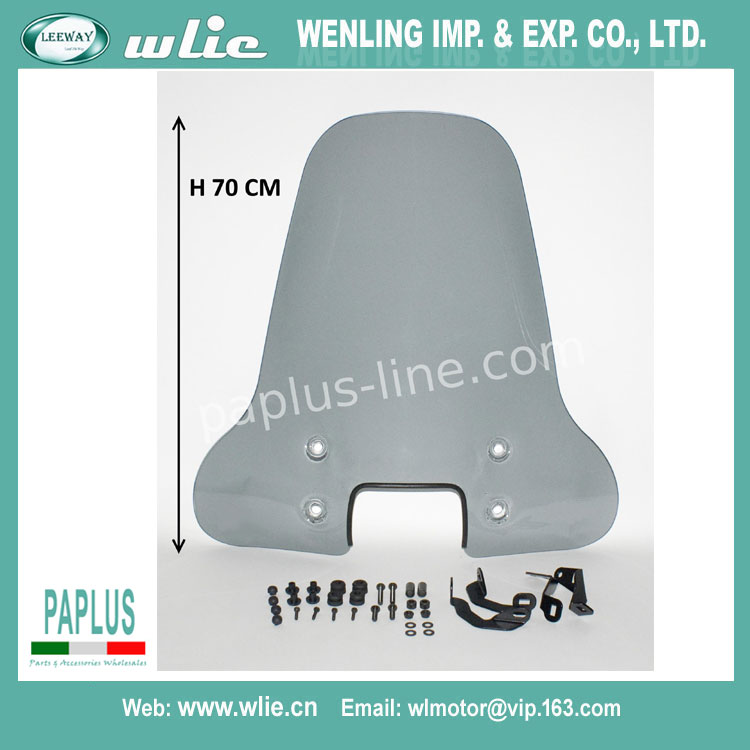

Check the link: Windshield for Maple-2S
