Maple 50 (Euro 4)

With Dellorto E-Carb system, Euro 4 EEC Homologated

Specification

Drive system

Belt drive

Front and rear shock

Front hydraulic rear spring shock

Electric and speedmeter

Eight level direct current , 12V7A battery,speedmeter(speed,mileage,fuel tank capacity)

Lighting system

Front headlamp,front and rear winker,rear tail light

Exhaust system

Mute exhaust

Switch control system

Function left and right swtich

Cylinder diameter

39mm

Piston stroke

41.4

Battery type

12V7A

Max power and rotate speed

2.2KW(3.0HP)/7500rpm

Max torque and rotate speed

3.01/5000(N.m/rpm)

Minimum ground clearance(mm)

95

Compression ratio

10.2:1

Unladen mass(kg)

93

Load capacity(kg)

150

Economic oil consumption

≤2.0

Climbing capacity

Angle: 30 degrees

Minimum turning radius

1750MM

Speed change

V type belt stepless speed change



1. Selling Points of the product:

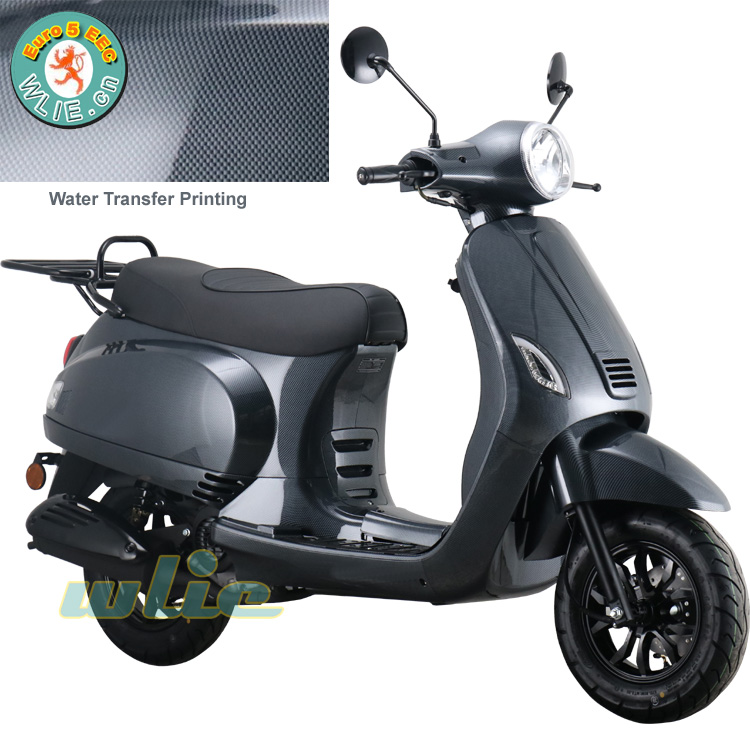

1,It canmatch multicolor and stickers

2,we can do125CC power, also do we can do 50CC and 150CC models.

3,Front andrear vacuum tire :durable,fasten, balanced ,and beautiful. thetire is wear-resisting and aiti-explosion.

4,Disc brakehas high safety performance and has no noise

5,The motorcycle caninstall rear box and rear carrier

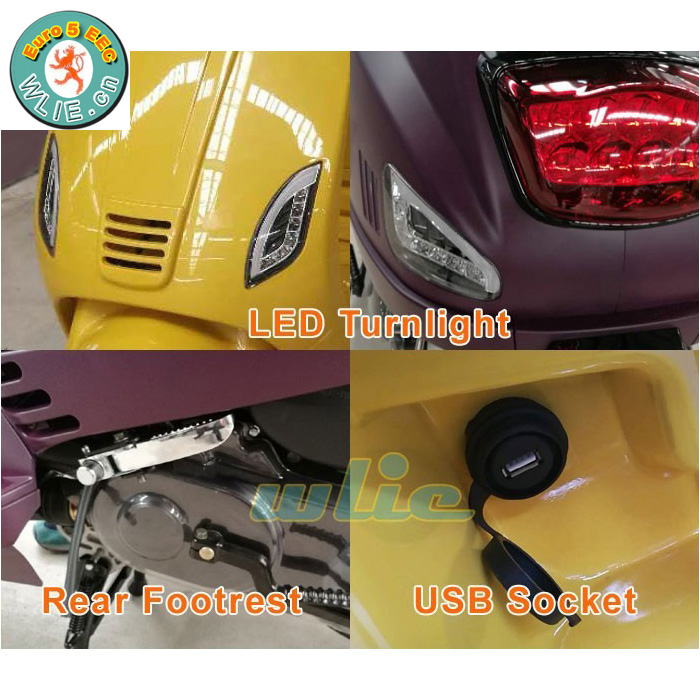

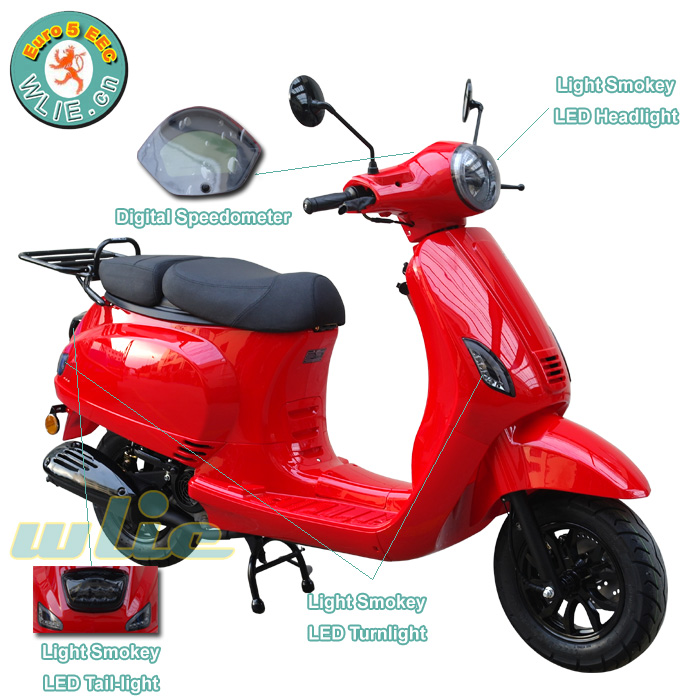

2. LED Turnlights version:

1,with LED turnlights
2,with rear footrest
3,with USB socket

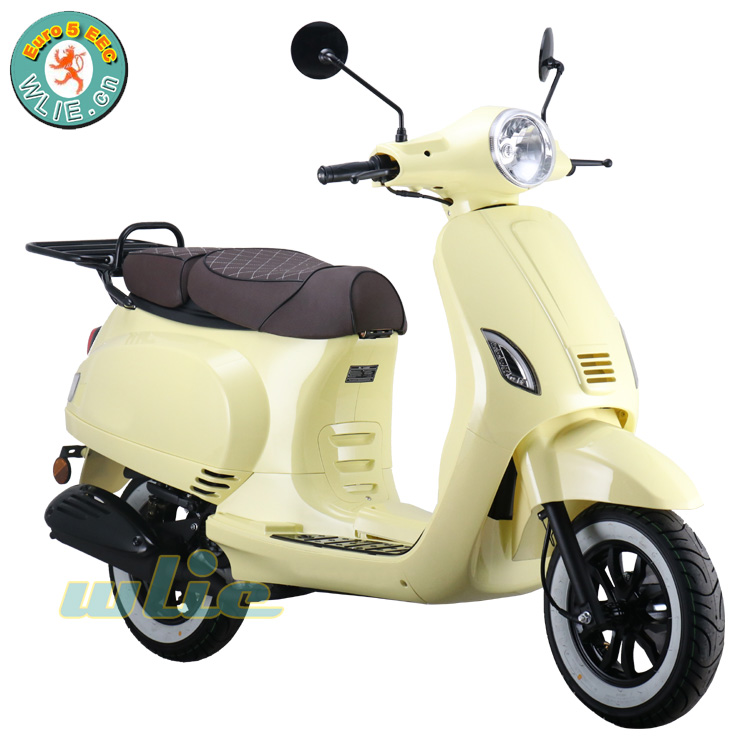

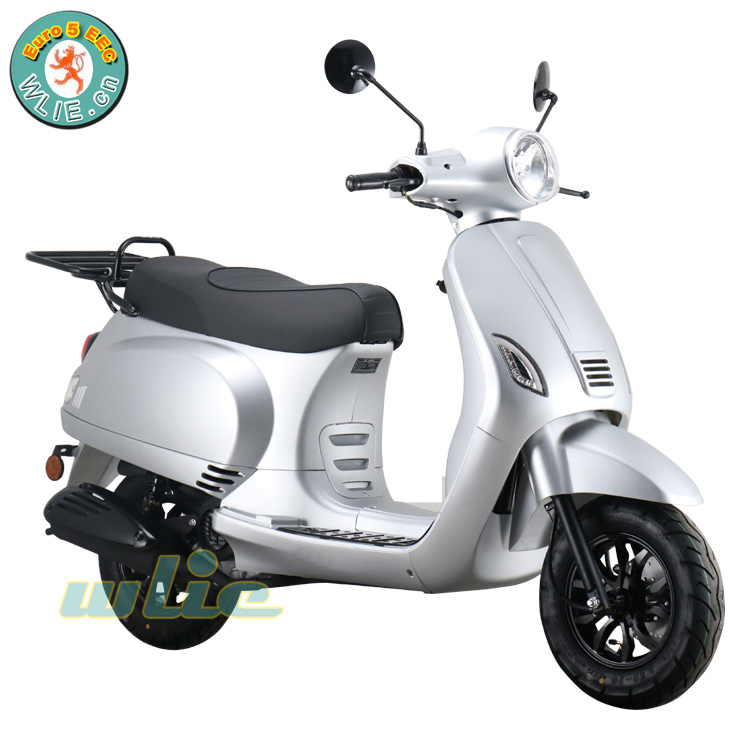

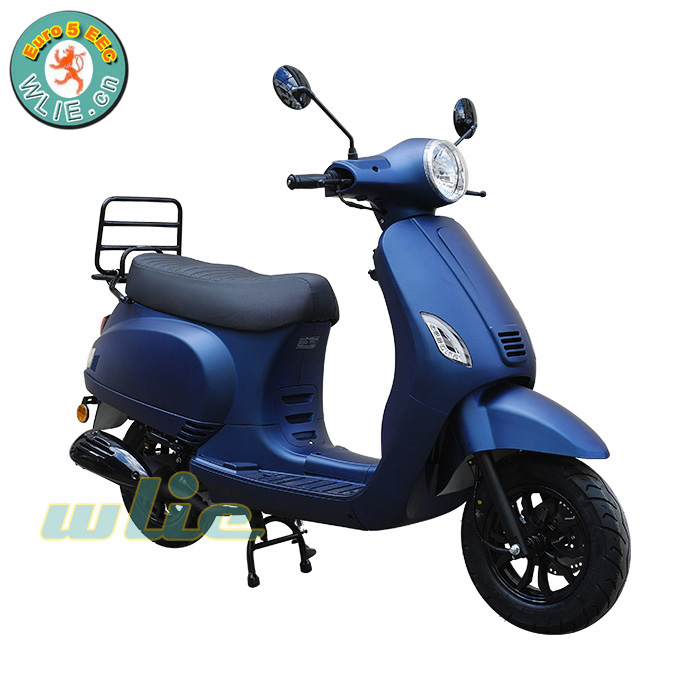

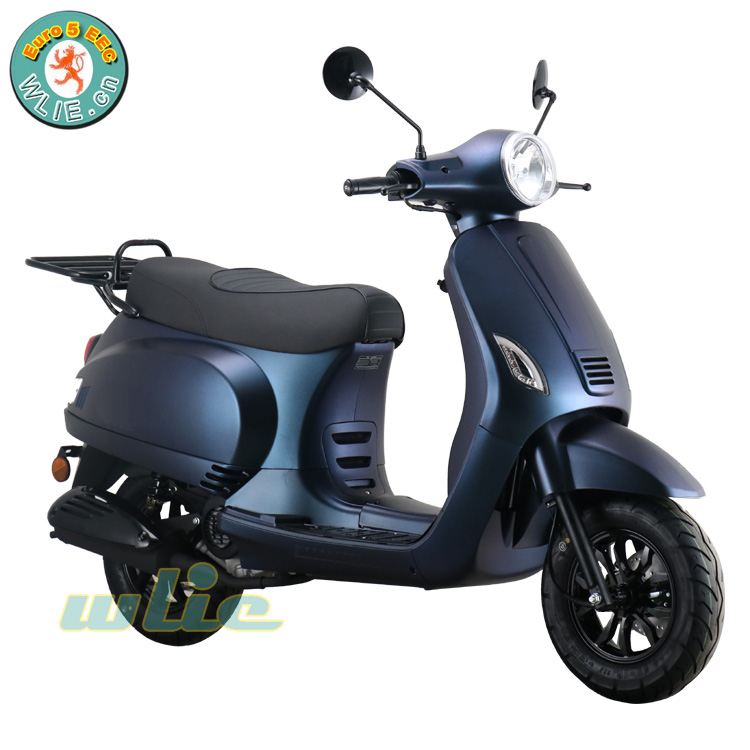

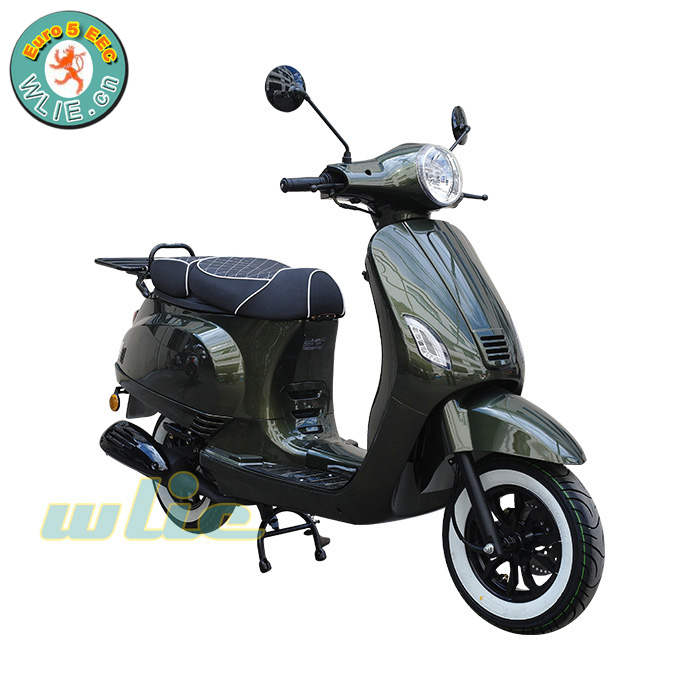

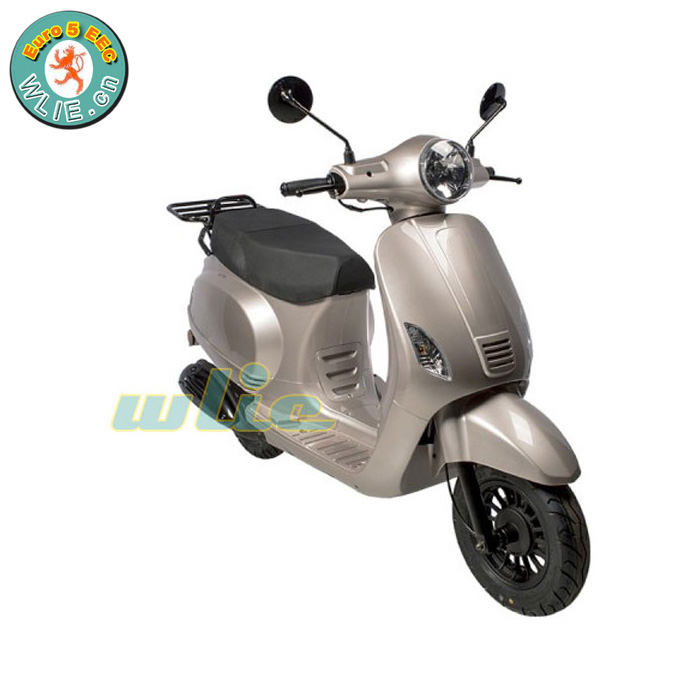

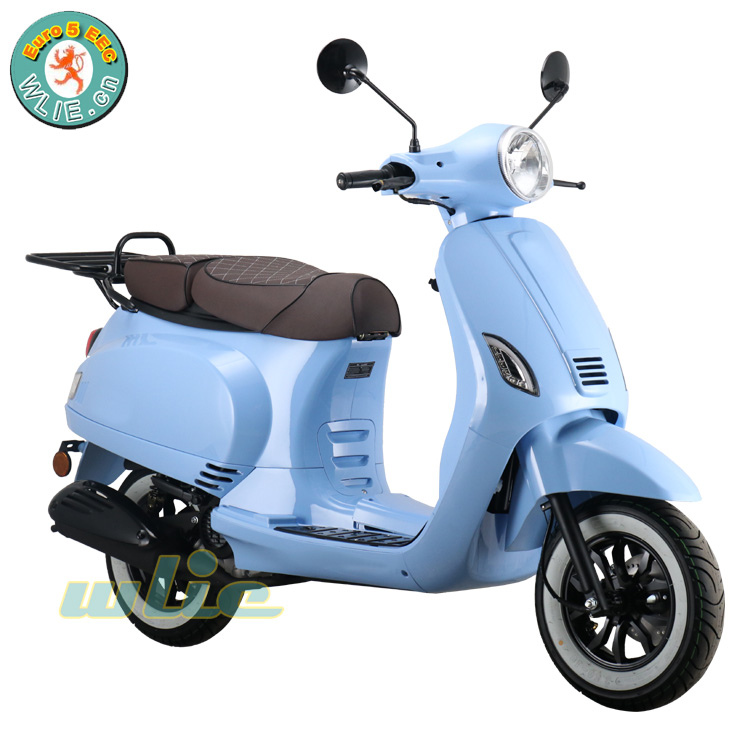

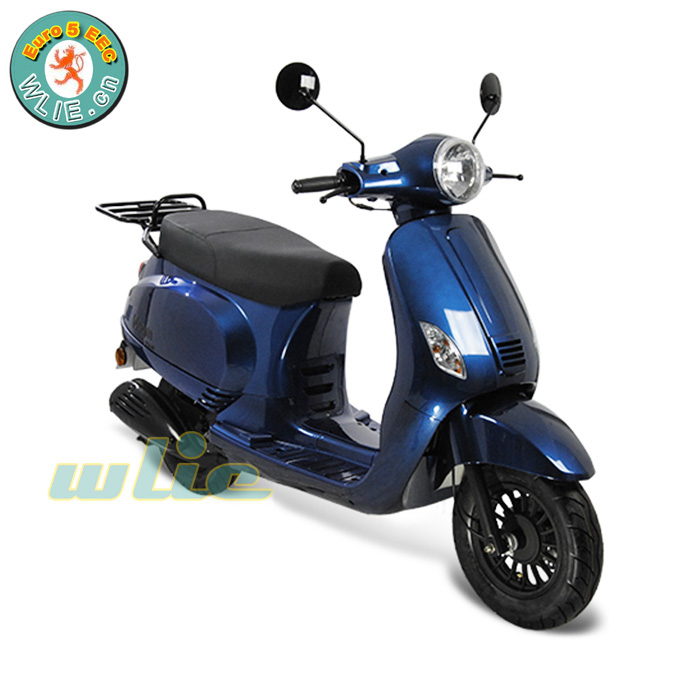

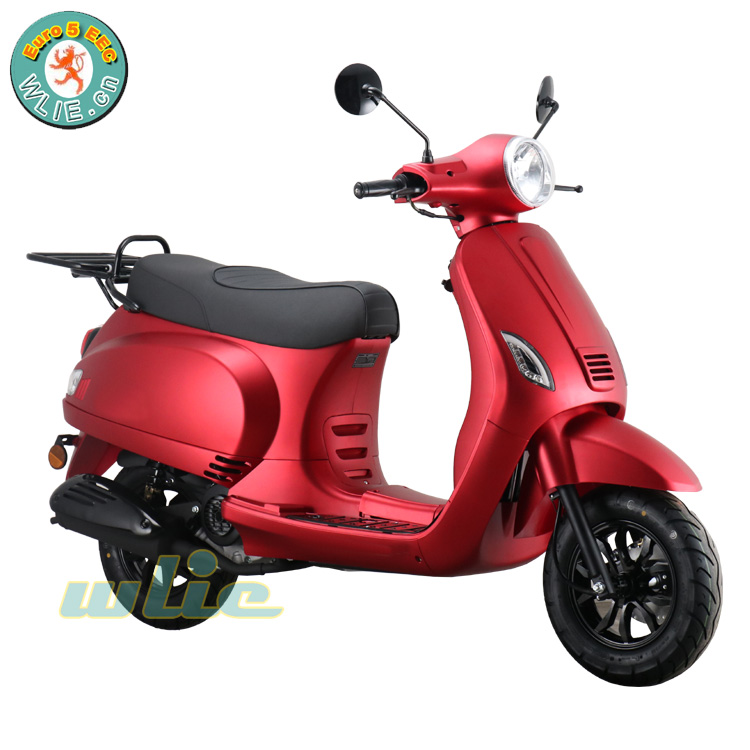

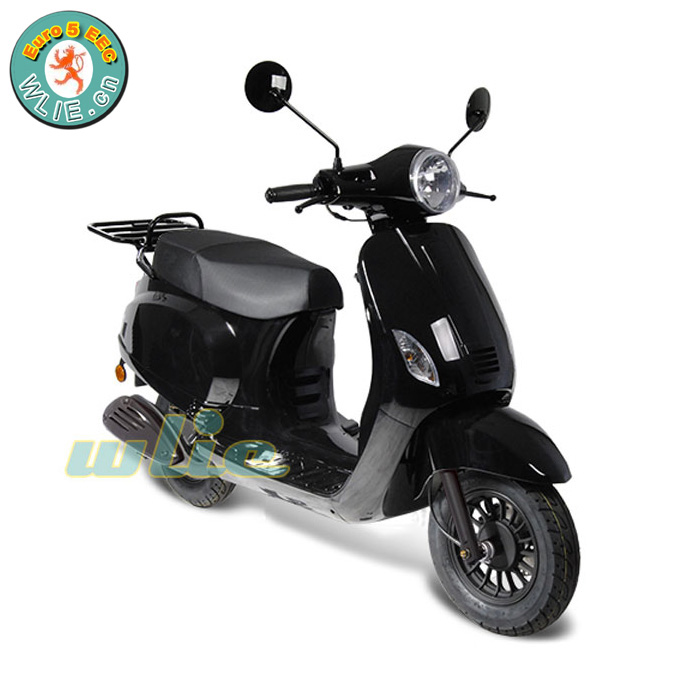

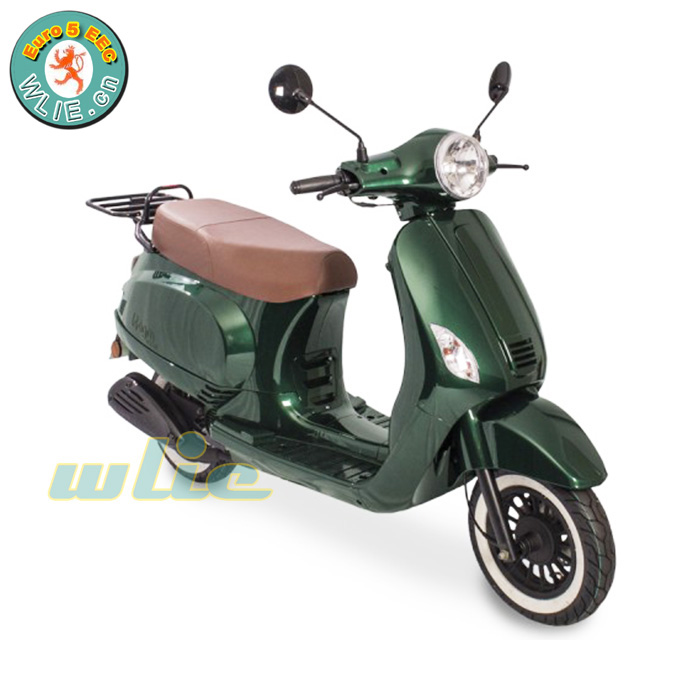

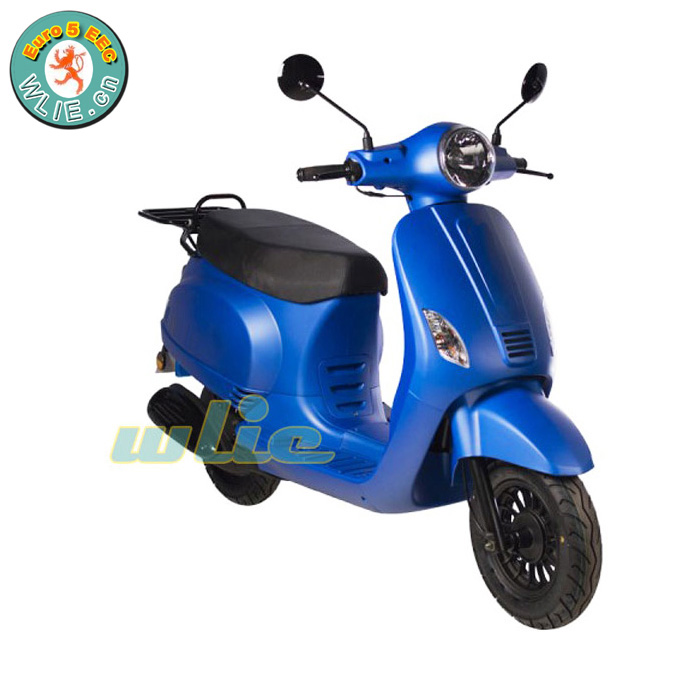

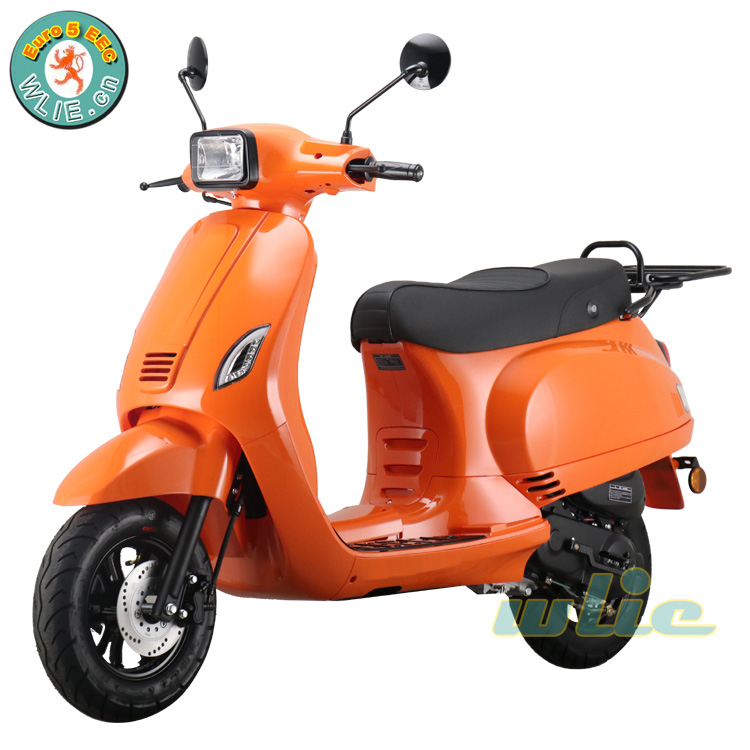

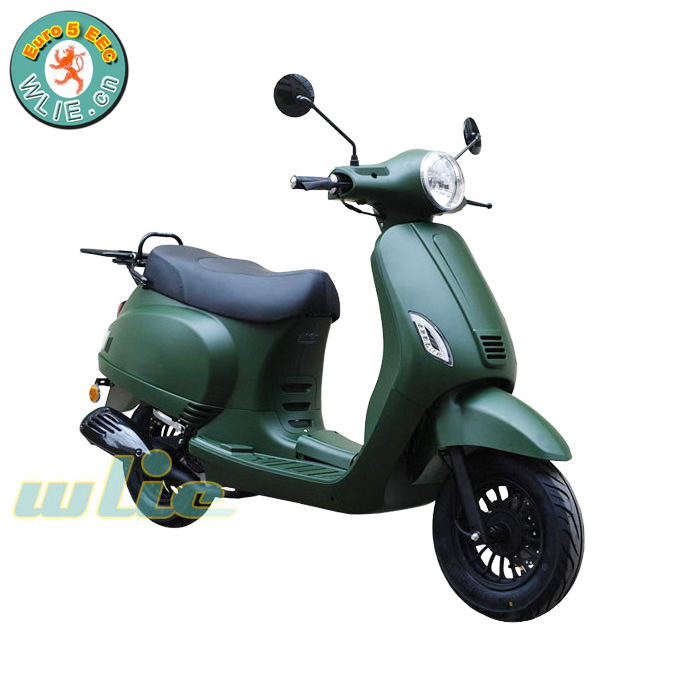

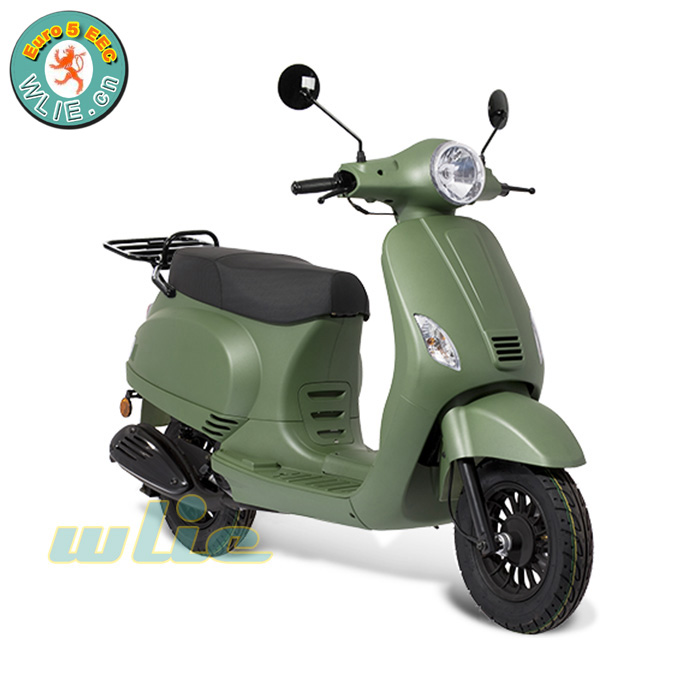

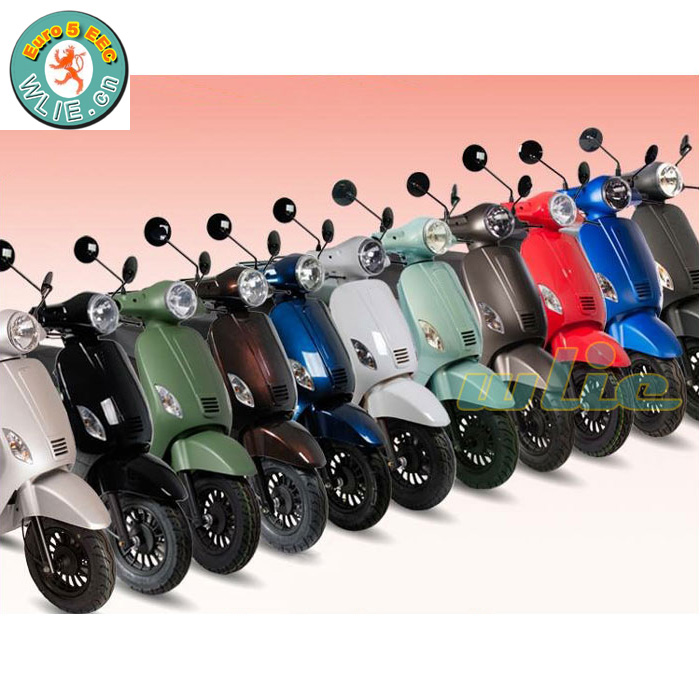

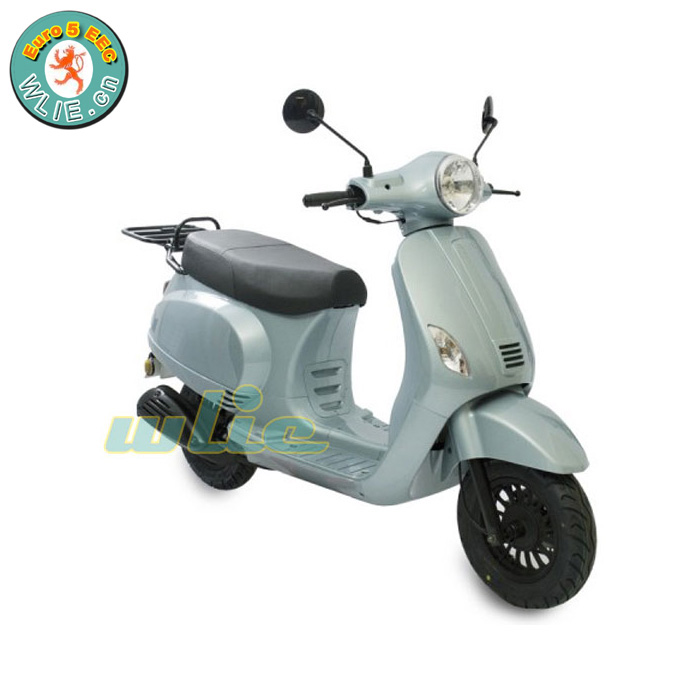

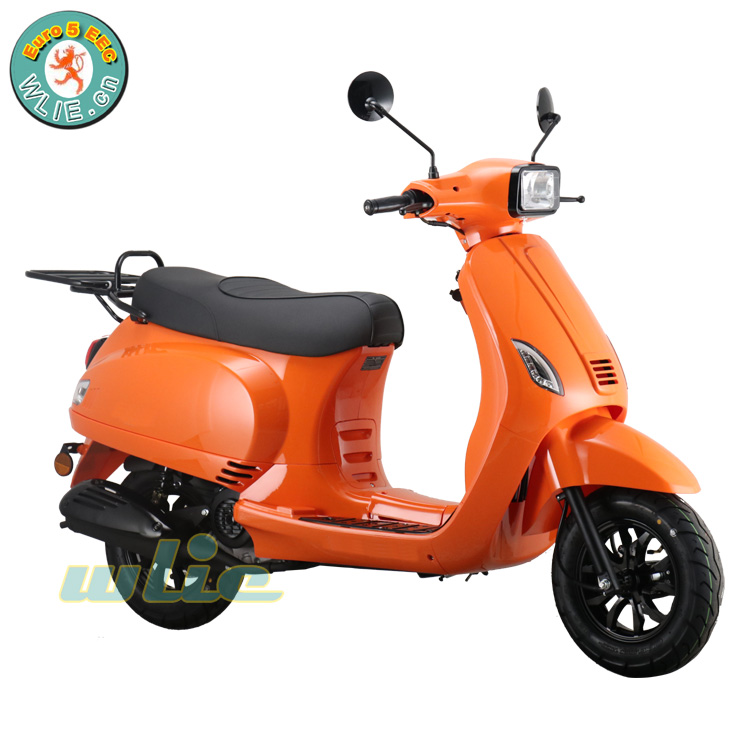

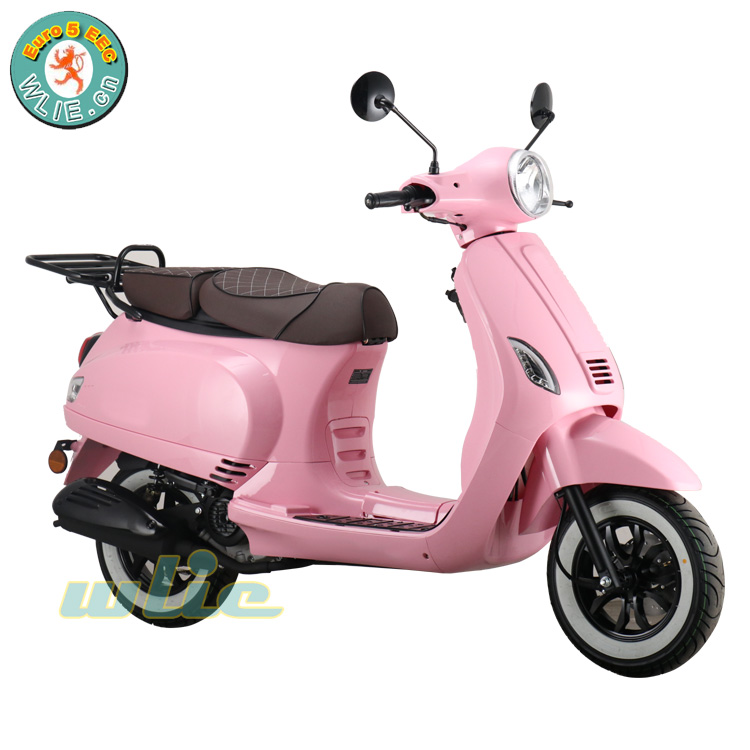

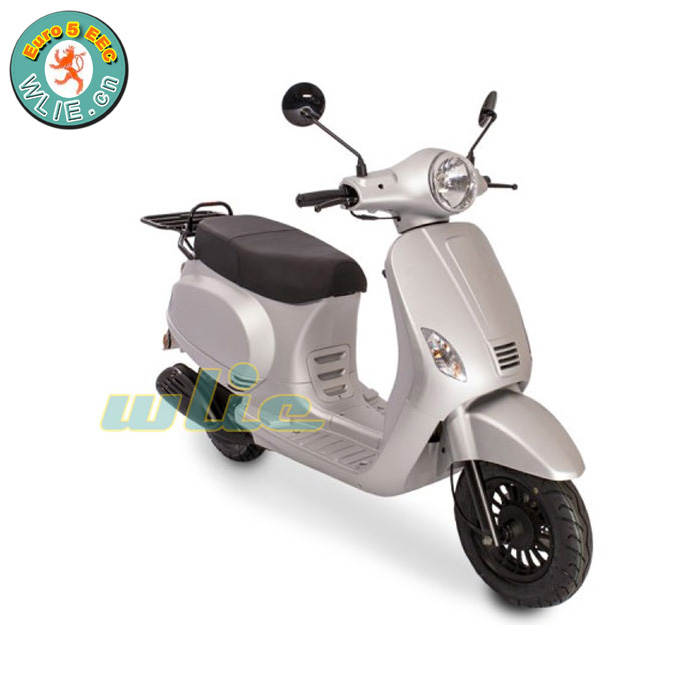

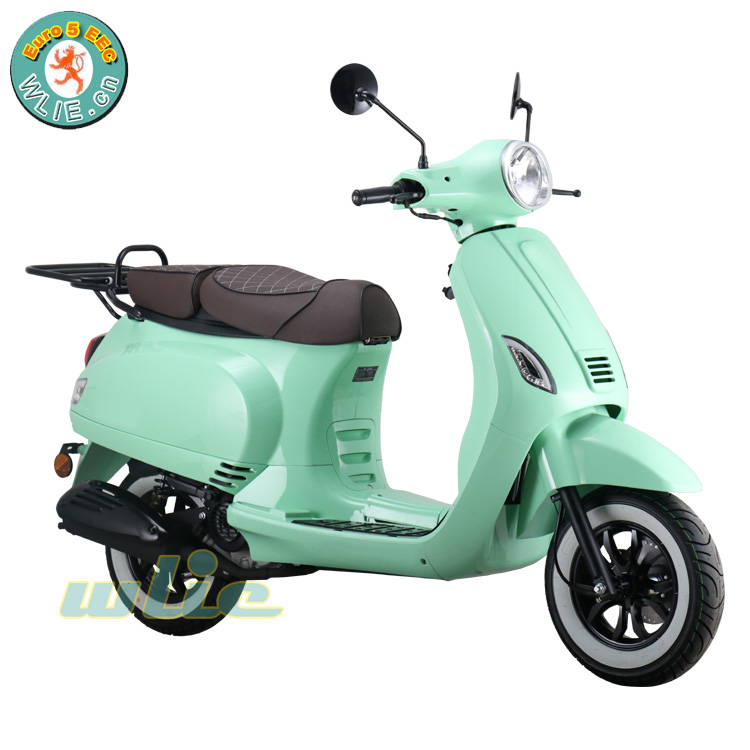

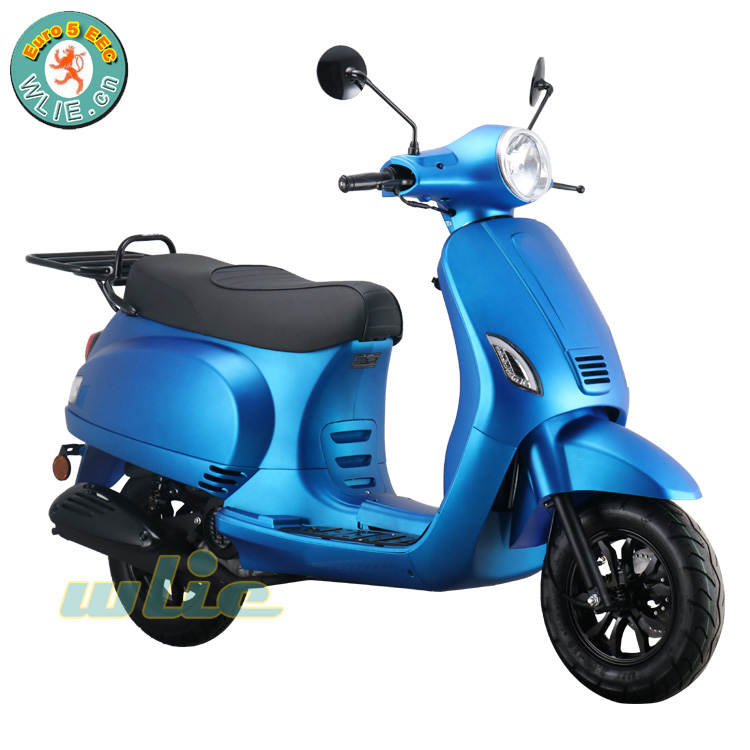

  3.Color sample of the product:

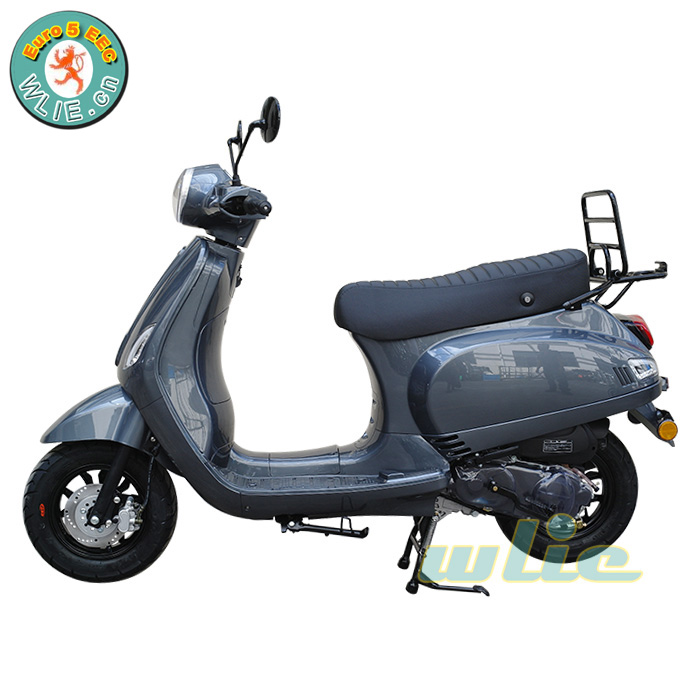

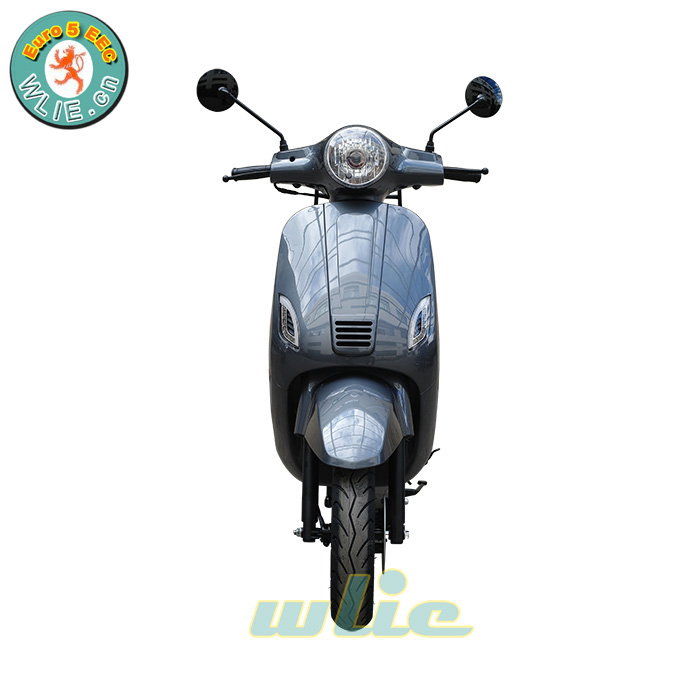

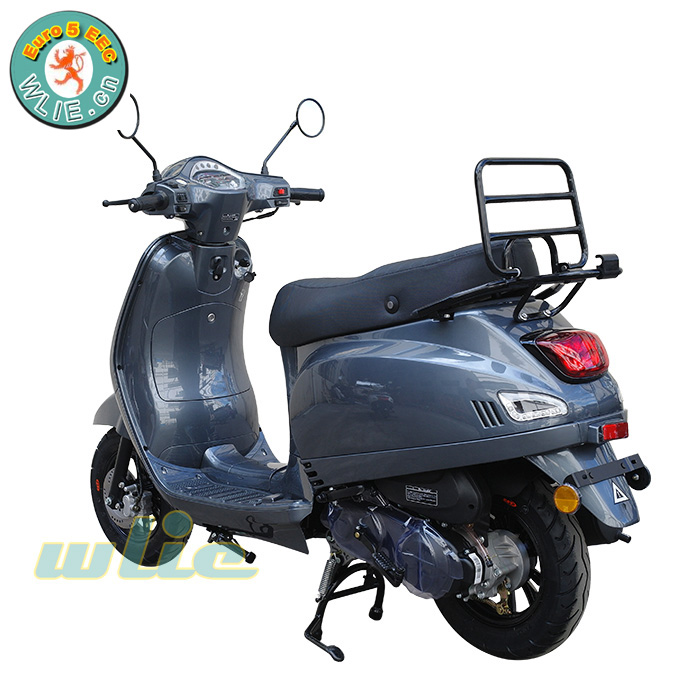

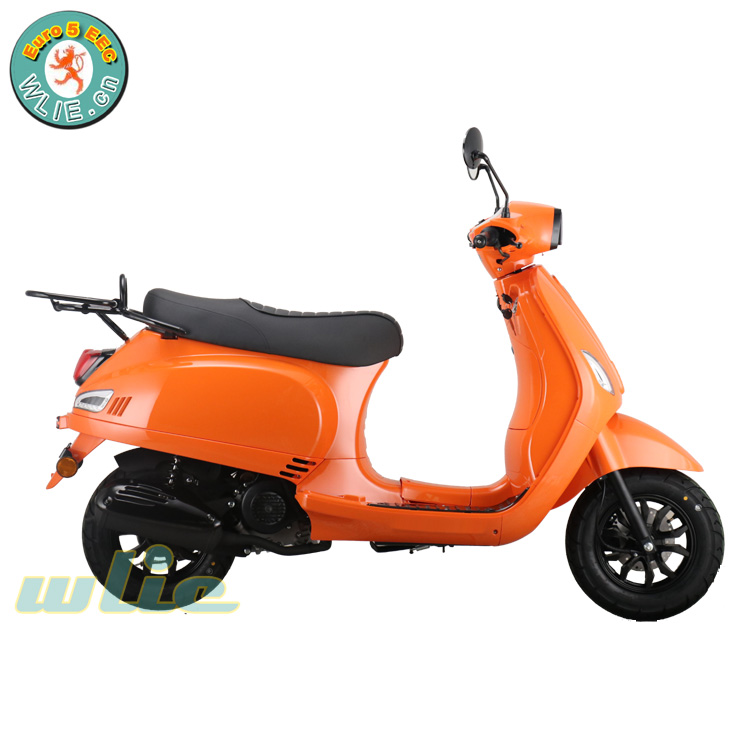

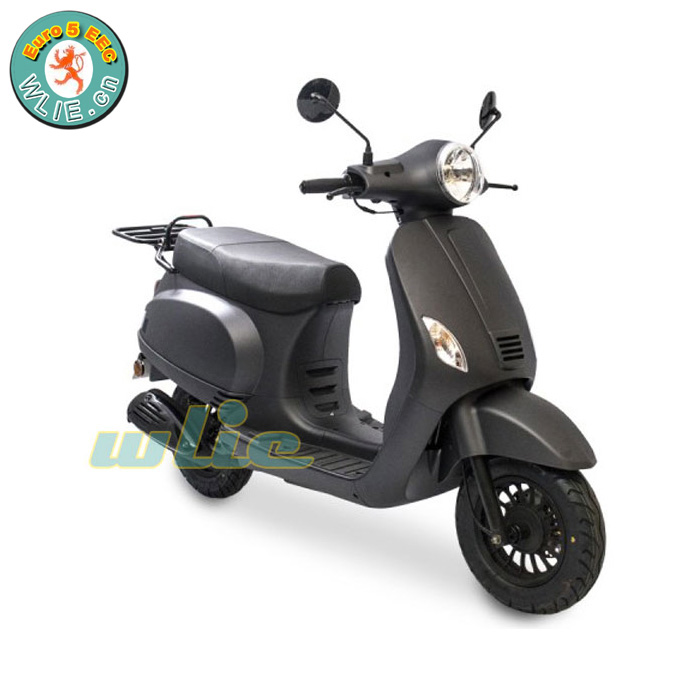

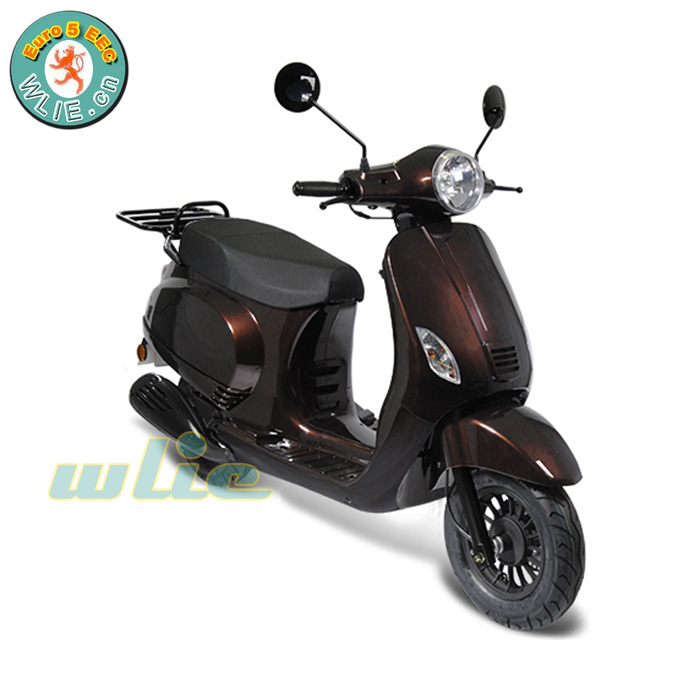

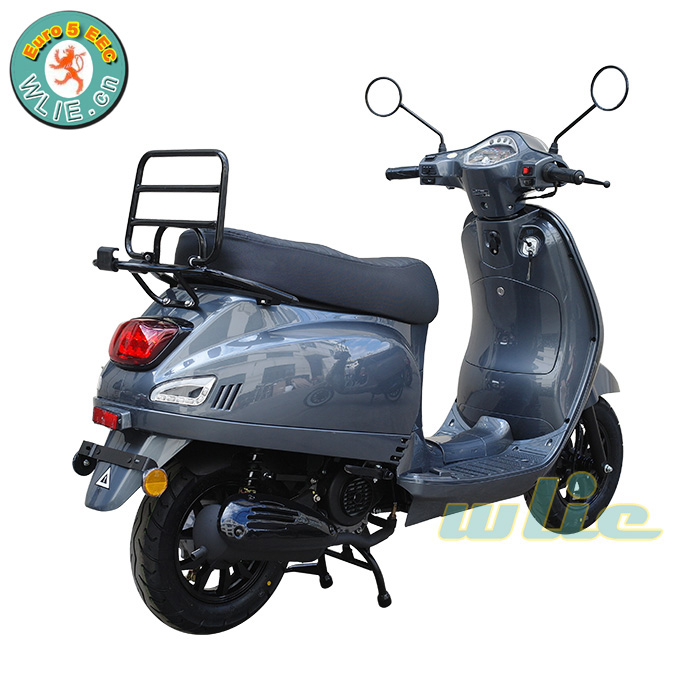

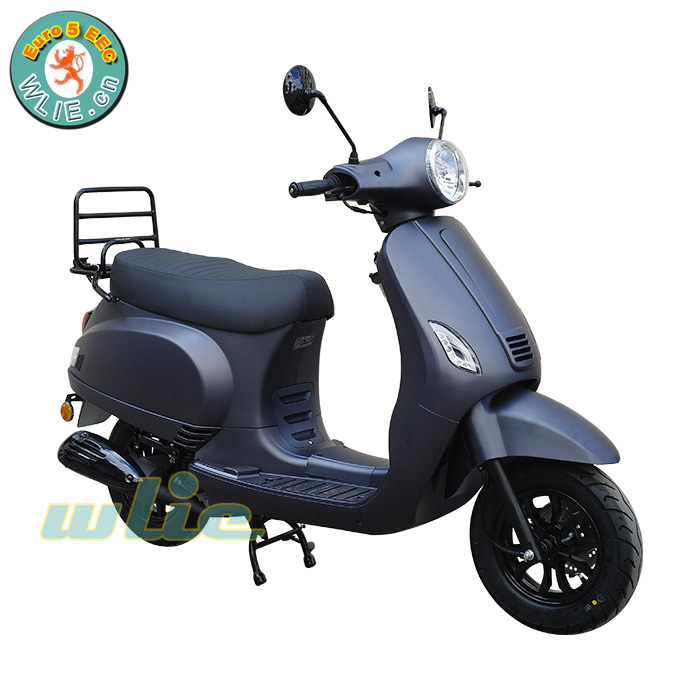

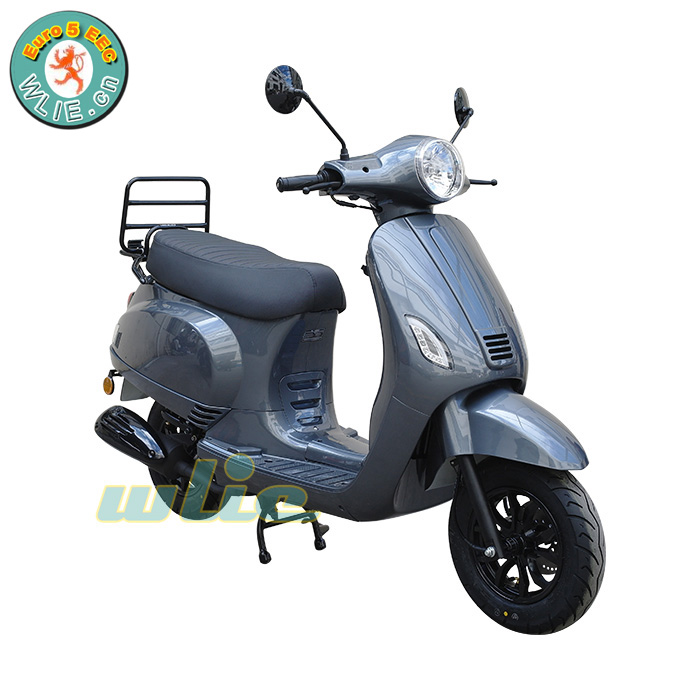

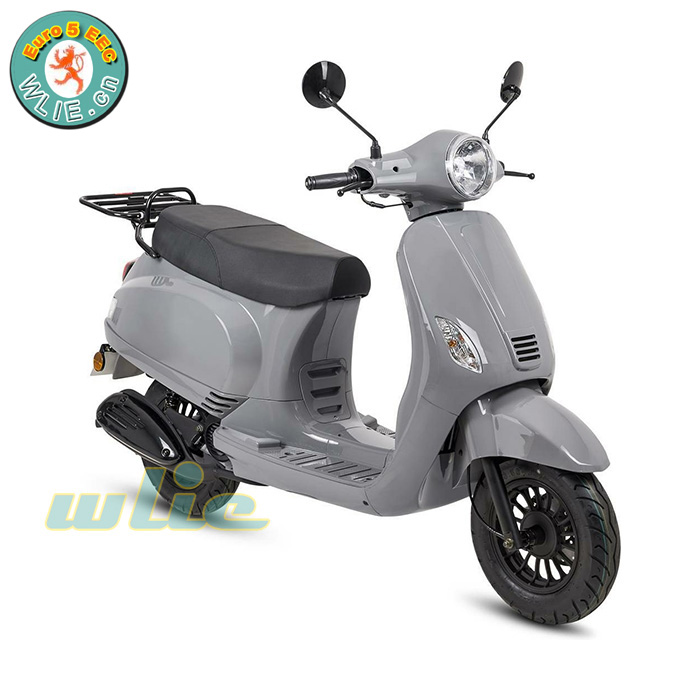

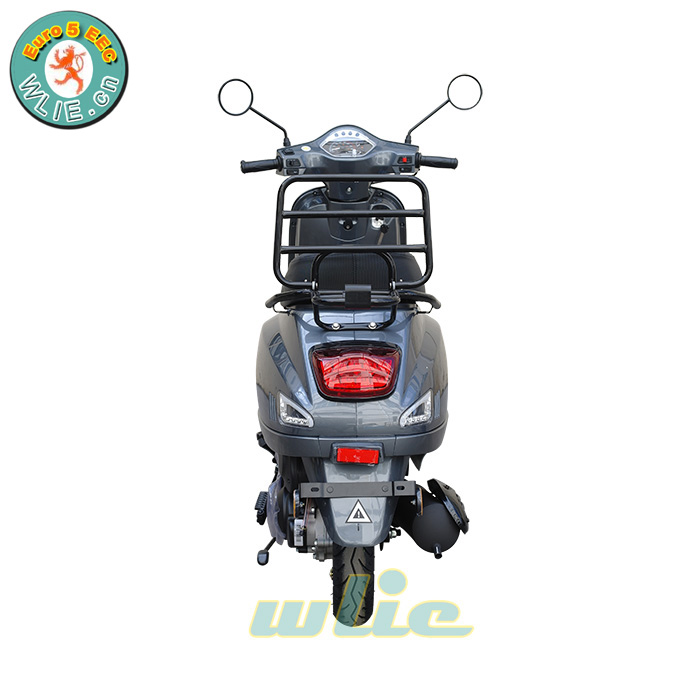

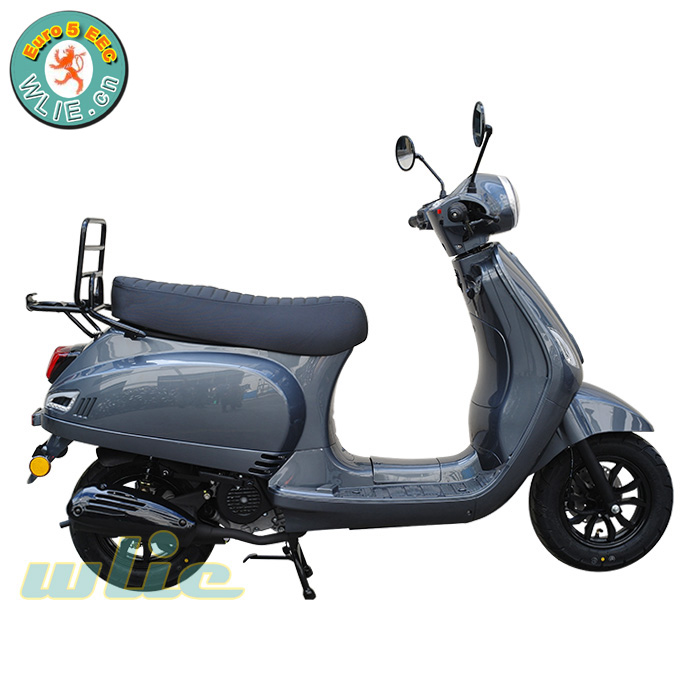

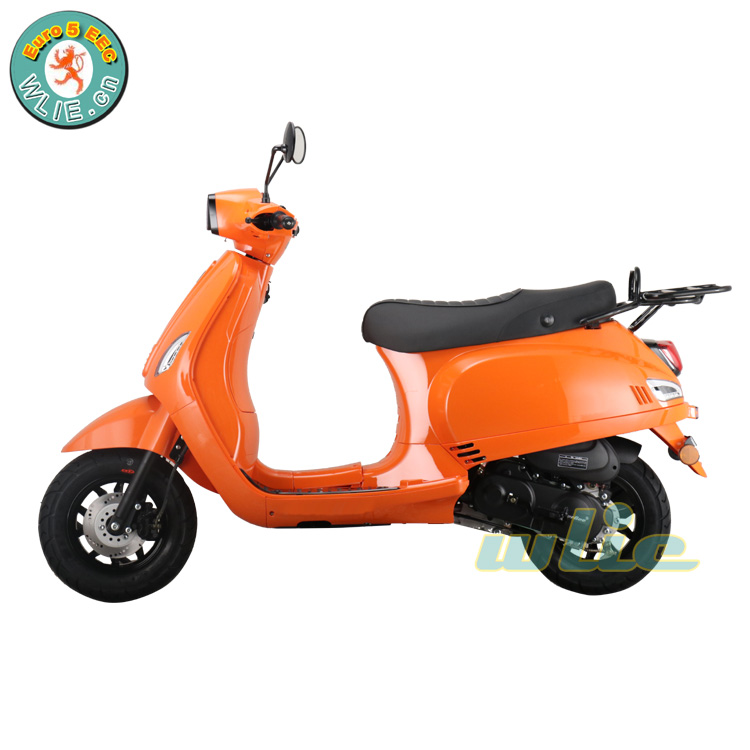

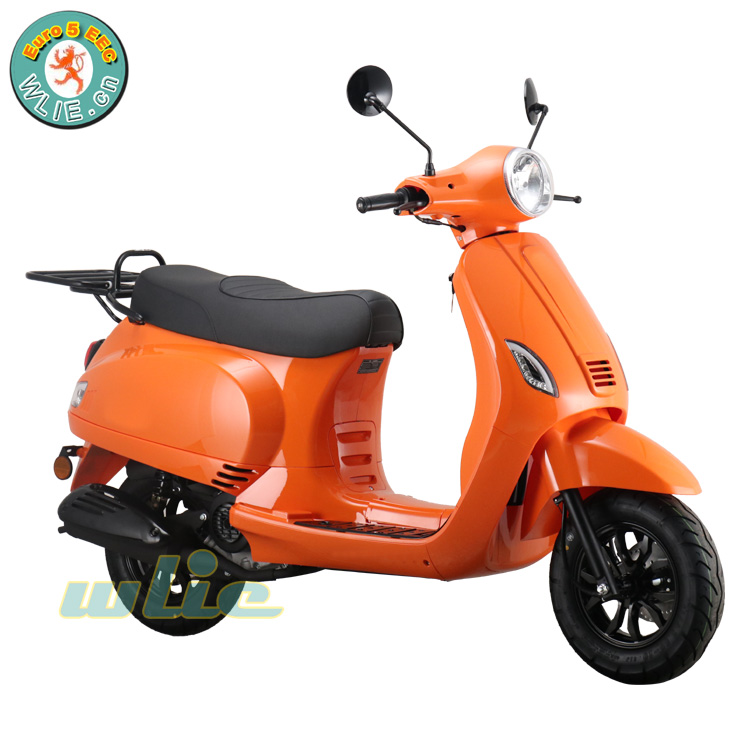

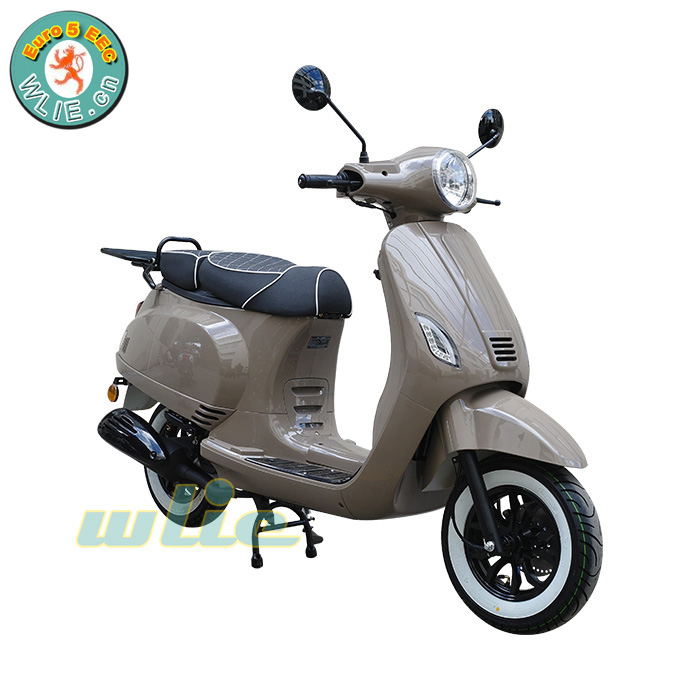

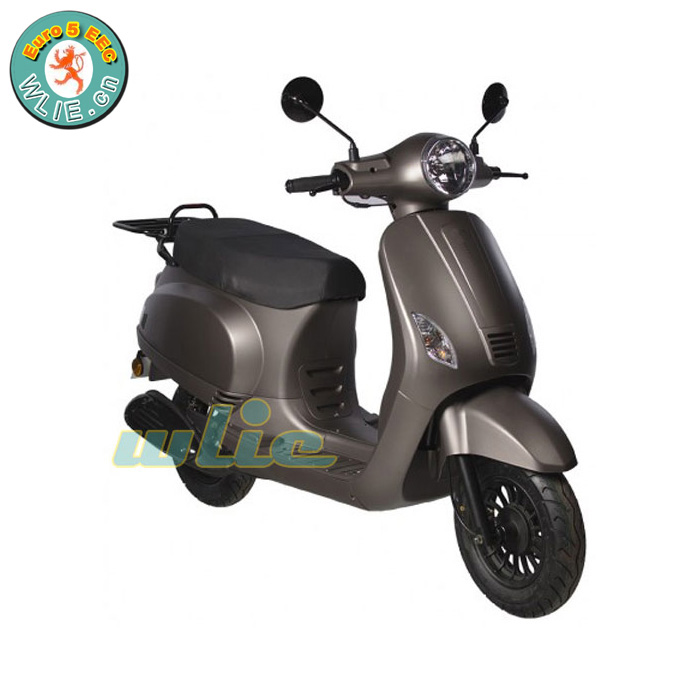

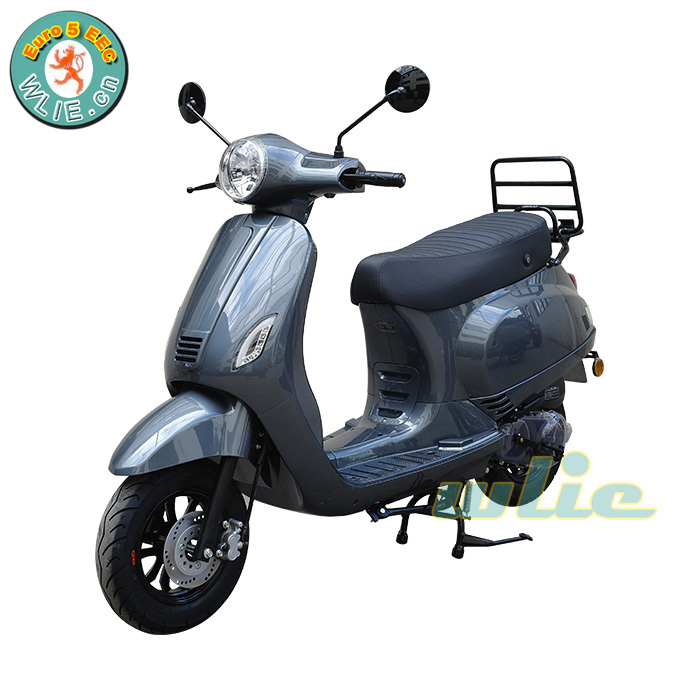

 4. Multi-angle pictures of the product

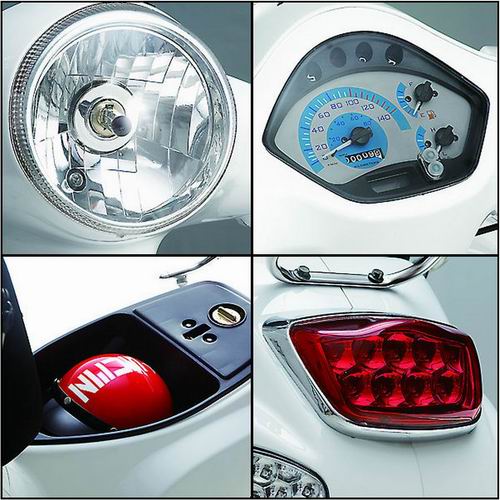

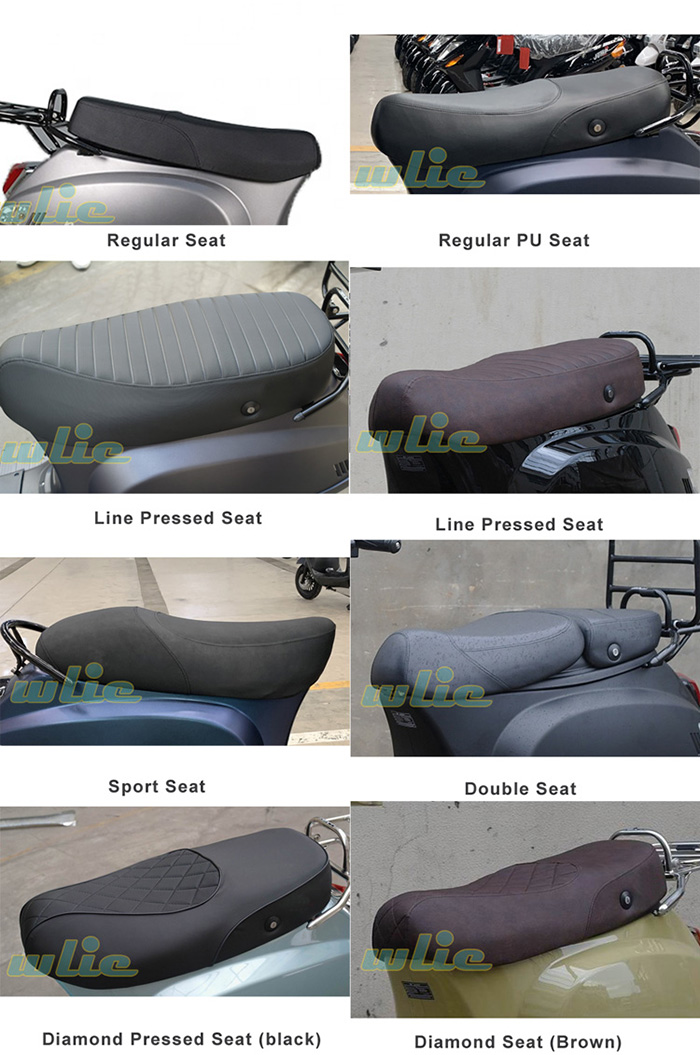

5. Detail photos of the product





6. Product certificate
