E-Car M1(Euro 4)

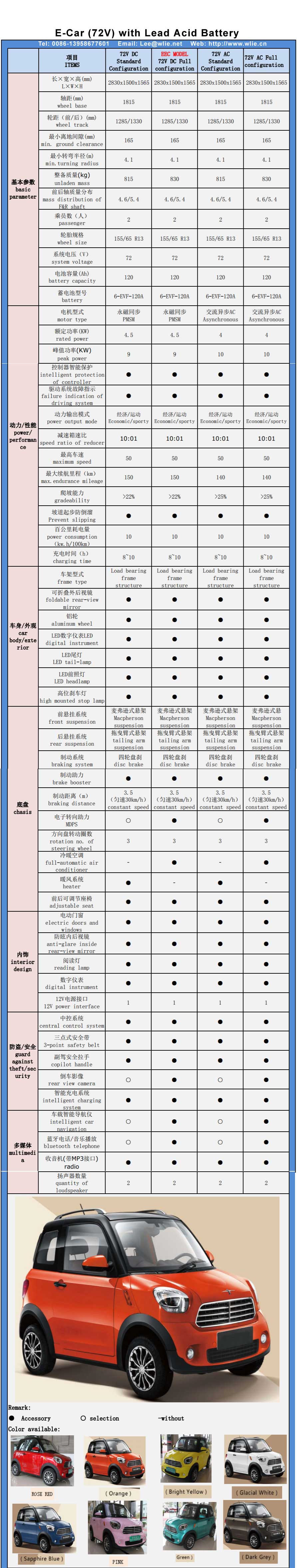

specification
Model:E-Car M1(lead acid)
Battery60V 120AH lead-acid battery
Motor power:4.5-9KW
Charging time:8-10h
Frame typeLoad bearing frame structure
Number of axles:2
Number of wheels:4
L*W *H:2770*1450*1565mm
Wheelbase1815mm
Track width front:1285mm
Track width rear:1330mm
Min.ground clearance165mm
Min.turning radius4.1m
Unladen mass775kg
Mass distribution of F&R shaft4.6/5.4
Passenger2
Wheel size 155/65 R13
Speed ratio of reducer10:01
Maximum speed:50
Max.endurance mileage120KM
Gradeability>22%
Power consumption10km.h/100km
Front suspensionMacpherson suspension
Rear suspensionTailing arm suspension
Braking systemDisc brake
Braking distance3.5m constant speed
Rotation no.of steering wheel3
Quantity of loudspeaker2

Selling Points of the product

1,It is with EEC Euro 4 certificate

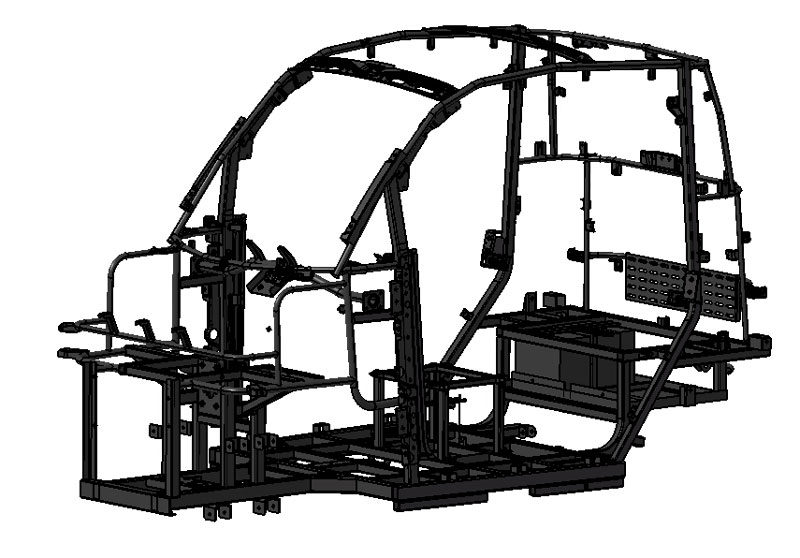

2,high strength frame body design

3,With brilliant  LED lights

4,With internal and external cycle cooling and heating electronic air conditioning

Color sample of the product

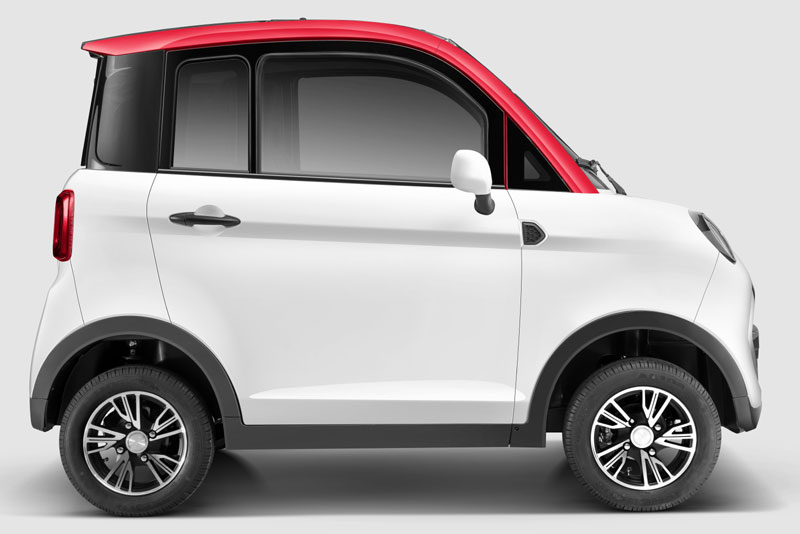

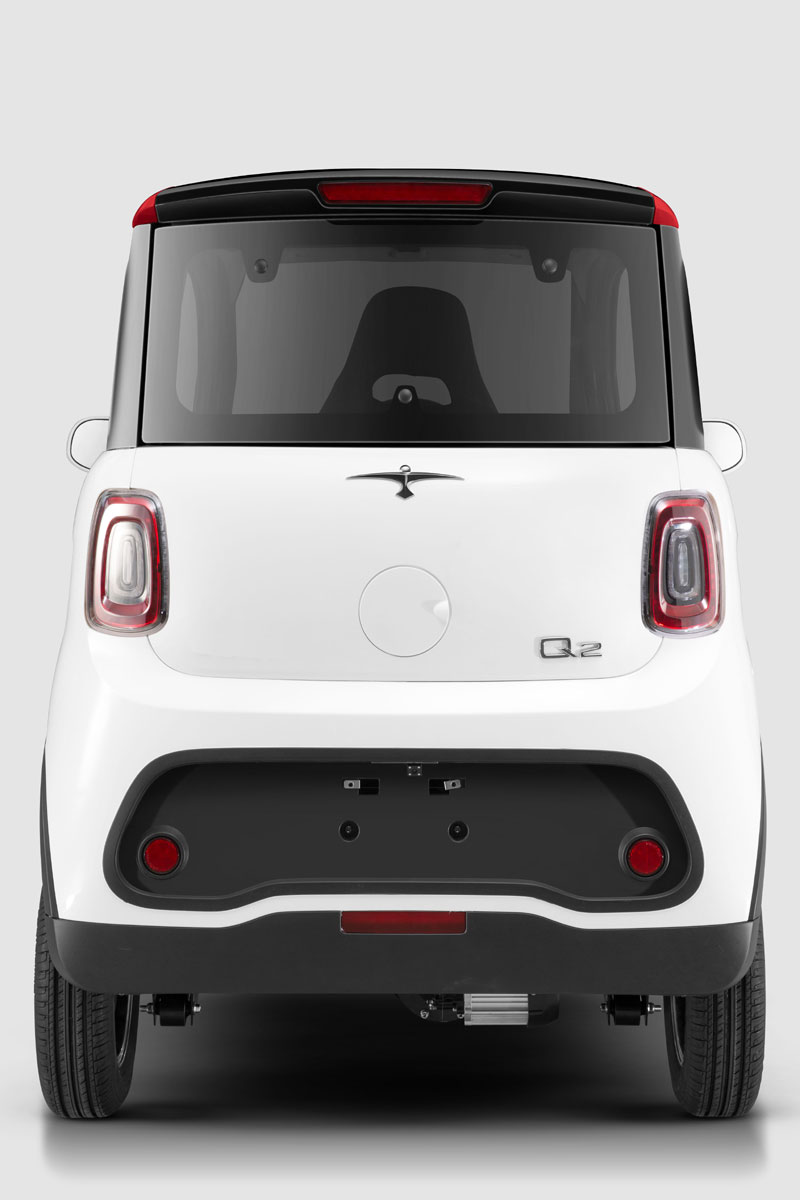

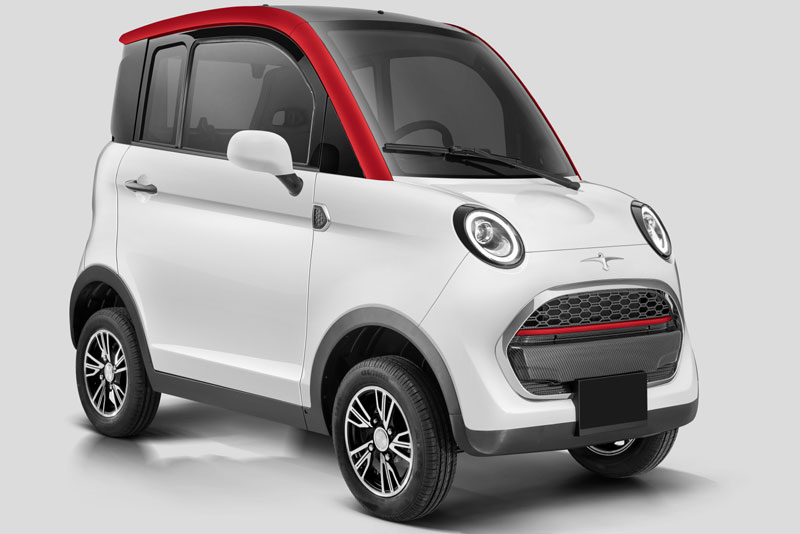

Multi-angle pictures of the product

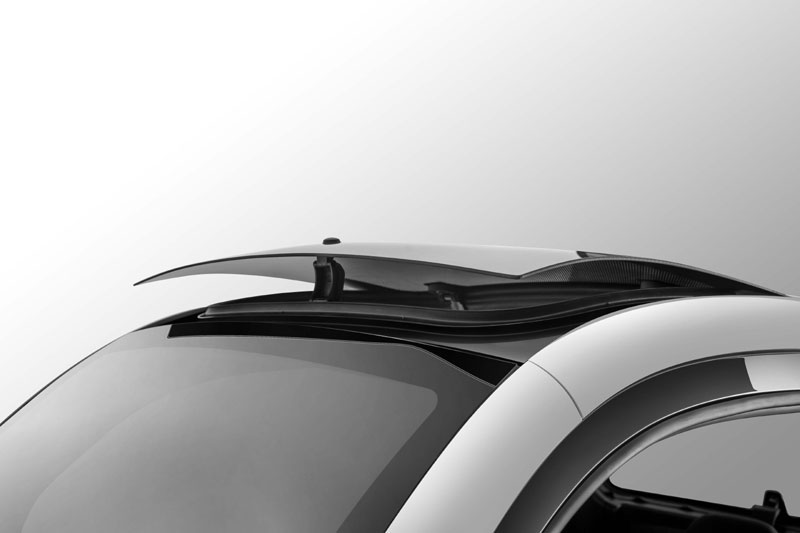

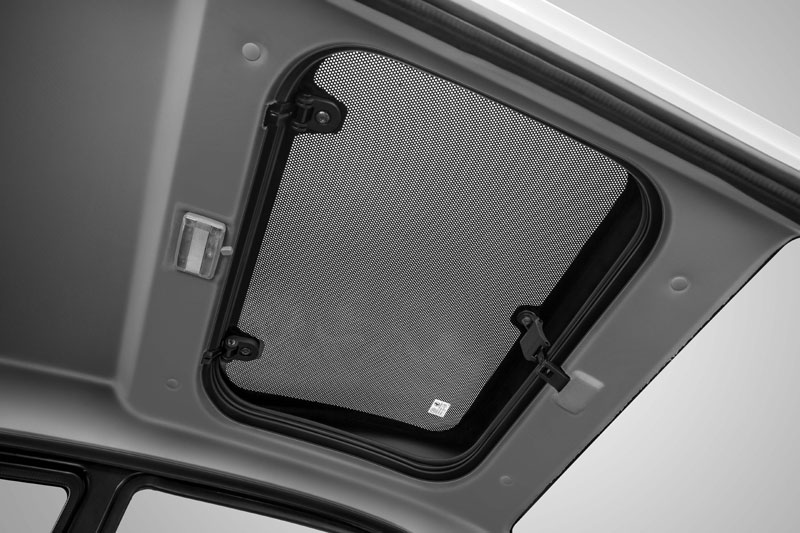

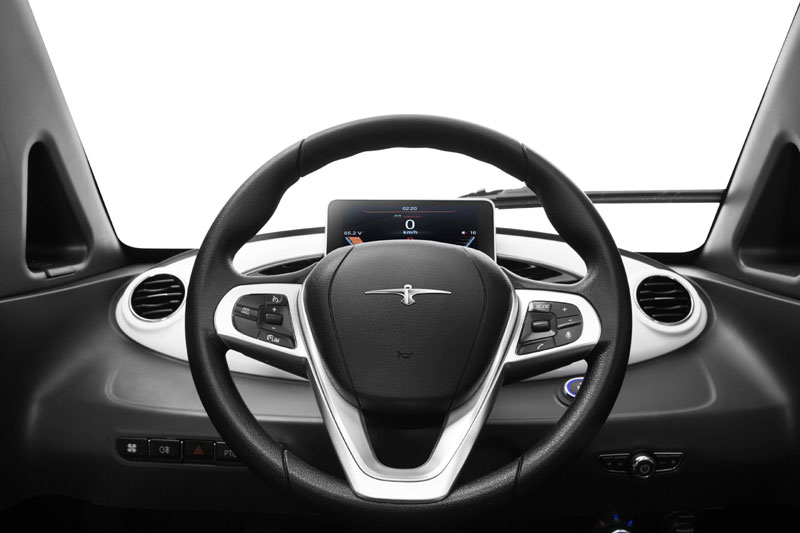

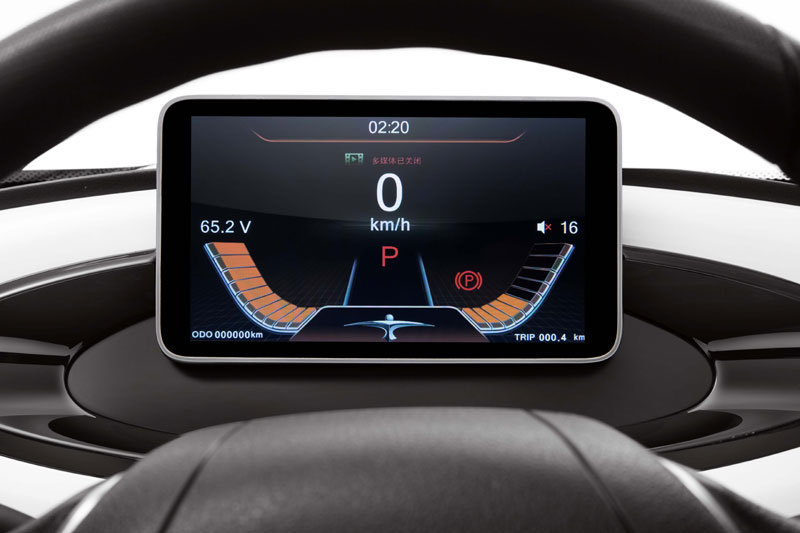

Detail photos of the model
