Q48-1 50cc (Euro 5) Inquiry
Q48-1 50cc (Euro 5)

Product Description
Engine
Type:1 Cylinder, 4 stroke, air cooling
Displacement:48cm3
Bore x Stroke:52.4mm x49.5mm
Compression Ratio:9.1: 1
Max. power (kw/r/min)5.2kw/8000r/min
Max. Torque (N.m/r/min)7.2N.m/5000r/min
Clutch Type: Manual clutch
IgnitionEFI
Starter systemElectric/kick
Transmission SystemChain drive
Chassis
Brake system (front / rear):Drum/drum
Max. speed (km/h):45KM/H
Tire (front / rear):2.25-17 / 2.50-17
Fuel tank capacity (L):13L
Fuel consumption (L/100km):1.8
Dimensions
LxWxH (mm):1860mmx 725mm x1010mm
Seat height (mm):760
Wheel base (mm):1175
Ground clearance (mm):140
Max. loading capacity (kgs):150
Dry weight (kgs):83
Continer loading
Packing Size(mm):1560mm×330mm×820mm
Container Loading(CBU):48 pcs/20GP; 156 pcs/40HQ(CBU)



Selling Points of the product

1. Euro 5 EEC Certificate

2. With 50cc EFI system

3. Very good price with high quality

4. OEM logo and color available

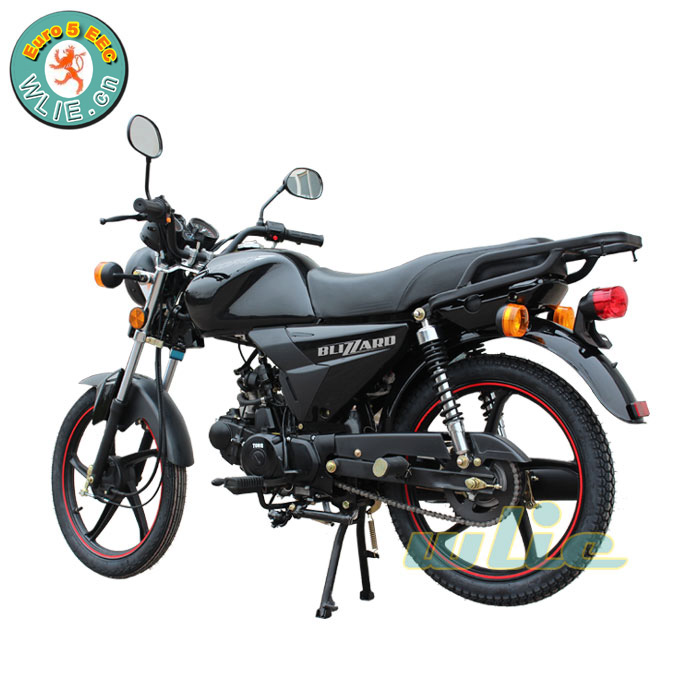

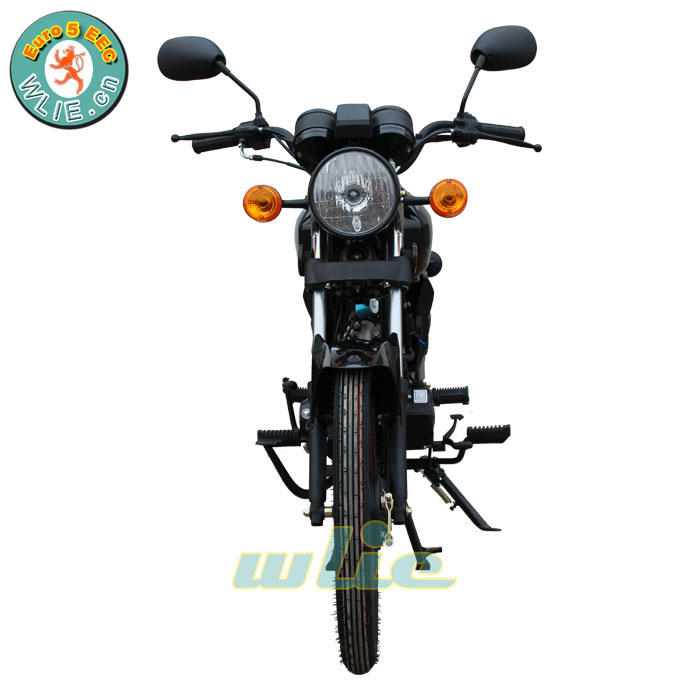

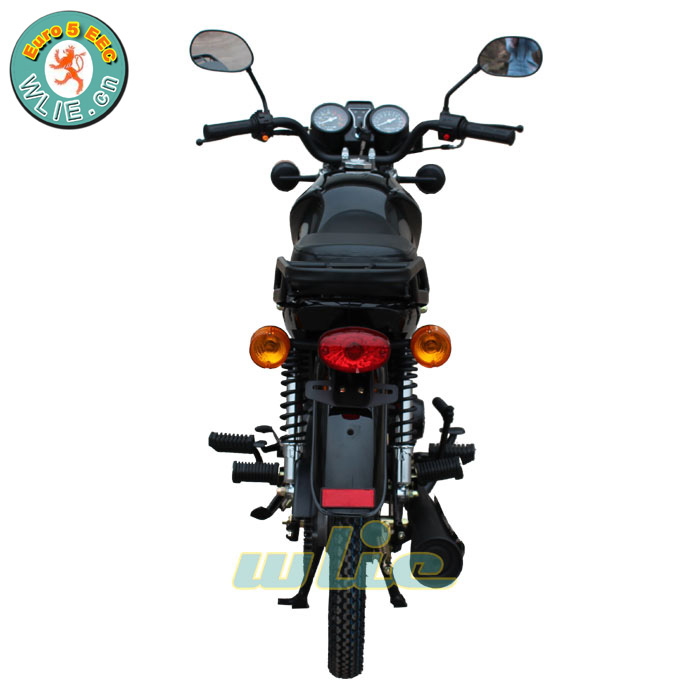

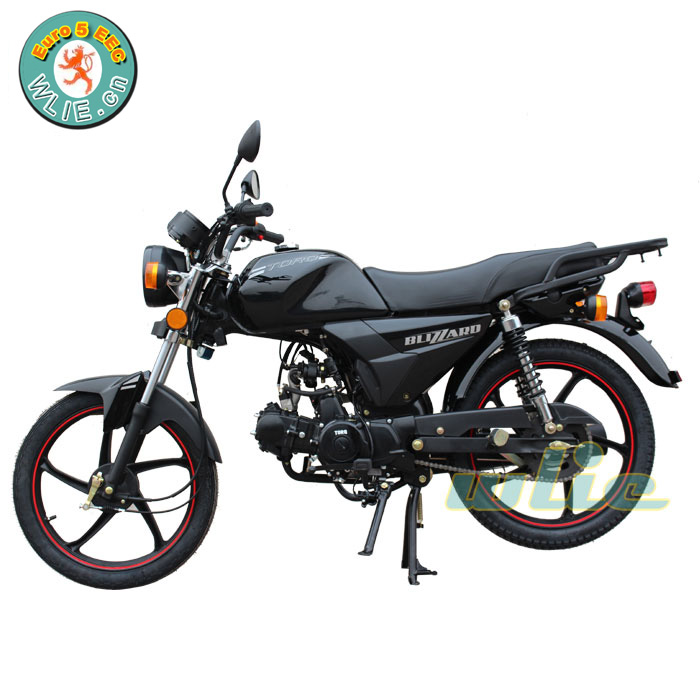

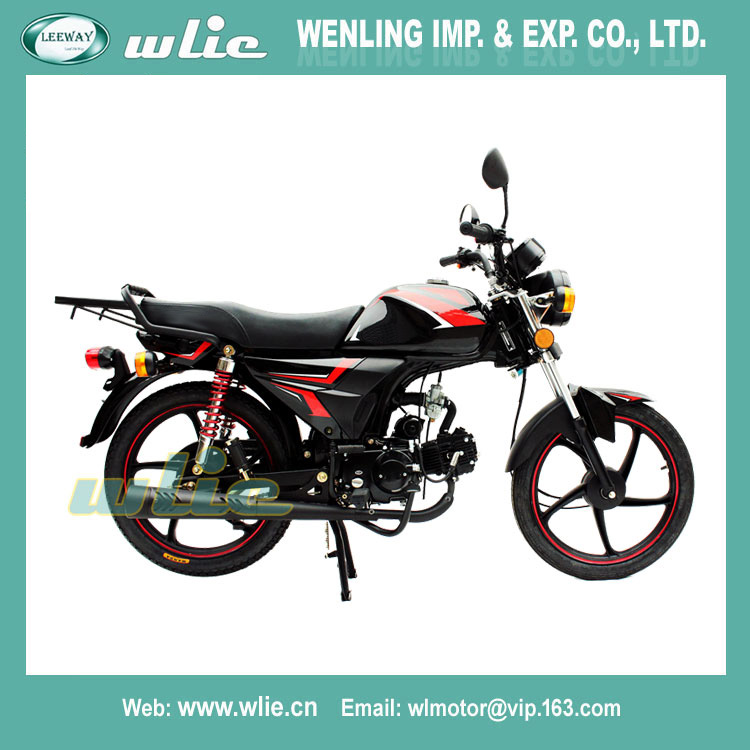

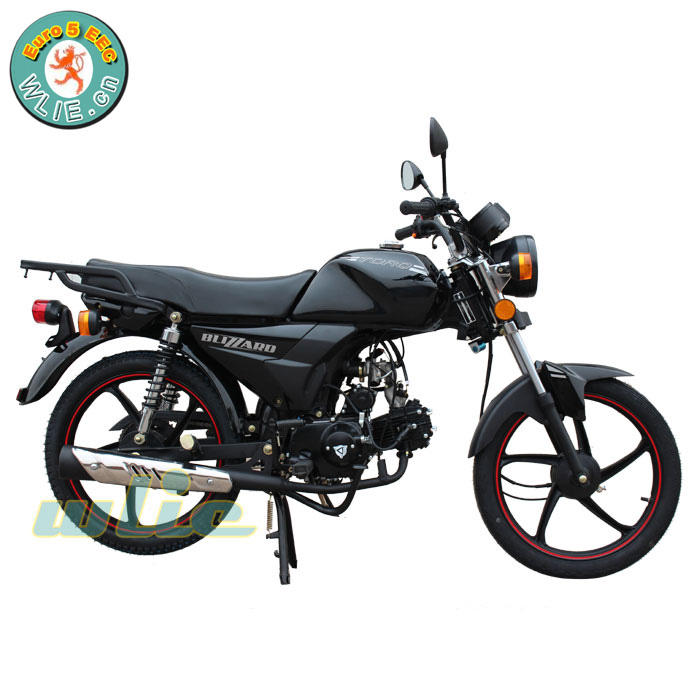

Multi-angle pictures ofthe product

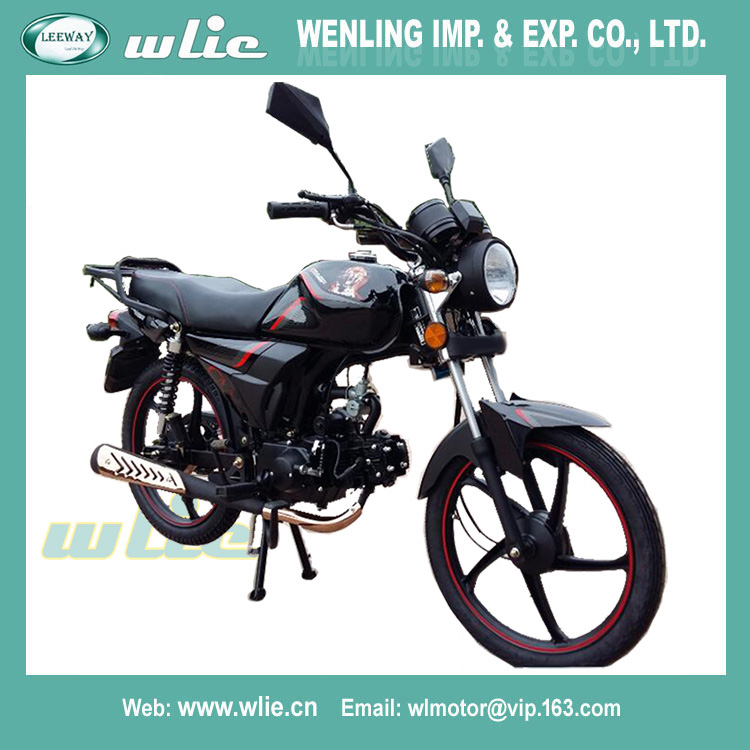

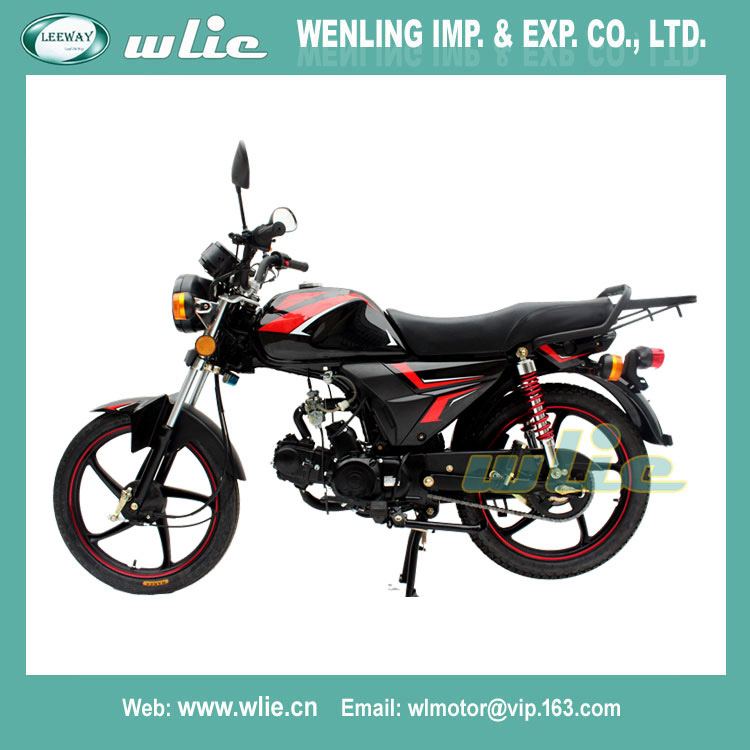

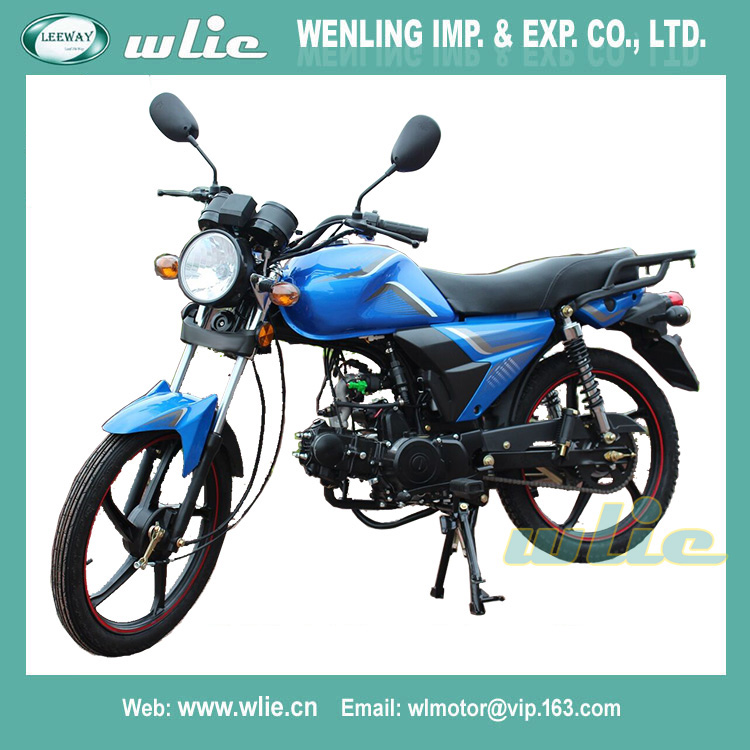

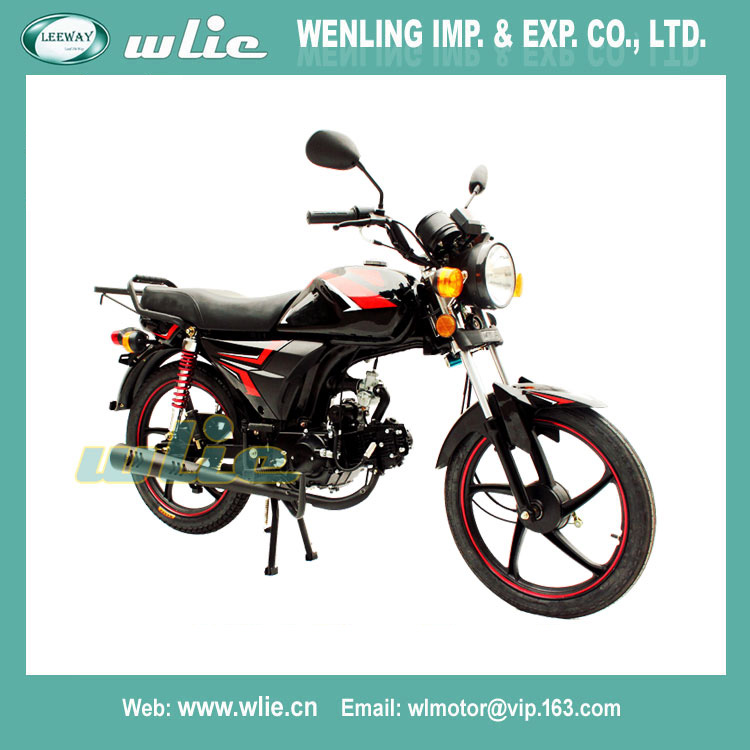

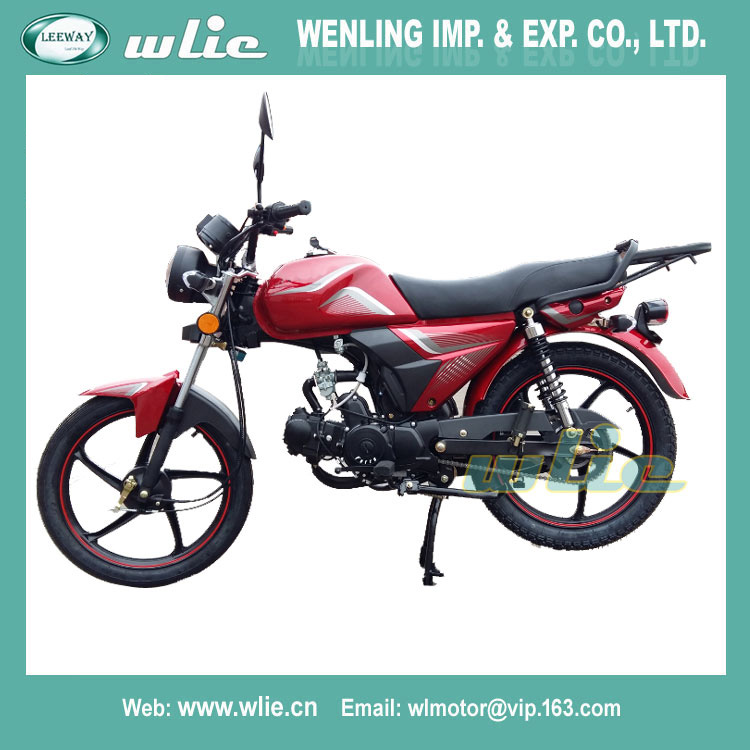

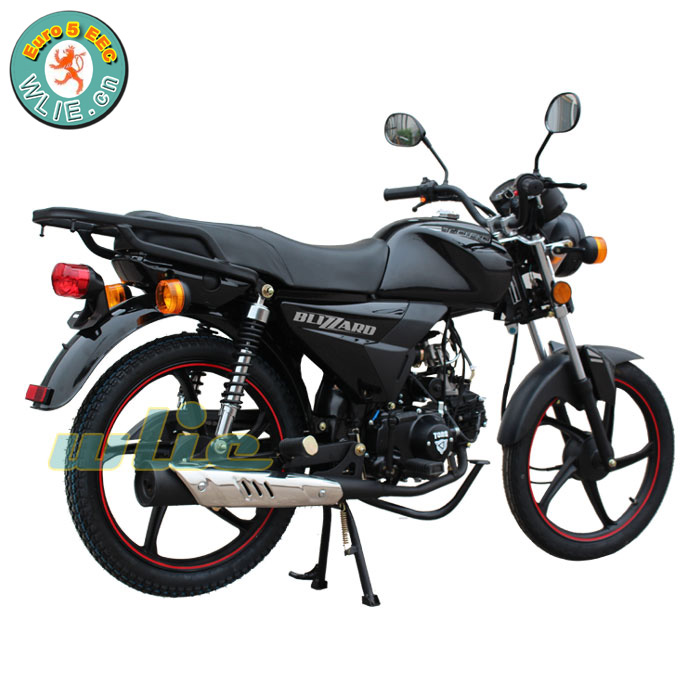

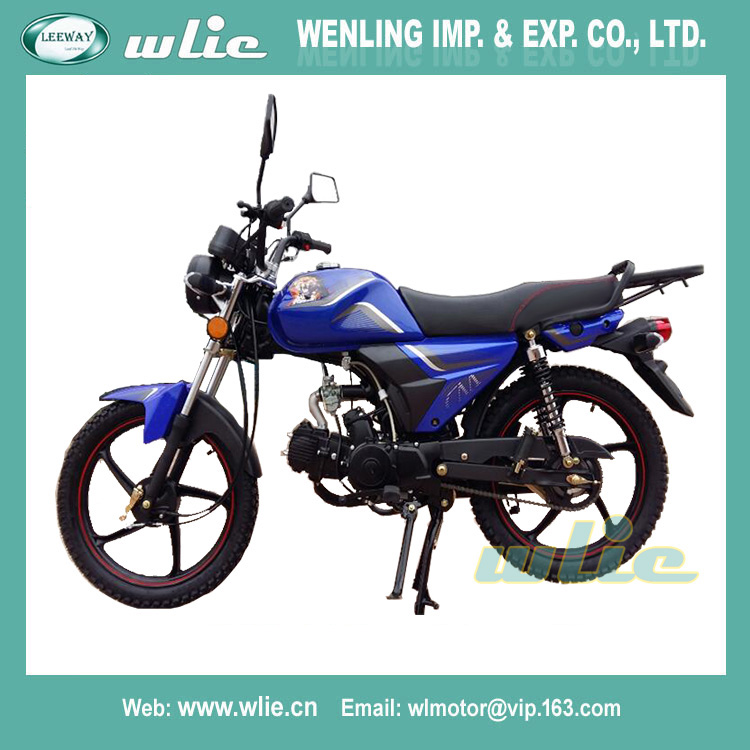

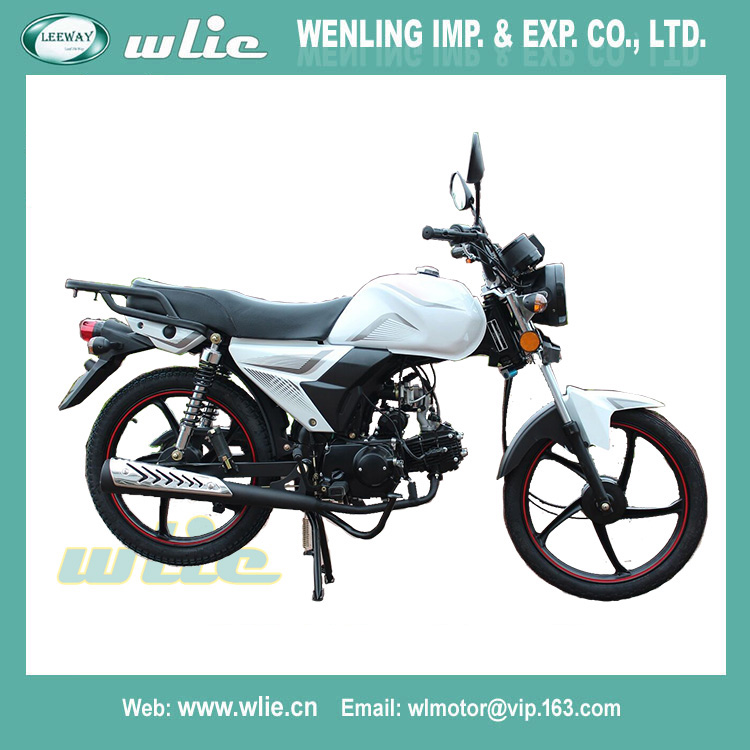

More Pictures

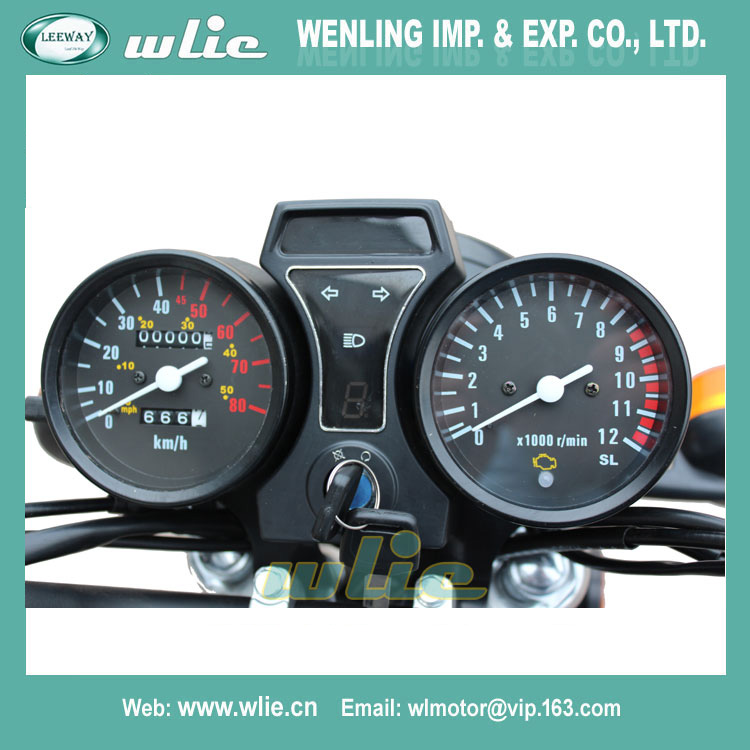

Detail Photos of the model



Product certificate
