PRODUCT

Turtle 125 (Euro 4)
Specifications

L x W x H1890×655×1120mm
Wheelbase1360mm
Dry weight115KG
Suspension/Front Telehydraulic fork,
Suspension/Rear shocker, double
Brakes/Frontdisc
Brakes/Reardrum
Wheels/Front/Rearaluminium, 120/70-12,120/70-12
MufflerIron
Battery12V 7AH
Tank capability6L
Type124.6cc,Four-stroke,
StyleSingle cylinder,  air-cooked
Max Power5.3kW(7500r/min)
Max Torque5.1kW(7000r/min)
Compressio Ratio9.2:1
Bore x stroke52.4mm*57.8mm
IgnitionCDI
Starting SystemElectric / Kick
Economic Fuel consumption ≤2.0L/100km
Max Load150kg
Max speed80km/h
Carton size L/W/H(SKD)1700*575*870mm



Multi-angle pictures of the product





Detail photos of the product

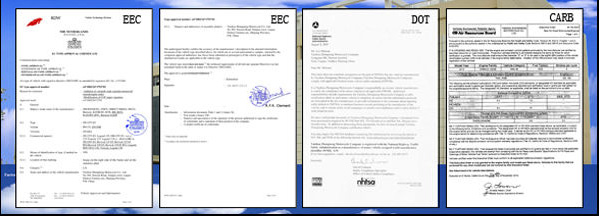

Product certificate
